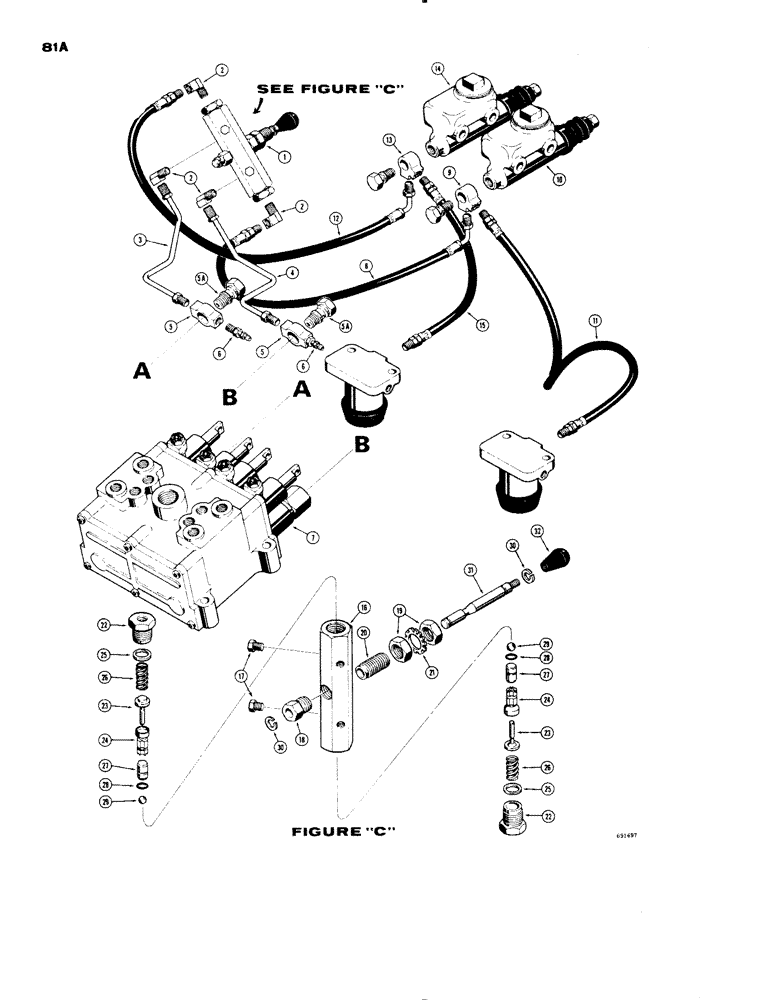

Запчасти Case 1150 (081A) - DECLUTCH LOCKOUT (05) - UPPERSTRUCTURE CHASSIS

1

D49105

VALVE

- lock out, clutch (Parts list below)

1шт.

2

222-1021

ELBOW,90 Degree, 3/8"-24 Inv Fl x 1/8" NPT

- male, 90 deg.

4шт.

3

D49108

TUBE

- brake, L.H.

1шт.

4

D49106

TUBE

- brake, R.H.

1шт.

5

D49114

FITTING

- special

2шт.

5a

A12864

BOLT

- special

2шт.

6

D49104

PLUG

- bleeder

2шт.

7

REF

INSTRUCTION

VALVE - transmission (Parts list Figure 76)

1шт.

8

D45396

HOSE,3.17mm ID x 419.1mm L

- valve to R.H. master cylinder (16-1/2" long)

1шт.

9

51200243

FITTING

TEE - special

1шт.

10

REF

INSTRUCTION

CYLINDER - master, R.H. brake (Parts list Figure 81)

1шт.

11

D49111

HOSE

- master cylinder to slave cylinder, R.H. (25-3/16" long)

1шт.

12

D39836

HOSE,3.17mm ID x 609.6mm L

- valve to L.H. master cylinder (24" long)

1шт.

13

51200243

FITTING

TEE - special

1шт.

14

REF

INSTRUCTION

CYLINDER - master, L.H. brake (Parts list Figure 81)

1шт.

15

D49110

HOSE

- master cylinder to slave cylinders (9-1/2" long)

1шт.

D49105

VALVE

- lock out, declutch, Includes: Ref. 16 - 32

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

17

221-1849

PLUG

- pipe, sq. socket head

2шт.

18

D50018

PLUG

- push rod guide

1шт.

19

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex (5/8" - 11 NC) Zinc plated

2шт.

20

D50017

ADAPTER

- special, push rod

1шт.

21

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

1шт.

22

A16672

PLUG

- special, end

2шт.

23

D46267

STEM

- valve

2шт.

24

D46266

VALVE

2шт.

D49398

KIT

- repair, valve, Includes: Ref. 25 - 32

1шт.

25

D46277

GASKET

- end plug

2шт.

26

A16674

SPRING

- valve

2шт.

27

D50014

PISTON ASSY.

PISTON ASSEMBLY - valve, Includes: Ref. 28

2шт.

28

A16679

O-RING

SEAL - "O"ring

1шт.

29

211-11

BALL,3/8" Dia

- valve, . 3/8" Dia

2шт.

30

D50016

RING, SNAP

RING - retaining

2шт.

31

D50013

PUSH ROD

ROD ASSEMBLY - push, Includes: Ref. 32

1шт.

32

D50015

KNOB

- push rod

1шт.
