Запчасти Case 1150 (106) - TRACK SHOES (04) - UNDERCARRIAGE

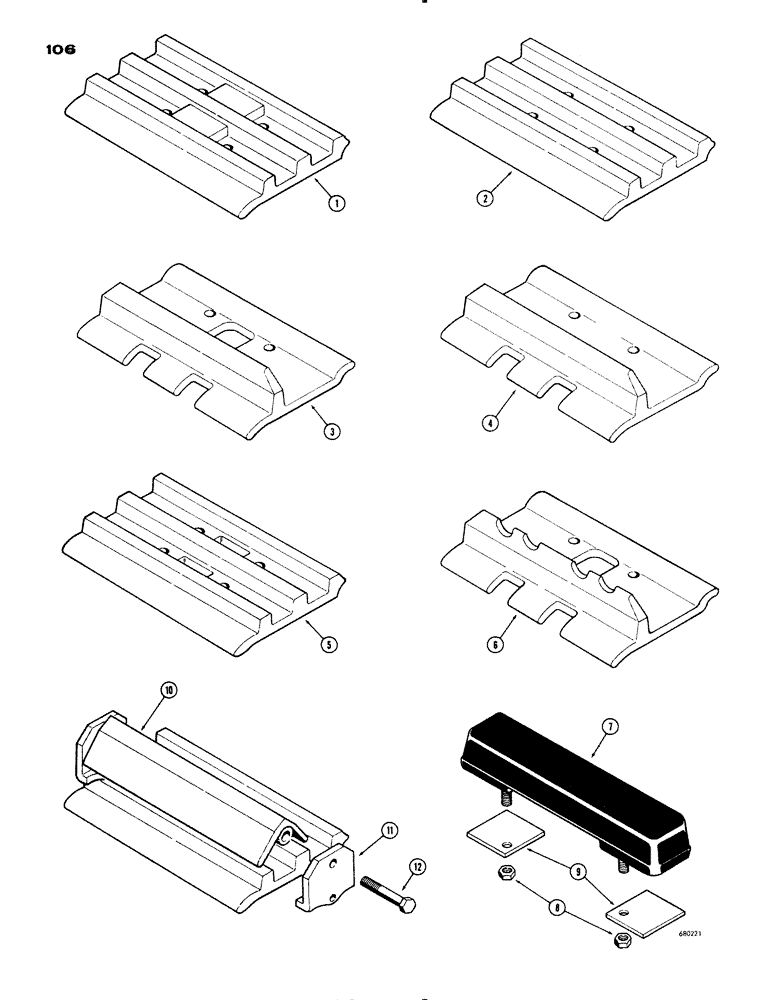

Схема запчастей Case 1150 - (106) - TRACK SHOES (04) - UNDERCARRIAGE
4
9
7
1
10
12
11
2
5
3
6
8

Артикул

Название

Примечание

Количество

D41578

TRACK SHOE

SHOE - track, 10 inch (All models), semi-grouser, mining special

80шт.

2

D41123

PLATE

SHOE - track, 12 inch (All models), semi grouser, closed

80шт.

2

D41124

NO LONGER SERVICED

SHOE - track, 13 inch (All models), semi grouser, closed

80шт.

2

D41125

PLATE

SHOE - track, 15 inch (All models), semi grouser, closed

80шт.

2

D41126

TRACK SHOE

SHOE - track, 16 inch (All models except Loader or Backhoe), semi grouser, closed

80шт.

3

D41146

SHOE - track, 12 inch (All models except Loader), grouser, open center

80шт.

3

D41140

SHOE - track, 13 inch (All models except Loader), grouser, open center

80шт.

3

D41141

SHOE - track, 14 inch (All models except Loader), grouser, open center

80шт.

3

D41142

SHOE - track, 15 inch (All models except Loader), grouser, open center

80шт.

3

D41143

PLATE

SHOE - track, 16 inch (All models except Loader or Backhoe), grouser, open center

80шт.

3

D41144

TRACK SHOE

SHOE - track, 17 inch (All models except Loader or Backhoe), grouser, open center

80шт.

3

D41145

TRACK SHOE

SHOE - track, 18 inch (Drawbar models only), grouser, open center

80шт.

4

D41131

SHOE - track, 12 inch (All models except Loader), grouser, closed

80шт.

4

D41132

TRACK SHOE

SHOE - track, 13 inch (All models except Loader), grouser, closed

80шт.

4

D41133

TRACK SHOE

SHOE - track, 14 inch (All models except Loader), grouser, closed

80шт.

4

D41134

PLATE

SHOE - track, 15 inch (All models except Loader), grouser, closed

80шт.

4

D41135

TRACK SHOE

SHOE - track, 16 inch (All models except Loader or Backhoe), grouser, closed

80шт.

4

D41136

TRACK SHOE

SHOE - track, 17 inch (All models except Loader or Backhoe), grouser, closed

80шт.

4

D41323

PLATE

SHOE - track, 20 inch (Drawbar models only), grouser, closed

80шт.

4

D41138

PAD

SHOE - track, 24 inch (Wide track dozer models only), grouser, closed

80шт.

5

D41116

TRACK SHOE

SHOE - track, 12 inch (All models), semi grouser, open center

80шт.

5

D41117

PLATE

SHOE - track, 13 inch (All models), semi grouser, open center

80шт.

5

D41118

PLATE

SHOE - track, 15 inch (All models), semi grouser, open center

80шт.

5

D41118

PLATE

SHOE - track, 15 inch (All models), semi grouser, open center

80шт.

5

D41121

TRACK SHOE

SHOE - track, 16 inch (All models except Loader or Backhoe), semi grouser, open center

80шт.

6

D41148

X

SHOE - track, 14 inch (All models except Loader), grouser, ice

80шт.

6

D41149

SHOE - track, 15 inch (All models except Loader), grouser, ice

80шт.

6

D41150

TRACK SHOE

SHOE - track, 16 inch (All models except Loader or Backhoe), grouser, ice

80шт.

6

D41151

SHOE - track, 17 inch (Drawbar models only), grouser, ice

80шт.

D13878

RUBBER TRACK SHOE INSTALLATION - used with D41133 and D41134 track shoes only, Includes: Ref. 7 - 8

1шт.

7

70635

SHOE

- track

80шт.

8

131-168

LOCK NUT,1/2"-20, GA

NUT - hex., lock (1/2" - 20 NF)

160шт.

9

R21166

SPACER

- shoe

160шт.

R21513

GROUSER INSTALLATION - clamp-on, 13 inch, Includes: Ref. 10 - 12

10шт.

10

R21514

GROUSER - clamp-on

1шт.

11

R21515

PLATE - end, grouser, clamp on

1шт.

12

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Grouser, clamp on Hex, 5/8"-11 x 3", G5

1шт.

R17483

GROUSER INSTALLATION - clamp-on, 15 inch, Includes: Ref. 10 - 12

10шт.

10

R17480

GROUSER - clamp-on

1шт.

11

72306

SLEEVE

PLATE - end, grouser, clamp on

1шт.

12

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4", grouser, clamp on

1шт.

THERE IS A 18" GROUSER AVAILABLE ORDER D44137.

1шт.

Выбрано товаров: 42
