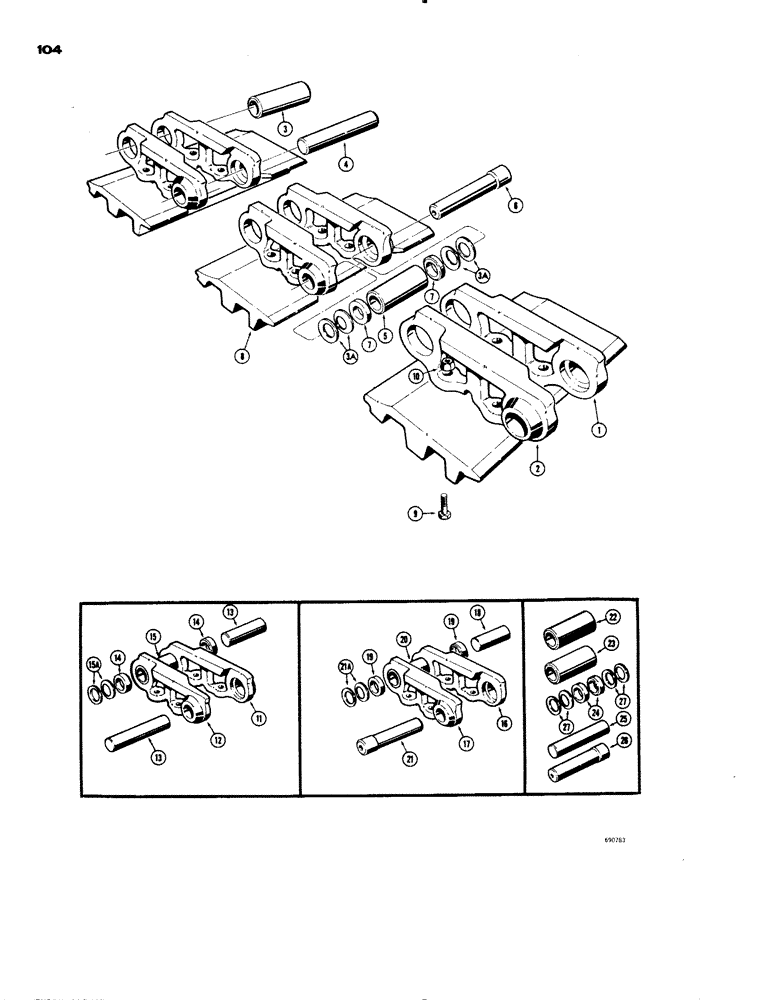

Запчасти Case 1150 (104) - TRACK CHAIN (04) - UNDERCARRIAGE

D39759

X

CHAIN ASSEMBLY - 20 unit (When stock is exhausted, order D45079 20 unit chain assembly for service), Includes: Ref. 1 - 7

4шт.

D45079

CHAIN (AG)

CHAIN ASSEMBLY - 20 unit, sealed track, Includes: Ref. 1 - 7

4шт.

1

D31710

LINK

- track, R.H. (Order D31820 or D45348 track chain unit kit for service)

20шт.

2

D31709

LINK

- track, L.H. (Order D31820 or D45348 track chain unit kit for service)

20шт.

3

R14892

BUSHING

- track, long (D39759 chain assembly only) When stock is exhausted, order 1 - D45075 track bushing and 4 - D45076 seal washers for service

19шт.

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

- track, long (D45079 chain assembly only)

19шт.

3a

D45076

BELLEVILLE SPRING

SEAL - washer (D45079 chain assembly only)

80шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard

19шт.

D32164

PIN

- track, service option (.003" oversize)

19шт.

5

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short

1шт.

6

D36511

PIN

- track, master

1шт.

7

R14898

SPACER

BUSHING - spacer (D39759 chain assembly only) When stock is exhausted, order 1 - D45272 spacer bushing and 2 - D45076 seal washers for service

2шт.

D45272

BUSHING

- spacer (D45079 chain assembly only)

2шт.

8

REF

INSTRUCTION

PLATE - track (See Figure 116 and 118 for options)

80шт.

9

D48004

FLANGE BOLT

BOLT - special

320шт.

10

R17415

LOCK NUT

- lock, special

320шт.

D31820

KIT

- track chain unit (Used on models without sealed track) When stock is exhausted, order D45348 sealed track chain unit kit for service, Includes: Ref. 11 - 15A

76шт.

D45348

KIT

- track chain unit, sealed track, Includes: Ref. 11 - 15A

76шт.

Used to repair an early production unit which does not feature sealed track, 4 - D45076 seal washers cannot be used.

1шт.

11

D31710

LINK

- track, R.H. (Order D31820 or D45348 track chain unit kit for service)

1шт.

12

D31709

LINK

- track, L.H. (Order D31820 or D45348 track chain unit kit for service)

1шт.

13

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard

2шт.

14

R14898

SPACER

BUSHING - spacer (D31820 track chain unit kit only) When stock is exhausted, order 1 - D45272 spacer bushing and 2 - D45076 seal washers for service.

2шт.

D45272

BUSHING

- spacer (D454348 sealed track chain unit only)

2шт.

15

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short

1шт.

15a

D45076

BELLEVILLE SPRING

SEAL - washer (D45348 sealed track chain unit kit only)

8шт.

D38426

KIT

- master chain unit (Used on models without sealed track) When stock is exhausted, order D45350 sealed track master chain unit kit for service., Includes: Ref. 16 - 21A

4шт.

D45350

LINK

KIT - master chain unit, sealed track, Includes: Ref. 16 - 21A

4шт.

Used to repair an early production unit which does not feature sealed track, 4 - D45076 seal washers cannot be used.

1шт.

16

D31710

LINK

- track, R.H. (Order D31810 or D45348 track chain unit kit for service)

1шт.

17

D31709

LINK

- track, L.H. (Order D31820 or D45348 track chain unit kit for service)

1шт.

18

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard

1шт.

19

R14898

SPACER

BUSHING - spacer (D38426 master chain unit kit only) When stock is exhausted, order 1-D45272 spacer bushing and 2 - D45076 seal washers for service

2шт.

D45272

BUSHING

- spacer (45350 master chain unit kit only)

2шт.

21

D36511

PIN

- master

1шт.

21a

D45076

BELLEVILLE SPRING

SEAL - washer (D45350 master chain unit kit only)

8шт.

D37883

PIN

KIT - pin and bushing (Used on models without sealed track) When stock is exhausted, order D45349 sealed track pin and bushing kit for service., Includes: Ref. 23 - 27

1шт.

D45349

KIT

- pin and bushing, sealed track, Includes: Ref. 23 - 27

1шт.

22

R14892

BUSHING

- track, long (D37883 pin and bushing kit only)

1шт.

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

- track, long (D45349 pin and bushing kit only)

76шт.

23

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short

4шт.

24

R14898

SPACER

BUSHING - spacer (D37883 pin and bushing kit only) When stock is exhausted, order 1 - D45272 spacer bushing and 2 - D45076 seal washers for service

8шт.

D45272

BUSHING

- spacer (D45349 pin and bushing kit only)

8шт.

25

D32164

PIN

- track, service option (.003" oversize)

76шт.

26

D43541

PIN

- track, master (.003" oversize)

4шт.

27

D45076

BELLEVILLE SPRING

SEAL - washer (D45349 pin and bushing kit only)

320шт.

19

R14898

SPACER

BUSHING - spacer (D38426 master chain unit kit only) When stock is exhausted, order 1-D45272 spacer bushing and 2 - D45076 seal washers for service

2шт.
