Запчасти Case 1150 (102) - IDLER WHEEL AND TRACK ADJUSTER (04) - UNDERCARRIAGE

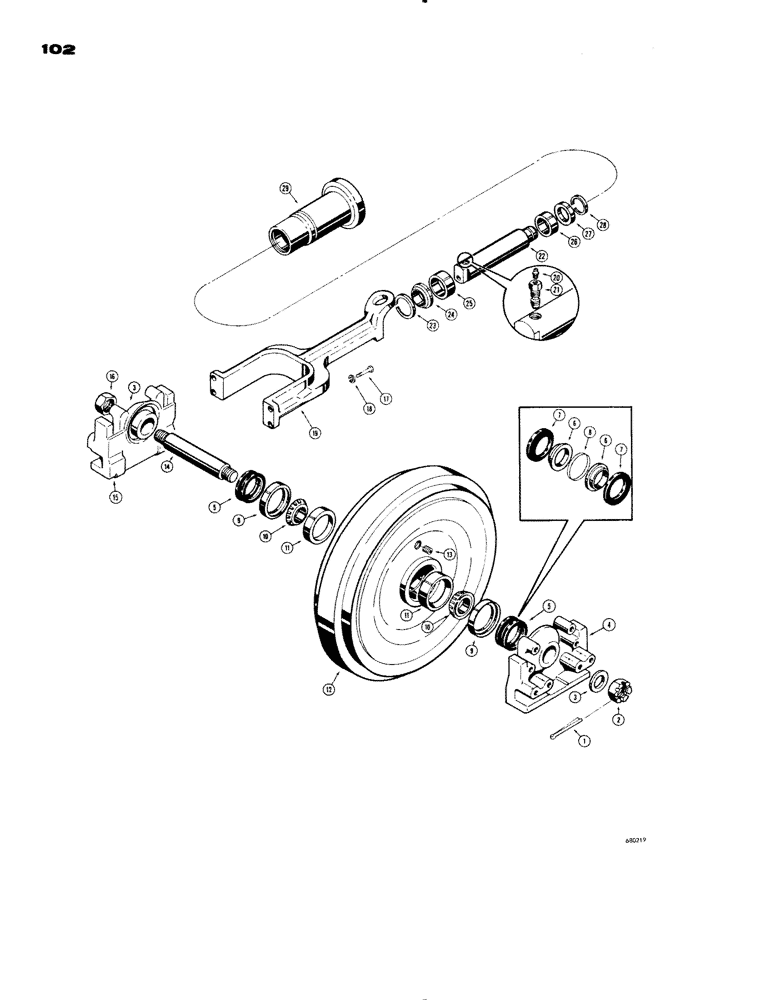

Схема запчастей Case 1150 - (102) - IDLER WHEEL AND TRACK ADJUSTER (04) - UNDERCARRIAGE
11
12
3
9
29
27
18
8
22
11
25
1
10
21
7
23
7
3
9
6
6
17
14
16
2
5
5
4
26
15
10
20
13
28
24
19

Артикул

Название

Примечание

Количество

D43267

FRONT IDLER

IDLER WHEEL AND BRACKET - L.H., Includes: Ref. 1 - 16

1шт.

D43268

X

IDLER WHEEL AND BRACKET - R.H. (Not illustrated), Includes: Ref. 1 - 16

1шт.

1

132-156

PIN

- cotter, 1/4" dia. x 2-1/4"

1шт.

2

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - hex., slotted (1-1/2" - 12 NF)

1шт.

3

D36065

WASHER

- special

2шт.

4

D36066

X

BRACKET - idler wheel, L.H.

1шт.

5

D35267

SEAL

- face, Includes: Ref. 6 - 8

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - repair, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - plastic

2шт.

9

D36069

RING

- seal retaining

2шт.

10

967537R91

BEARING ASSY,53.98mm ID x 30.96mm W

BEARING - cone

2шт.

11

A27732

BEARING CUP

BEARING - cup

2шт.

12

D42886

FRONT IDLER

WHEEL - idler

1шт.

13

221-841

PLUG

- pipe, hex. socket head (1/4" NPT)

1шт.

14

D36068

SHAFT

- idler

1шт.

15

NLS

NO LONGER SERVICED

- idler wheel, R.H.

1шт.

16

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

- hex., lock (1-1/2" - 12 NF)

1шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

8шт.

18

92-8

LOCK WASHER,1/2"

8шт.

19

D36360

YOKE

- front idler wheel

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

21

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - track adjuster

2шт.

D36642

ADJUSTER

TRACK ADJUSTER - hydraulic, Includes: Ref. 22 - 29

2шт.

22

D36361

PISTON

- track adjuster

1шт.

23

D32043

RING

- snap, front (Used with D37798 seal)

1шт.

24

D37798

WIPER

SEAL - wiper (Uses D32043 snap ring)

1шт.

24

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

SEAL - wiper

1шт.

Tube without snap ring groove must use D95149 seal.

1шт.

25

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

- rider

1шт.

26

D30368

BEARING

- backup

1шт.

27

D36971

RING

PACKING - "U" cup (Replaced D95383)

1шт.

28

D23191

SNAP RING,#200, Ext

Ring, Snap, , rear #200, Ext

1шт.

29

D36357

TUBE

- track adjuster

1шт.

Tube without snap ring groove must use D95149 seal.

1шт.

Выбрано товаров: 36
