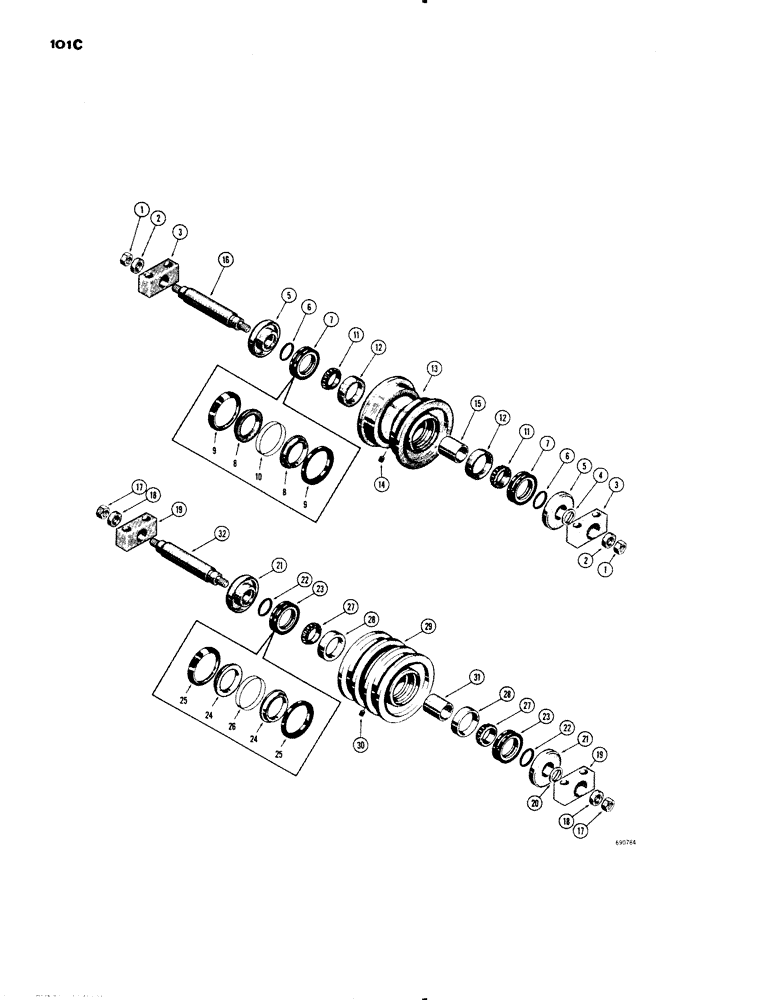

Запчасти Case 1150 (101C) - TRACK ROLLERS, (USED ON MODELS WITH SERIAL NO. 7109590 & AFTER) (04) - UNDERCARRIAGE

D49035

ROLLER

- track, single flange (When stock is exhausted, use R24102 roller), Includes: Ref. 1 - 16

8шт.

R24102

ROLLER

- track, single flange, Includes: Ref. 1 - 16

8шт.

1

280375

NUT,3/4"-10, GC

NUT - hex, lock (3/4" - 10 NC) (Replaced 131-357)

2шт.

2

D44182

WASHER

- special

2шт.

3

D36409

BLOCK

- roller

2шт.

4

D31329

SHIM,.005" Thk

1шт.

5

D45502

BUSHING

- thrust

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring

2шт.

7

D35267

SEAL

- face, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - repair, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - plastic

2шт.

11

D44321

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing

2шт.

12

D44322

BEARING CUP,3.375" OD x 0.9375"

CUP - bearing

2шт.

13

D49034

HUB

- roller, single flange (When stock is exhausted, use R24100 hub)

1шт.

13

R24100

ROLLER

HUB - roller, single flange

1шт.

14

221-841

PLUG

- pipe, hex, socket head (1/4" NPT)

1шт.

15

D44183

SPACER

- bearing

1шт.

16

D44184

SHAFT

- roller

1шт.

D44186

ROLLER

- track, double flange (When stock is exhausted, use R24103 roller), Includes: Ref. 17 - 32

4шт.

R24103

ROLLER

- track, double flange, Includes: Ref. 17 - 32

4шт.

17

280375

NUT,3/4"-10, GC

NUT - hex, lock (3/4" - 10 NC) Replaced 131-357)

2шт.

18

D44182

WASHER

- special

2шт.

19

D36409

BLOCK

- roller

2шт.

20

D31329

SHIM,.005" Thk

1шт.

21

D45502

BUSHING

- thrust

2шт.

22

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O"ring

2шт.

23

D35267

SEAL

- face, Includes: Ref. 24 - 26

2шт.

24

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - repair, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

26

NSS

NOT SOLD SEPARAT

RETAINER - plastic

2шт.

27

D44321

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing

2шт.

28

D44322

BEARING CUP,3.375" OD x 0.9375"

CUP - bearing

2шт.

29

D36465

HUB

- roller, double flange (When stock is exhausted, use R24101 hub)

1шт.

29

R24101

HUB

- roller, double flange

1шт.

30

221-841

PLUG

- pipe, hex., socket head (1/4" NPT)

1шт.

31

D44183

SPACER

- bearing

1шт.

32

D44184

SHAFT

- roller

1шт.
