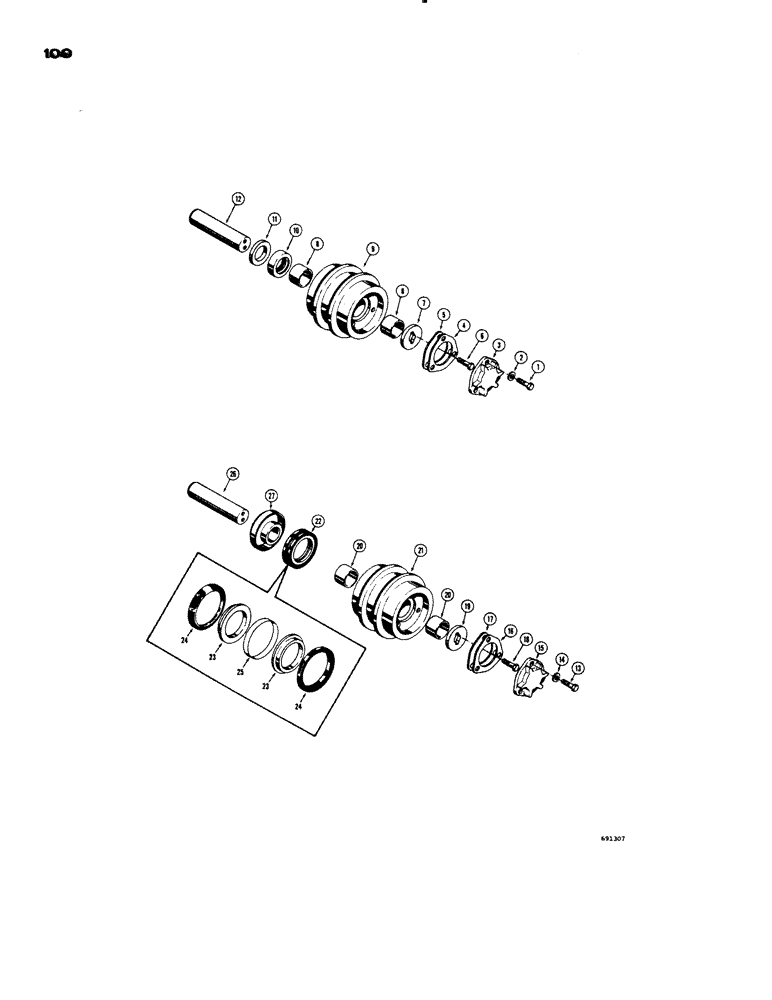

Запчасти Case 1150 (100) - TRACK CARRIER ROLLER (04) - UNDERCARRIAGE

D36354

ROLLER

- track carrier, non-face sealed (When stock is exhausted, use D48684 roller for service), Includes: Ref. 1 - 12

2-4шт.

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

2

D35288

WASHER

- copper

1шт.

3

D30381

COVER

- roller

1шт.

4

D30384

SHIM,.010" Thk

(Brown) .010" Thk

1шт.

5

D30383

SHIM,.005" Thk

(Blue) .005" Thk

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

D30382

WASHER

- thrust

1шт.

8

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

9

D36979

HUB

- roller (Service with D48936 Kit)

1шт.

10

D36394

SEAL

- oil

1шт.

11

D36395

GUARD

SHIELD - seal

1шт.

12

D49100

SHAFT

- roller

1шт.

D48684

ROLLER

- track carrier, face sealed, Includes: Ref. 13 - 27

2-4шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

14

D35288

WASHER

- copper

1шт.

15

D30381

COVER

- roller

1шт.

16

D30384

SHIM,.010" Thk

(Brown) .010" Thk

1шт.

17

D30383

SHIM,.005" Thk

(Blue) .005" Thk

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

19

D30382

WASHER

- thrust

1шт.

20

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

21

D48685

COVER

HUB - roller, Includes: Ref. 22 - 25

1шт.

22

D35267

SEAL

- face

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - repair

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

25

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

26

D49100

SHAFT

- roller

1шт.

27

D35265

COLLAR

BUSHING - thrust

1шт.
