Запчасти Case 1150 (098) - TRACK GUIDES (04) - UNDERCARRIAGE

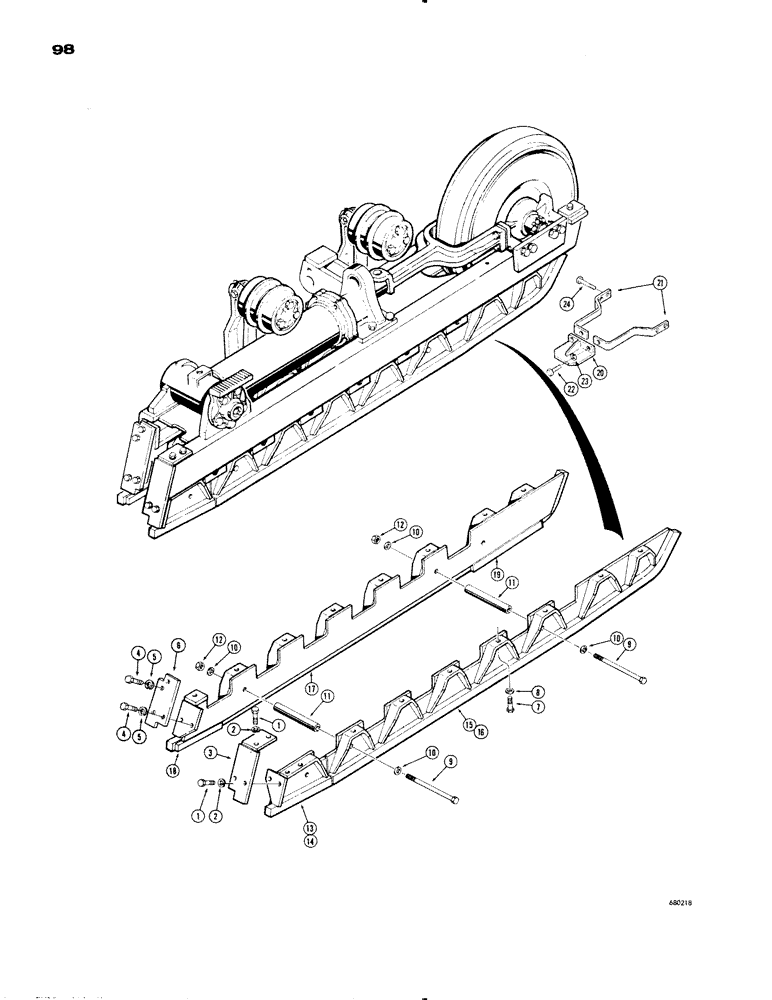

Схема запчастей Case 1150 - (098) - TRACK GUIDES (04) - UNDERCARRIAGE
11
11
21
10
1
22
5
1
10
9
10
20
2
8
17
14
4
19
23
15
9
13
6
10
18
4
5
2
3
24
12
16
12
7

Артикул

Название

Примечание

Количество

1

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

2

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

D35714

GUARD

- rock, outer rear (R.H.)

1шт.

3

D35713

GUARD

- rock, outer rear (L.H.) Not illustrated

1шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

D38476

COVER

GUARD - rock, inner rear

2шт.

7

26-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

34шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

34шт.

9

13-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

4шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

11

D35698

SPACER

- track guides

4шт.

12

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

4шт.

13

D40105

GUARD

TRACK GUIDE - rear, R.H. outer, Includes: Ref. 14

1шт.

14

D40109

STRIP

WEAR STRIP - guide (Not illustrated)

1шт.

13

D40104

GUARD

TRACK GUIDE - rear, L.H. outer (Not illustrated), Includes: Ref. 14

1шт.

14

D40109

STRIP

WEAR STRIP - guide (Not illustrated)

1шт.

15

D38439

GUARD

TRACK GUIDE - front, R.H. outer, Includes: Ref. 16

1шт.

16

D38440

STRIP

WEAR STRIP - guide (Not illustrated)

1шт.

15

D38438

GUARD

TRACK GUIDE - front, L.H. outer (Not illustrated), Includes: Ref. 16

1шт.

16

D38440

STRIP

WEAR STRIP - guide (Not illustrated)

1шт.

17

D40111

GUARD

TRACK GUIDE - R.H. inner, Includes: Ref. 18 and 19

1шт.

18

D40109

STRIP

WEAR STRIP - guide, rear

1шт.

19

D38440

STRIP

WEAR STRIP - guide, front

1шт.

17

D40110

GUARD

TRACK GUIDE - L.H. inner (Not illustrated), Includes: Ref. 18 and 19

1шт.

18

D40109

STRIP

WEAR STRIP - guide, rear (Not illustrated)

1шт.

19

D38440

STRIP

WEAR STRIP - guide, front (Not illustrated)

1шт.

20

D39039

GUARD

- rock

2шт.

21

D38129

STRAP - rock guard

4шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

8шт.
