Запчасти Case 1150 (088) - TRANSMISSION OIL FILTERS (04) - UNDERCARRIAGE

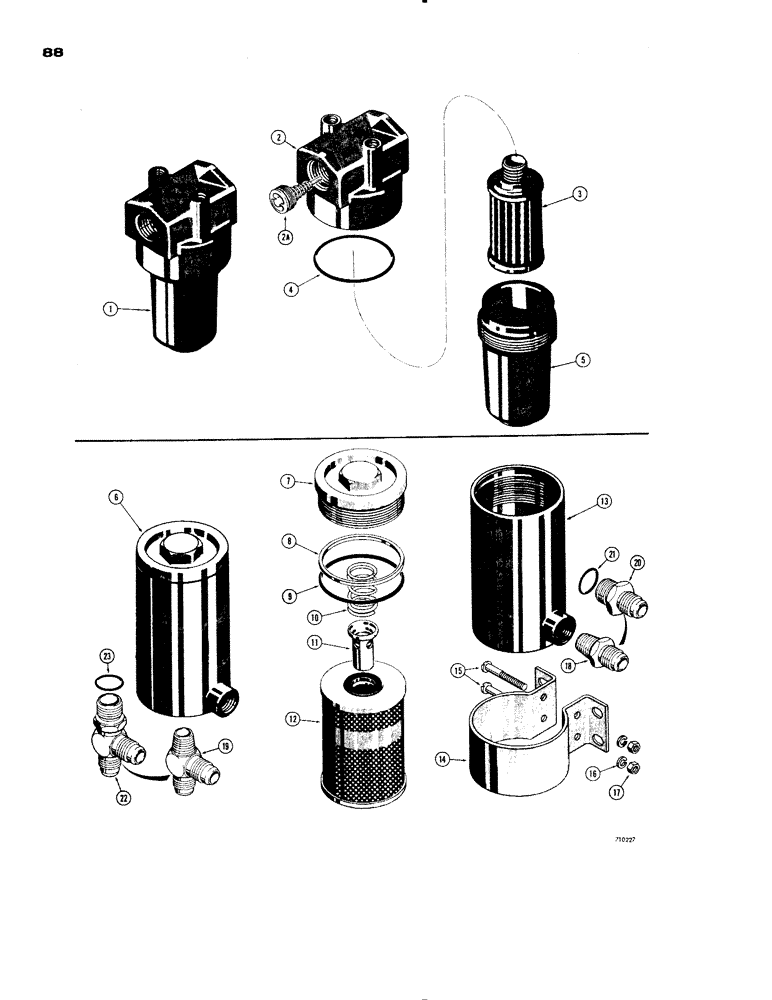

Схема запчастей Case 1150 - (088) - TRANSMISSION OIL FILTERS (04) - UNDERCARRIAGE
6
1
23
20
13
11
14
22
9
4
21
16
8
7
5
17
2a
19
3
12
15
2
10
18

Артикул

Название

Примечание

Количество

1

D43639

FILTER, ENGINE OIL

FILTER - transmission oil (Suction line), Includes: Ref. 2 - 5

1шт.

2

D43798

HEAD

- filter, Includes: Ref. 2A

1шт.

2a

D49376

VALVE

- oil, bypass (3 P.S.I.)

1шт.

D32211

FILTER, ELEMENT

KIT - filter element, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

SCREEN - filter

1шт.

4

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

5

D43799

HOUSING

- filter

1шт.

6

D35153

FILTER

- transmission oil (Pressure line) When stock is exhausted, order one D45336 filter, one 218-5063 connector and one D45618 tee for service., Includes: Ref. 6 - 13 below, Serial Range: -7109360

1шт.

7

D31214

CAP

- filter, Serial Range: -7109360

1шт.

8

D27382

RING

- backup, Serial Range: -7109360

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, Serial Range: -7109360

1шт.

10

D31212

SPRING

- retaining, Serial Range: -7109360

1шт.

11

D37207

VALVE

- relief, Serial Range: -7109360

1шт.

12

A61235

KIT

ELEMENT - filter (Replaced D45378), Serial Range: -7109360

1шт.

REPLACED BY A62871.

1шт.

13

D35143

BODY

- filter, Serial Range: -7109360

1шт.

14

D31217

BRACKET

- filter, D35153 transmission oil, (pressure line), Serial Range: -7109360

1шт.

15

75-544

RHMS - 5/16" - 18 NC x 2-3/4", D35153 transmission oil filter (pressure line), Serial Range: -7109360

2шт.

16

92-5

LOCK WASHER,5/16"

med sect., D35153 transmission oil filter (pressure line) 5/16", Serial Range: -7109360

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC), D35153 transmission oil filter (pressure line), Serial Range: -7109360

2шт.

18

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight, D35153 transmission oil filter (pressure line), Serial Range: -7109360

1шт.

19

D35964

TEE - special, D35153 transmission oil filter (pressure line), Serial Range: -7109360

1шт.

6

NLS

NO LONGER SERVICED

FILTER - transmission oil (Pressure line), Includes: Ref. 7 - 13 below, Start Serial: 7109360

1шт.

7

D31214

CAP

- filter, Start Serial: 7109360

1шт.

8

D27382

RING

- backup, Start Serial: 7109360

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, Start Serial: 7109360

1шт.

10

D31212

SPRING

- retaining, Start Serial: 7109360

1шт.

11

D37207

VALVE

- relief, Start Serial: 7109360

1шт.

12

A61235

KIT

ELEMENT - filter, Start Serial: 7109360

1шт.

REPLACED BY A62871.

1шт.

13

D45333

BODY

- filter, Start Serial: 7109360

1шт.

14

D47871

BRACKET

- filter, D45336 transmission oil, (pressure line), Start Serial: 7109360

1шт.

15

75-544

RHMS - 5/16" - 18 NC x 2-3/4", D45336 transmission oil filter (pressure line), Start Serial: 7109360

2шт.

16

92-5

LOCK WASHER,5/16"

D45336 transmission oil filter (pressure line) 5/16", Start Serial: 7109360

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC), D45336 transmission oil filter (pressure line), Start Serial: 7109360

2шт.

20

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Includes: Ref. 21, D45336 transmission oil filter (pressure line), Start Serial: 7109360

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D45336 transmission oil filter (pressure line), Start Serial: 7109360

1шт.

22

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

- special, Includes: Ref. 23, D45336 transmission oil filter (pressure line), Start Serial: 7109360

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D45336 transmission oil filter (pressure line), Start Serial: 7109360

1шт.

Выбрано товаров: 39
