Запчасти Case 1150 (075A) - FINAL DRIVE, 1ST USED TRANS. SN2663630 (04) - UNDERCARRIAGE

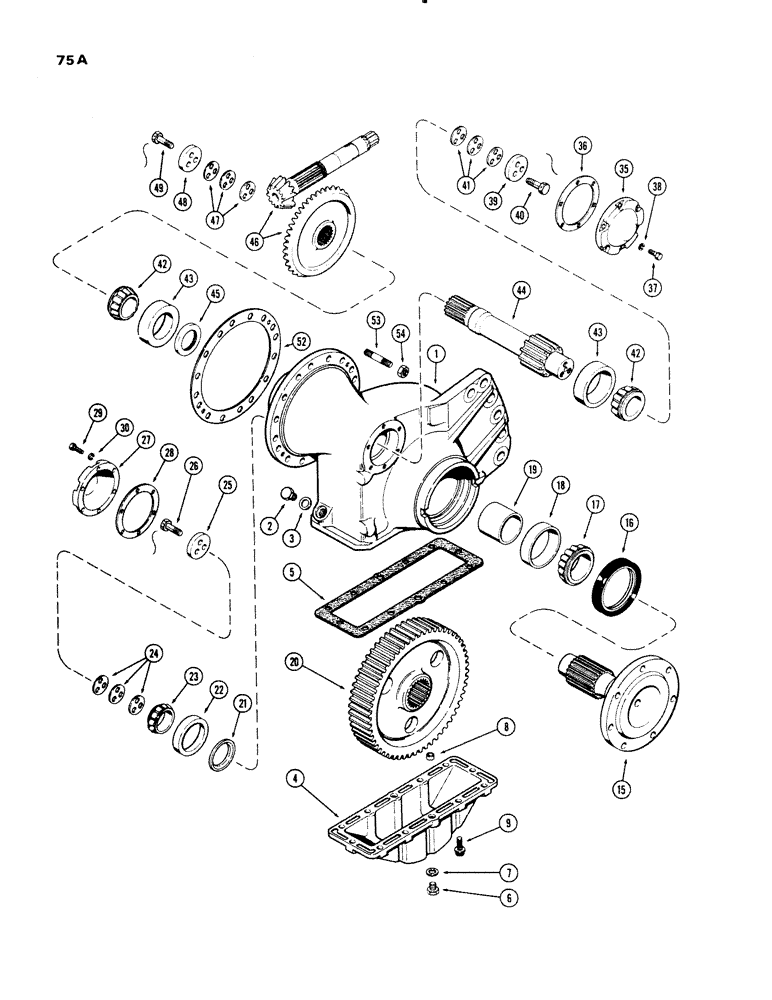

Схема запчастей Case 1150 - (075A) - FINAL DRIVE, 1ST USED TRANS. SN2663630 (04) - UNDERCARRIAGE
46
39
2
41
54
22
9
25
52
43
8
20
36
17
4
6
53
1
7
26
24
16
21
40
28
15
47
42
29
43
5
35
37
30
3
23
42
27
19
44
48
45
18
38
49

Артикул

Название

Примечание

Количество

A50526

HOUSING

DRIVE ASSY. - final, R.H., Includes: Ref. 1 - 49

1шт.

A50527

HOUSING

DRIVE ASSY. - final, L.H., Includes: Ref. 1 - 49

1шт.

1

A50524

HOUSING

- final drive, R.H.

1шт.

1

A50525

HOUSING

- final drive. L.H.

1шт.

2

R14777

PLUG

- oil level, drive housing

1шт.

3

A58613

SEALING WASHER

GASKET - oil plug

1шт.

4

A50544

COVER ASSY

COVER - lower, final drive gear

1шт.

5

A50540

GASKET

- drive gear cover

1шт.

6

A14280

PLUG

- drain, gear cover

1шт.

7

A58608

GASKET

- drain plug

1шт.

8

A50011

SLEEVE

- dowel, Serial Range: cover-housing

2шт.

9

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

SCREW - cap, 1/2 x 1-3/4" N.C. 12 pt. Ferry 2

2шт.

9

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

SCREW - cap, 1/2 x 1-1/2" N.C. pt. Ferry

10шт.

15

A50530

SHAFT

- output, final drive

1шт.

16

A50547

SEAL

- oil, output shaft

1шт.

17

A50532

ROLLER BEARING,89.97mm ID x 40.2mm W

CONE - bearing, outer (3-35/64" I.D.)

1шт.

18

A50529

BEARING CUP,147.03mm OD x 32.5mm W

CUP - bearing cone, outer (5-25/32" O.D.)

1шт.

19

A50533

BUSHING

SPACER - outer, output shaft

1шт.

20

A50534

GEAR

- final drive

1шт.

21

A50535

BUSHING

SPACER - bearing, output shaft

1шт.

22

A50528

BEARING CUP

CUP - bearing, inner (4-17/32" O.D.)

1шт.

23

A50536

CONE

- bearing, inner (2-3/4" I.D.)

1шт.

24

R21743

SHIM,.020" Thk

Bearing .020" Thk

1шт.

24

R21742

SHIM,.007" Thk

Bearing .007" Thk

1шт.

24

R21741

SHIM,.005" Thk

Bearing .005" Thk

1шт.

25

A50537

PLATE

- lock, output shaft bearing

1шт.

26

R19888

SCREW

BOLT - lock plate (9/16 x 1-1/4" N.F. hex. drilled)

3шт.

27

A50454

CAP

- bearing, output shaft

1шт.

28

A50339

GASKET

- bearing cap

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

30

92-6

LOCK WASHER,3/8"

6шт.

35

A50453

CAP

- bearing, pinion shaft

1шт.

36

A50340

GASKET

- bearing cap mounting

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

38

92-6

LOCK WASHER,3/8"

Includes: Ref. 39 3/8"

6шт.

39

R19889

PLATE

- lock, final drive shaft bearing

2шт.

49

R19888

SCREW

BOLT - lock plate (9/16 x 1-1/4" N.F..hex. drilled)

3шт.

41

R21743

SHIM,.020" Thk

Lock plate .020" Thk

1шт.

41

R21741

SHIM,.005" Thk

Lock plate .005" Thk

1шт.

41

R21742

SHIM,.007" Thk

Lock plate .007" Thk

1шт.

42

A50320

ROLLER BEARING,2.5" ID x 1.723"

CONE - roller bearing (2-1/2" I.D.)

2шт.

43

A50319

BEARING CUP

CUP - roller bearing cone (4-13/16" O.D.)

2шт.

44

A50538

SHAFT

- bevel gear, final drive

1шт.

45

A50422

OIL SEAL

- oil, pinion shaft, inner

1шт.

46

A50541

GEAR

& PINION - trans. drive (matched set)

1шт.

47

R21743

SHIM,.020" Thk

Bevel gear .020" Thk

1шт.

47

R21741

SHIM,.005" Thk

Bevel gear .005" Thk

1шт.

47

R21742

SHIM,.007" Thk

Bevel gear .007" Thk

1шт.

48

R19889

PLATE

- retaining, bevel gear

1шт.

49

R19888

SCREW

BOLT - lock plate (9/16 x 1-1/4" N.F. hex drilled)

3шт.

50

70821

SHIM

- drive housing to trans. housing (.010" )

1шт.

52

70822

SHIM

- drive housing to trans. housing (.005")

1шт.

53

A50237

STUD

- mounting, drive housing (5/8" N.C. x 2-1/2")

32шт.

54

232-41110

NUT,5/8"-11, GC

NUT - lock, 5/8" N.C. hex

32шт.

Выбрано товаров: 54
