Запчасти Case 1150 (074) - FINAL DRIVE, USED PRIOR TO TRANS. SN2663630 (04) - UNDERCARRIAGE

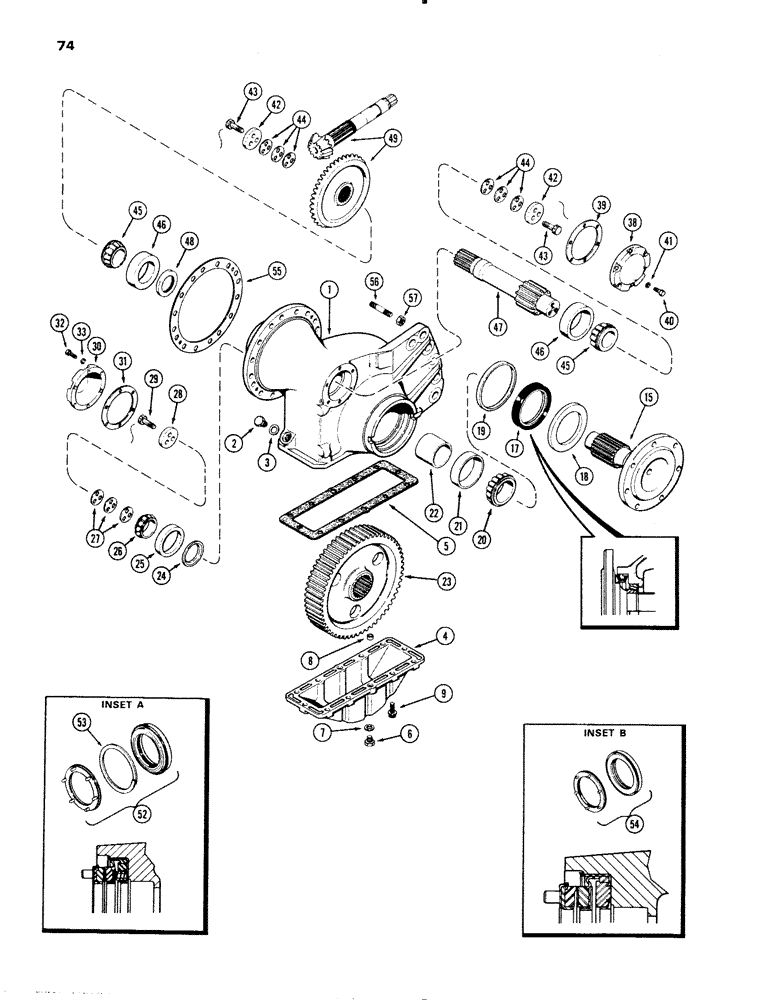

Схема запчастей Case 1150 - (074) - FINAL DRIVE, USED PRIOR TO TRANS. SN2663630 (04) - UNDERCARRIAGE
25
27
46
5
47
41
19
56
8
31
3
45
42
17
21
30
23
49
57
6
48
53
43
52
22
28
2
40
39
18
9
20
42
44
55
33
44
46
24
4
32
54
7
15
38
45
26
1
29
43

Артикул

Название

Примечание

Количество

A50312

X

DRIVE ASSY. - final, R.H. (w/gear & pinion set), Includes: Ref. 1 - 49

1шт.

A50372

X

DRIVE ASSY. - final, R.H. (w/out gear & pinion set), Includes: Ref. 1 - 49

1шт.

A50313

X

DRIVE ASSY. - final, L.H. (w/gear & pinion set), Includes: Ref. 1 - 49

1шт.

A50373

HOUSING

DRIVE ASSY. - final, L.H. (w/out gear & pinion set), Includes: Ref. 1 - 49

1шт.

1

A50316

NO LONGER SERVICED

HOUSING - final drive, R.H.

1шт.

1

A50317

NO LONGER SERVICED

HOUSING - final drive, L.H.

1шт.

2

R14777

PLUG

- filler, drive housing

1шт.

3

A58613

SEALING WASHER

GASKET - filler plug

1шт.

4

A50008

COVER

- final drive gear

1шт.

5

A50009

GASKET

- drive gear cover

1шт.

6

A50014

PLUG

- drain, drive gear cover

1шт.

7

A58608

GASKET

WASHER - drain plug

1шт.

8

A50011

SLEEVE

- dowel, cover

2шт.

9

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

SCREW - cap, 1/2 x 1-3/4" N.C. 12 pt. Ferry

2шт.

9

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

SCREW - cap, 1/2 x 1-1/2: N.C. 12 pt. Ferry

10шт.

15

A50572

SHAFT

- output, final drive

1шт.

A50555

SEAL

KIT - output shaft (See insets for old kits), Includes: Ref. 17 - 19

1шт.

17

A50552

SEAL

- face

1шт.

18

A50553

SEAL

SEAT - face seal

1шт.

19

A50554

SPACER

- face seal

1шт.

20

A50325

CONE

- bearing, outer (3-1/4" I.D.)

1шт.

21

A50324

BEARING CUP

CUP - cone bearing, outer (5-1/4" O.D.)

1шт.

22

A50323

BUSHING

SPACER - final output shaft, outer, Includes: Ref. 23

1шт.

23

A50478

GEAR

- final drive

1шт.

24

A50279

BUSHING

SPACER - final drive output shaft

1шт.

25

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing cone (4-7/16" O.D.)

1шт.

26

A7891

ROLLER BEARING

CONE - bearing, offset roller (2-1/2" I.D.)

1шт.

27

R21743

SHIM,.020" Thk

Bearing .020" Thk

1шт.

27

R21742

SHIM,.007" Thk

Bearing .007" Thk

1шт.

27

R21741

SHIM,.005" Thk

Bearing .005" Thk

1шт.

28

R19889

PLATE

- lock, bearing & bevel gear

1шт.

29

R19888

SCREW

BOLT - lock plate (9/16 x 1-1/4" N.F. hex drilled)

3шт.

30

A50454

CAP

- bearing, final output shaft (Replaces 70280)

1шт.

31

A50339

GASKET

- bearing cap

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

33

92-6

LOCK WASHER,3/8"

6шт.

38

A50453

CAP

- bearing , pinion shaft (Replaces 70278)

1шт.

39

A50340

GASKET

- bearing cap mounting

1шт.

40

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

41

92-6

LOCK WASHER,3/8"

6шт.

42

R19889

PLATE

- lock, final drive shaft

2шт.

43

R19888

SCREW

BOLT - lock plate (9/16 x 1-1/4" N.F, hex, drilled)

6шт.

44

R21743

SHIM,.020" Thk

Lock plate .020" Thk

1шт.

44

R21741

SHIM,.005" Thk

Lock plate .005" Thk

1шт.

44

R21742

SHIM,.007" Thk

Lock plate .007" Thk

1шт.

45

A50320

ROLLER BEARING,2.5" ID x 1.723"

CONE - roller bearing (2-1/2" I.D")

2шт.

46

A50319

BEARING CUP

CUP - roller bearing cone (4-13/16" O.D.)

2шт.

47

A50318

SHAFT

- bevel gear, final drive

1шт.

48

A50422

OIL SEAL

- oil, pinion shaft inner

1шт.

49

A50459

SET

GEAR & PINION SET - transmission and drive (matched set) (Replaces A50364)

1шт.

52

A50545

KIT

SEAL KIT - (Inset A) (Order A50555), Includes: Ref. 53

2шт.

53

A50546

RING

- snap, Serial Range: seal-housing

1шт.

54

A50244

SEAL

KIT - (Inset B) (Order A50555)

2шт.

55

70821

SHIM

- drive housing to trans. (.010")

1шт.

55

70822

SHIM

- drive housing to trans. (.005")

1шт.

56

A50237

STUD

- mounting, drive housing (5/8" N.C. x 2-1/2")

32шт.

57

232-41110

NUT,5/8"-11, GC

NUT - lock, 5/8" N.C. hex

32шт.

Выбрано товаров: 57
