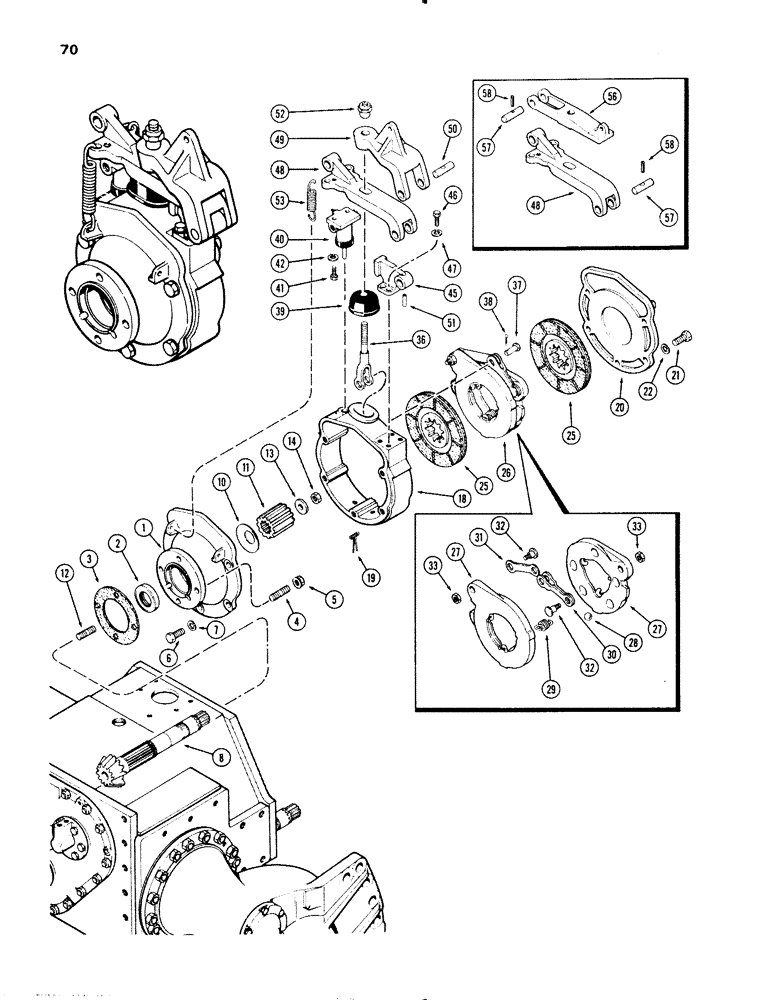

Запчасти Case 1150 (070) - HYDRAULIC BRAKES (04) - UNDERCARRIAGE

1

A50151

MOUNTING PARTS

MOUNT - brake, L.H. & R.H.

2шт.

2

A50425

OIL SEAL

- oil, brake mount, L.H. & R.H.

2шт.

3

R12980

GASKET

- mounting, brake mount

2шт.

4

A50241

STUD

- L.H. & R.H. brake mount

8шт.

5

A37030

FLANGE NUT

- 1/2" N.C. hex (flanged)

8шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

10шт.

7

92-8

LOCK WASHER,1/2"

10шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - bevel pinion (Order from Figure 72)

1шт.

10

R13614

SHIELD

SLINGER - oil, pinion shaft, L.H. & R.H.

2шт.

11

R12613

ADAPTER

- brake disc., L.H. & R. H.

2шт.

12

A50342

STUD

- adapter to pinion shaft (1/2" N.C. x 1-7/8")

2шт.

13

R13347

WASHER

- pinion stud (17/32 x 1-13/32 x 1/4")

2шт.

14

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

18

A50576

HOUSING

- brake, L.H. & R. H. (Replaces R14123)

2шт.

19

R14605

PIN

- cotter, housing cleaner

2шт.

20

R13413

COVER

- brake housing, L.H. & R. H.

2шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Cover Hex, 1/2"-13 x 1 1/4", G5, Full Thd

10шт.

22

92-8

LOCK WASHER,1/2"

10шт.

25

A42783

DISC

- brake (Bonded lining)

2шт.

26

R13352

BRAKE

DISC ASSY. - actuating brake, Includes: Ref. 27 - 33

1шт.

27

NSS

NOT SOLD SEPARAT

DISC - actuating (Order R13352)

2шт.

28

211-19

BALL,7/8" Dia

- . steel 7/8" Dia

5шт.

29

A30897

SPRING

- extension, brake

3шт.

30

A31120

LINK

- straddle, brake

1шт.

31

A31119

LINK

- single, brake

1шт.

32

A31121

STEP BOLT

STUD - link, brake

2шт.

33

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, link stud, 3/8" N.F. hex

2шт.

36

R14125

ROD

- actuating, brake

2шт.

37

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke 1/2", actuating rod

2шт.

38

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

39

A27465

CAP

CUP - dust, brake housing

2шт.

40

A50361

CYLINDER

ASSY. - brake (Repairs Figure 72)

2шт.

41

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

4шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

45

R14120

BRACKET

- brake lever

2шт.

46

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

46

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

47

92-6

LOCK WASHER,3/8"

8шт.

48

R14121

LEVER

- brake, L.H. & R. H.

2шт.

49

A50408

LEVER - hand, brake, L.H.& R.H. (See Ref. 50)

2шт.

50

A50410

PIN

- hand lever to brake lever (3-1/4" long) (used w/A50408 hand lever)

2шт.

51

135-747

GROOVED PIN,3/16" x 1 1/4", Type E

PIN, GROOVED, 3/16" x 1 1/4", Type E

2шт.

52

R21551

LOCK NUT

- lock, 7/16" hex, actuating rod

2шт.

53

R14124

SPRING

- return, brake lever

2шт.

56

R14122

LEVER

- hand, brake, L.H. & R. H. (See Ref. 49)

2шт.

57

R13609

AXLE PIN

PIN - hand lever to brake lever (2-1/4" long)

2шт.

58

135-747

GROOVED PIN,3/16" x 1 1/4", Type E

PIN, GROOVED, , Used w/R13609 pin 3/16" x 1 1/4", Type E

2шт.
