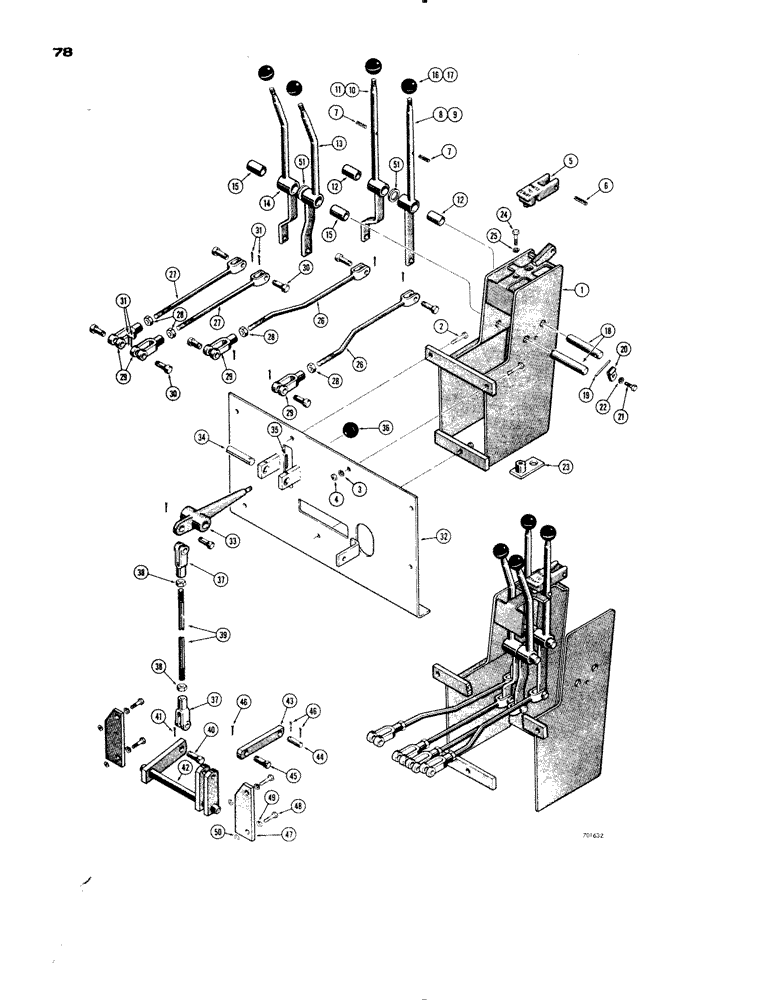

Запчасти Case 1150 (078) - TRANSMISSION CONTROL TOWER (03) - TRANSMISSION

1

D35812

TOWER - control

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

3

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

4

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

3шт.

5

D34891

LOCK

- lever, safety

1шт.

6

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

7

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

8

D35802

X

LEVER - control, track speed (R.H.) 3/8" - 24 NF, Includes: Ref. 12

1шт.

9

D50238

LEVER - control, track speed (R.H.) 1/2" - 20 NF, Includes: Ref. 12

1шт.

10

D35801

X

LEVER - control, track speed (L.H.) 3/8" - 24 NF, Includes: Ref. 12

1шт.

11

D50239

LEVER - control, track speed (L.H.) 1/2" - 20 NF, Includes: Ref. 12

1шт.

12

D40391

BUSHING

- track speed levers

1шт.

13

D35799

LEVER ASSY.

LEVER - control, track forward or reverse (R.H.) 3/8" - 24 NF, Includes: Ref. 15

1шт.

14

D35796

LEVER ASSY.

LEVER - control, track forward or reverse (L.H.) 3/8" - 24 NF, Includes: Ref. 15

1шт.

14

D50242

LEVER

- control, track forward or reverse (L.H.) 1/2" - 20 NF, Includes: Ref. 15

1шт.

15

D40391

BUSHING

- forward or reverse levers

1шт.

16

70213

KNOB

- 3/8" - 24 NF levers

4шт.

17

D49996

KNOB

- 1/2" - 20 NF levers

4шт.

18

D35780

SHAFT

- control lever

2шт.

19

138-106

LOCK PIN,3/16" x 2 1/2", Slotted

PIN, 3/16" x 2 1/2", Slotted

1шт.

20

49851

SHIELD

- roll pin

1шт.

21

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

1шт.

22

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

23

D34923

BRACKET

- push button starter switch

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

25

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

26

D35808

ROD - control, track speed

2шт.

27

D35807

ROD - control, track forward or reverse

2шт.

28

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

29

D35772

YOKE

ROD END - adjustable

4шт.

30

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Rod end 5/16" x .940"

8шт.

31

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

8шт.

32

D42963

PLATE - heel

1шт.

33

R13377

LEVER

- dual range, Hi-Lo

1шт.

34

D29768

SHAFT

- lever

1шт.

35

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN - roll, 3/16" dia. x 1-7/8"

1шт.

36

70213

KNOB

- lever

1шт.

37

D35773

YOKE

ROD END - adjustable

2шт.

38

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock (3/8" - 24 NF)

2шт.

39

D35771

ROD

- dual range

1шт.

40

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Rod end 3/8" x 1.060"

2шт.

41

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

42

D35804

LEVER - dual range

1шт.

43

D35774

LINK - dual range

1шт.

44

35173

PIN

- lever

1шт.

45

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Link 3/8" x 1.060"

1шт.

46

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

47

D35775

BRACKET - lever

2шт.

48

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

49

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

50

D35770

SPACER

- bracket

4шт.

51

195-41

WASHER,5/8"

2шт.
