(077A) - TRANSMISSION CONTROL VALVE

Запчасти Case 1150 (077A) - TRANSMISSION CONTROL VALVE (03) - TRANSMISSION

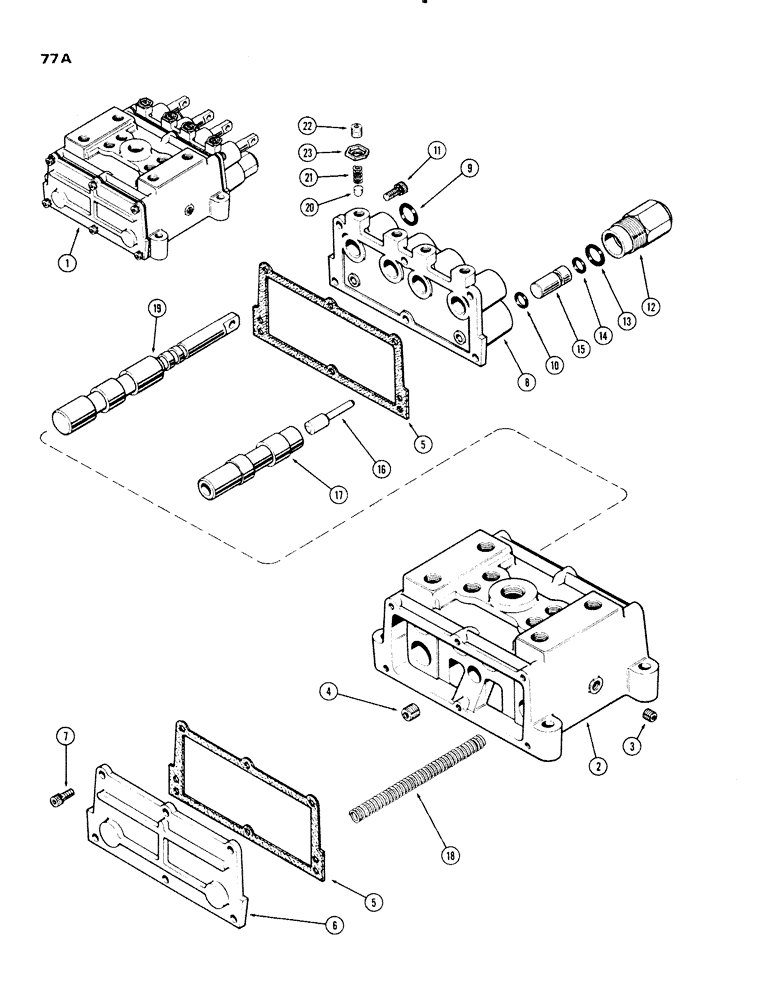

Схема запчастей Case 1150 - (077A) - TRANSMISSION CONTROL VALVE (03) - TRANSMISSION
3
13
18
15
12
5
20
16
5
14
8
4
22
7
6
1
19
10
21
2
9
17
11
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R20723

VALVE

ASSY. - transmission control (4 spool), Includes: Ref. 2 - 23

1шт.

2

R21379

HOUSING

BODY - control valve

1шт.

3

221-1849

PLUG

- pipe, 1/8" hex. sckt. hd.

2шт.

4

221-42

X,Sltd, 1/4" NPT

PLUG - pipe, 1/4" hex. sckt. hd.

1шт.

5

71113

GASKET

- cover, front & rear

2шт.

6

R21380

COVER - rear, control valve

1шт.

7

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW ASSY. - sems. 1/4 x 5/8" N.F. socket hd.

6шт.

8

R13942

COVER

ASSY. - front valve, Includes: Ref. 9 and 10

1шт.

9

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- oil, shifter shaft spool (5/8 x 13/16 x 3/32")

4шт.

10

51200266

SEAL

- oil, brake valve spool (1/4 x 1/2 x 1/8")

2шт.

11

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW ASSY. - sems, 1/4 x 5/8" N.F. socket hd.

6шт.

12

A50455

HOUSING

ASSY. - brake piston (w/S50457 piston), Includes: Ref. 13 below

2шт.

13

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- oil (5/8 x 13/16 x 3/32")

1шт.

12

72989

X

HOUSING ASSY. - brake piston (only w/71129 piston) (when depleted order A50455, A50455 & 71131), Includes: Ref. 13 below

1шт.

13

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- oil, (5/8 x 13/16 x 3/32")

1шт.

14

NLS

NO LONGER SERVICED

"O" RING - oil seal, brake valve (27/64 x 5/8 x 7/64")

2шт.

15

A50457

PISTON

- brake valve (1-19/32" long) (used w/A50455 housing)

2шт.

15

71129

X

PISTON - brake valve (15/16" long) (only w/72989 hsg.) (when depleted order A50445, A50457 & 71131)

1шт.

16

71141

ROD

- push, brake valve

2шт.

17

74916

SPOOL

ASSY. - brake valve

2шт.

18

71125

SPRING

- brake valve spool

2шт.

19

71146

HOSE

ASSY. - valve

4шт.

THE SNAP RING USED IS PART 71144

1шт.

20

71120

VALVE

DETENT - valve spool

4шт.

21

71119

SPRING

- detent spool

4шт.

22

178-655

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, 3/8 x l/2" N.C. sckt. hd. oval pt.

4шт.

23

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

4шт.
