(076) - TRANSMISSION HYDRAULICS

Запчасти Case 1150 (076) - TRANSMISSION HYDRAULICS (03) - TRANSMISSION

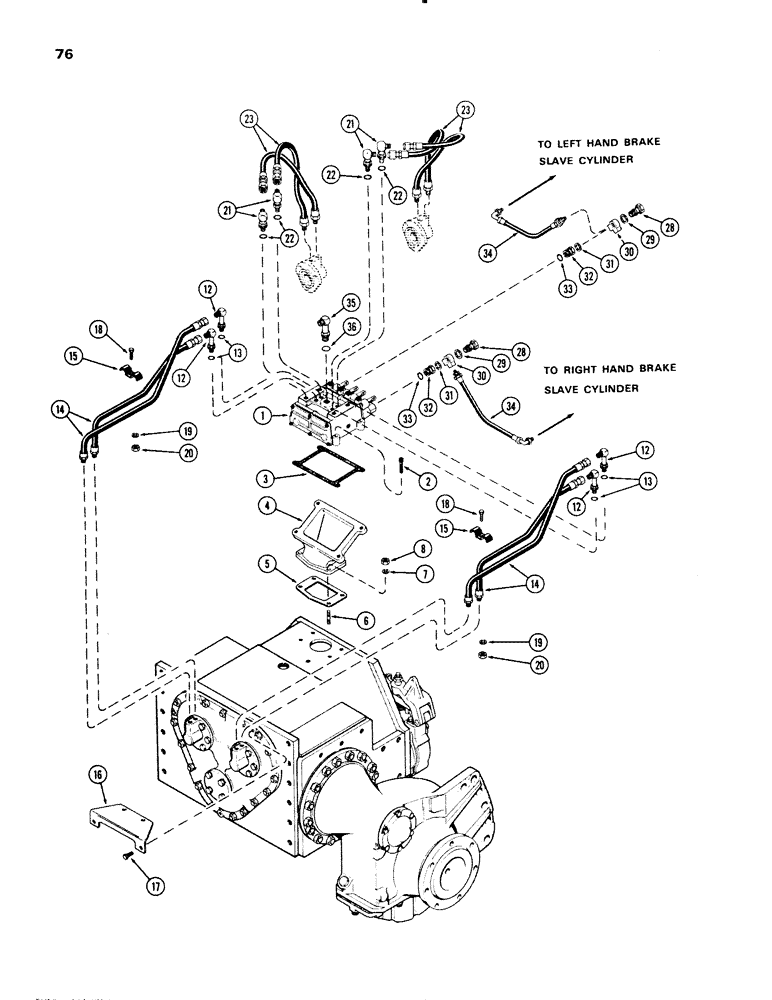

Схема запчастей Case 1150 - (076) - TRANSMISSION HYDRAULICS (03) - TRANSMISSION
20
21
18
31
33
30
15
22
4
34
1
34
33
19
18
16
21
23
12
28
13
19
29
31
22
30
22
28
12
20
14
36
12
8
17
7
23
2
12
32
6
3
15
32
29
13
5
14
35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R20723

VALVE

ASSY. - hydraulic control (Repairs Figure 77A)

1шт.

2

61-632

HEX SOC SCREW,3/8"-16 x 2"

SCREW - cap, 3/8 x 2" N.C. hex sckt. hd.

4шт.

3

A50238

GASKET

- valve mounting

1шт.

4

A50330

NO LONGER SERVICED

BASE - support, control valve

1шт.

5

A50331

GASKET

- valve base mounting

1шт.

6

G11204

STUD

- valve base, 3/8" N.C. x 1-7/16"

4шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

12

R20739

FITTING

ELBOW ASSY. - hose, 90 deg. long adjustable, Includes: Ref. 13

2шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow sealing

1шт.

14

A50297

HYDRAULIC HOSE,6.35 mm ID x 704.80 mm, SAE100R1

6.35 mm ID x 704.80 mm, SAE 100R1, Assy - Valve to rear cover

4шт.

15

A50369

CLAMP

- rear hose retainer

2шт.

16

A50328

BRACKET - hose clamp

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Clamp Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

21

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - hose, 90 deg. short adjustable, Includes: Ref. 22

6шт.

22

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow sealing

1шт.

23

A50329

HOSE

ASSY. - valve to transmission front cover (18-1/2")

4шт.

28

A12864

BOLT

- connecting, brake line fitting

2шт.

29

NLS

NO LONGER SERVICED

- connecting bolt (33/64 x 13/16 x 1/32" copper)

2шт.

30

51200243

FITTING

- brake tube & hose

2шт.

31

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- brake fitting & adapter

1шт.

32

72125

ADAPTER

- connector, Serial Range: bolt-valve

2шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - adapter (41/64 x 13/16 x 5/64")

2шт.

34

A50326

HOSE

ASSY. - brake line, valve to cylinder (16-1/4")

2шт.

35

R20894

FITTING

ELBOW ASSY. - center, 90 deg. long adjustable, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow sealing (3/4 x 15/16 x 3/32")

1шт.
