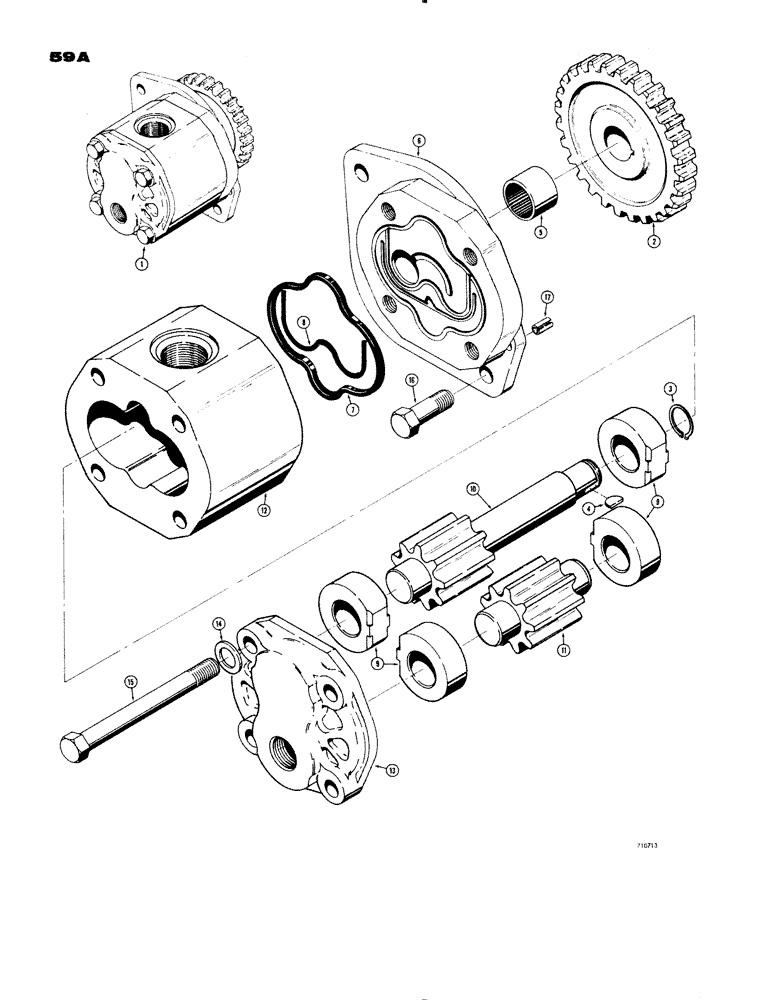

Запчасти Case 1150 (059A) - D49432 TORQUE CONVERTER PUMP (03) - TRANSMISSION

1

D49432

PUMP, HYDRAULIC

PUMP - hydraulic, torque converter charging (Warner Motive #P2-12E-Z-5-5R-01), Includes: Ref. 2 - 15

1шт.

2

D32020

GEAR

- pump drive

1шт.

3

D32101

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

4

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

1шт.

5

T14535

BEARING

- needle

1шт.

6

D52934

COVER - shaft end

1шт.

7

D53279

SEAL

- square type

2шт.

8

D53280

SEAL

- "O"ring type

2шт.

9

D52937

BALL BEARING,0.7505" ID x 1.5385" OD x 0.5795"

BEARING - gear

4шт.

D52936

GEAR

SET - drive and driven, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

12

D52933

HOUSING

- gear

1шт.

13

D52935

COVER

- port end

1шт.

14

195-2028

WASHER,.391" x 5/8" x .065"

- plain, 3/8"

4шт.

15

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

4шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

17

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

2шт.
