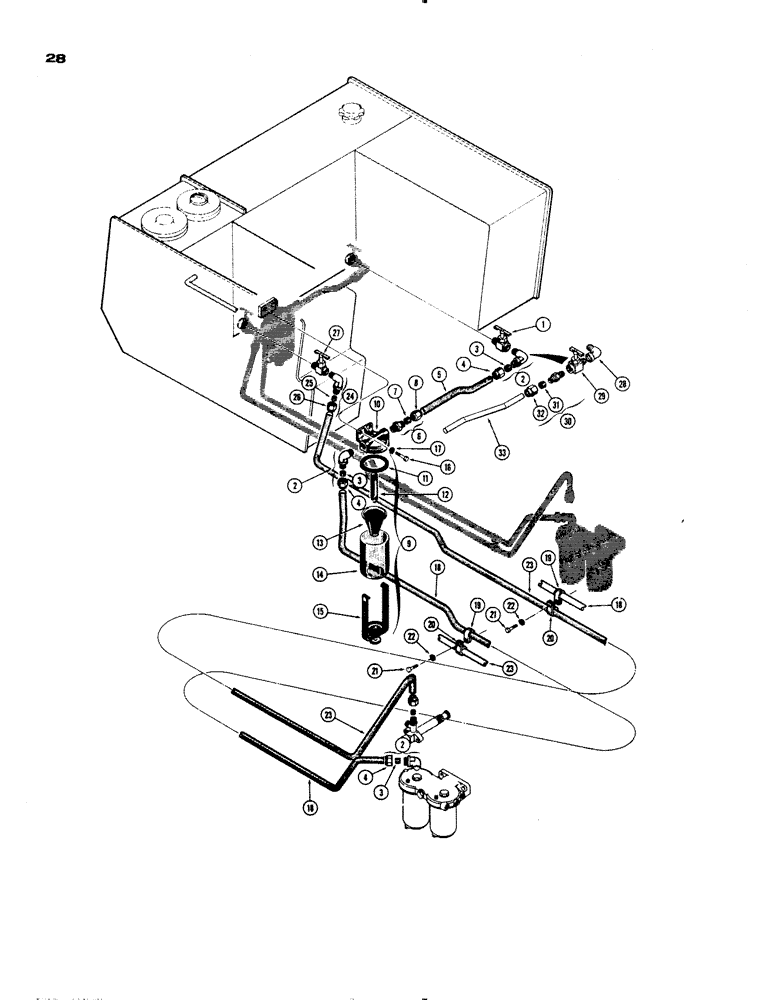

Запчасти Case 1150 (028) - FUEL LINES AND STRAINER (02) - FUEL SYSTEM

1

217-94

SHUT-OFF VALVE

SHUT OFF - fuel, Serial Range: -7109590

1шт.

2

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- flex, male, Includes: Ref. 3 and 4

2-3шт.

3

222-104

SLEEVE,3/8" Tube

- flex tube

1шт.

4

222-114

NUT,5/8"-24

NUT - flex tube

1шт.

5

D35763

TUBE

- tank to strainer, Serial Range: -7109590

1шт.

6

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR - flex, male, Includes: Ref. 7 and 8, Serial Range: -7109590

1шт.

7

222-104

SLEEVE,3/8" Tube

- flex tube

1шт.

8

222-114

NUT,5/8"-24

NUT - flex tube

1шт.

9

R18798

STRAINER ELEMENT

STRAINER - fuel, Includes: Ref. 10 - 15

1шт.

10

R21356

HOUSING

BODY - strainer

1шт.

11

R21357

GASKET

- bowl

1шт.

12

R21360

TUBE,0.687" DIA x 3.344" L

- strainer

1шт.

13

R21359

FILTER SCREEN

SCREEN - strainer

1шт.

14

R21361

BOWL

- strainer

1шт.

15

R21358

CLAMP

BAIL - strainer

1шт.

16

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

D35765

TUBE - suction, 3/8" (Used before engine serial no. 2205978)

1шт.

18

D44650

TUBE

- suction, 3/8" (Used on engine serial no. 2205978 and after)

1шт.

19

49852

PTO SHAFT

- 3/8" tube

2шт.

20

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- 1/4" tube

2шт.

21

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

22

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

23

D35764

TUBE

- return, 1/4"

1шт.

24

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

- flex, male, Includes: Ref. 25 and 26

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT - flex tube

1шт.

27

217-94

SHUT-OFF VALVE

SHUT OFF - fuel

1шт.

28

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 deg. (1/4" NPT), Start Serial: 7109590

1шт.

29

217-94

SHUT-OFF VALVE

SHUT OFF - fuel, Start Serial: 7109590

1шт.

30

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR - flex, male, Includes: Ref. 31 and 32, Start Serial: 7109590

2шт.

31

222-104

SLEEVE,3/8" Tube

- flex male, Start Serial: 7109590

1шт.

32

222-114

NUT,5/8"-24

NUT - flex tube, Start Serial: 7109590

1шт.

33

D48213

TUBE

- tank to strainer (Used with D45336 filter only), Start Serial: 7109590

1шт.
