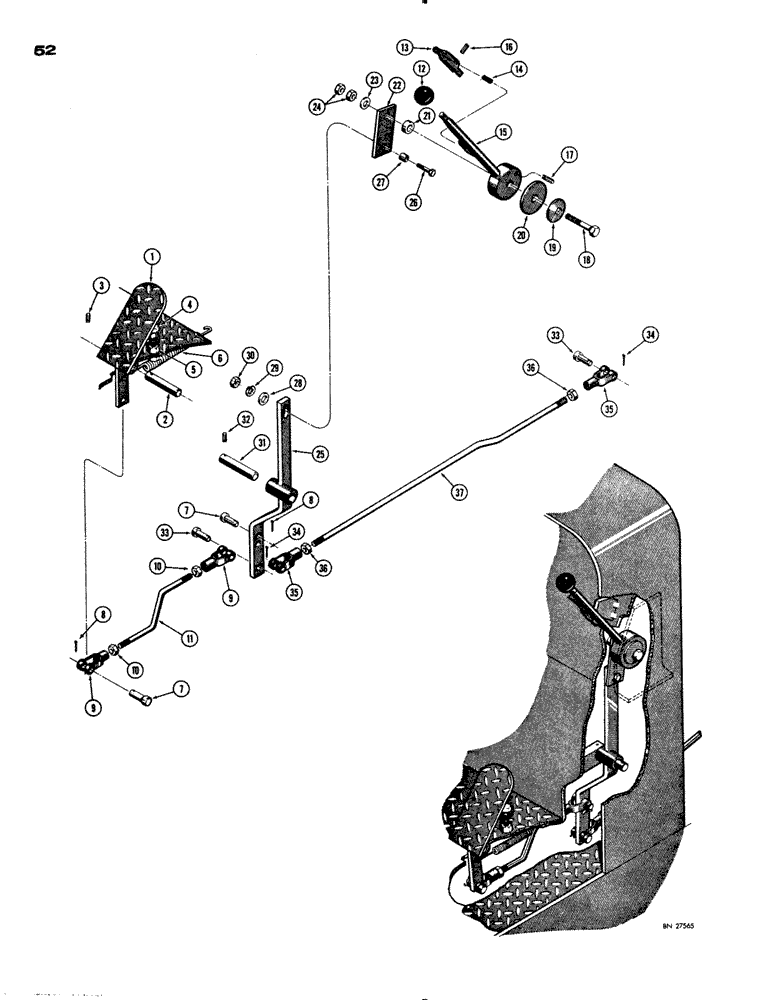

Запчасти Case 1150 (052) - THROTTLE CONTROL LINKAGE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
D35946
PEDAL - accelerator
1шт.
2
R17364
SHAFT
- pedal
1шт.
3
135-737
GROOVED PIN,5/32" x 1", Type E
PIN, GROOVED, 5/32" x 1", Type E
1шт.
4
13-852
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
1шт.
5
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
1шт.
6
11469
SPRING
- pedal return
1шт.
7
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, , Yoke 5/16" x .940"
2шт.
8
132-24
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), 3/32" x 1/2"
2шт.
9
213-3
ADJUSTABLE CLEVIS,5/16"-24
YOKE - adjustable
2шт.
10
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
2шт.
11
D35857
ROD
-, Serial Range: pedal-link
1шт.
12
70213
KNOB
- control
1шт.
14
A8012
SPRING
- throttle
1шт.
15
D35860
LEVER - throttle
1шт.
16
138-91
LOCK PIN,3/16" x 11/16", Slotted
PIN, 3/16" x 11/16", Slotted
1шт.
17
138-132
LOCK PIN,1/4" x 7/8", Slotted
PIN, 1/4" x 7/8", Slotted
1шт.
18
13-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5
Hex, 1/2"-13 x 2 3/4", G5
1шт.
19
R14771
WASHER
- Belleville
1шт.
20
R15071
DISC
- friction
1шт.
21
D35859
SPACER
- throttle link
1шт.
22
D35856
LINK - throttle
1шт.
23
95-8
WASHER,1/2"
- standard wrot 1/2"
1шт.
24
25-108
NUT,1/2"-13, G5
- hex (1/2" - 13 NC)
2шт.
25
D35863
LINK - hand throttle
1шт.
26
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
HHCS - 5/16" - 18 NC x 1-1/4"
1шт.
27
D34162
SPACER
- link
1шт.
28
95-5
WASHER,3/8" x 7/8" x .083"
- standard wrot (5/16")
1шт.
29
92-5
LOCK WASHER,5/16"
med sect. 5/16"
1шт.
30
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
1шт.
31
R17364
SHAFT
- link
1шт.
32
135-737
GROOVED PIN,5/32" x 1", Type E
PIN, GROOVED, 5/32" x 1", Type E
1шт.
33
141-2
CLEVIS PIN,1/4" x .770"
PIN - yoke
2шт.
34
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
2шт.
35
213-2
ADJUSTABLE CLEVIS,1/4"-28 x 2"
YOKE - ajdustable
2шт.
36
25-114
NUT,1/4"-28, G5
- hex (1/4" - 28 NF)
2шт.
37
D35862
ROD
- injection pump
1шт.
Выбрано товаров: 37
