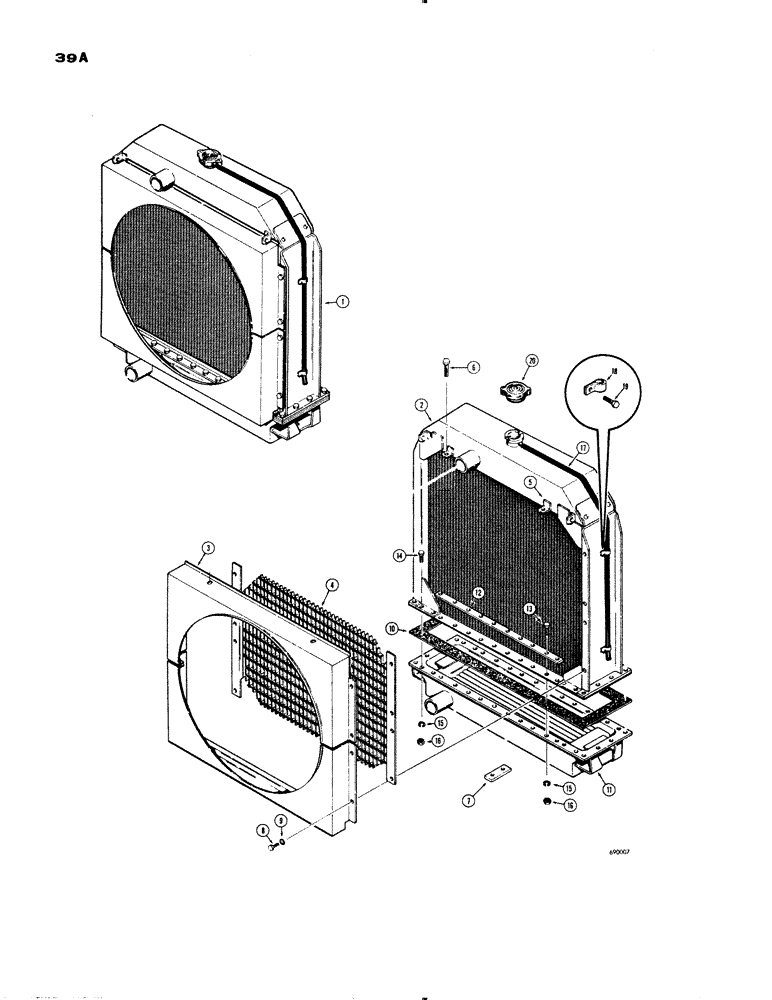

Запчасти Case 1150 (039A) - D44565 RADIATOR (01) - ENGINE

1

D44565

RADIATOR - engine and basic tractor hydraulics cooling (Perfex #R8449), Includes: Ref. 2 - 19

1шт.

2

D47900

NO LONGER SERVICED

TOP TANK AND CORE - radiator

1шт.

3

D47903

SHROUD - radiator

1шт.

4

D47904

SHIELD

- sand

1шт.

5

D48110

CLIP - shroud, top

2шт.

6

75-46

SCREW

RHMS - 1/4" - 20 NC x 3/8"

4шт.

7

D48111

CLIP - shroud, bottom

2шт.

8

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

10

N6649

STRIP-GASKET

- core

2шт.

11

D46701

RESERVOIR

BOTTOM TANK AND COOLER - radiator

1шт.

12

R22015

WASHER - radiator core

2шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

32шт.

14

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

15

92-5

LOCK WASHER,5/16"

med sect. 5/16"

40шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

40шт.

17

D47905

HOSE - overflow

1шт.

18

R22017

CLAMP - overflow hose

2шт.

19

R18946

SCREW - drive, no. 20 x 3/8"

2шт.

20

D50206

CAP

- pressure, 15 P.S.I.

1шт.
