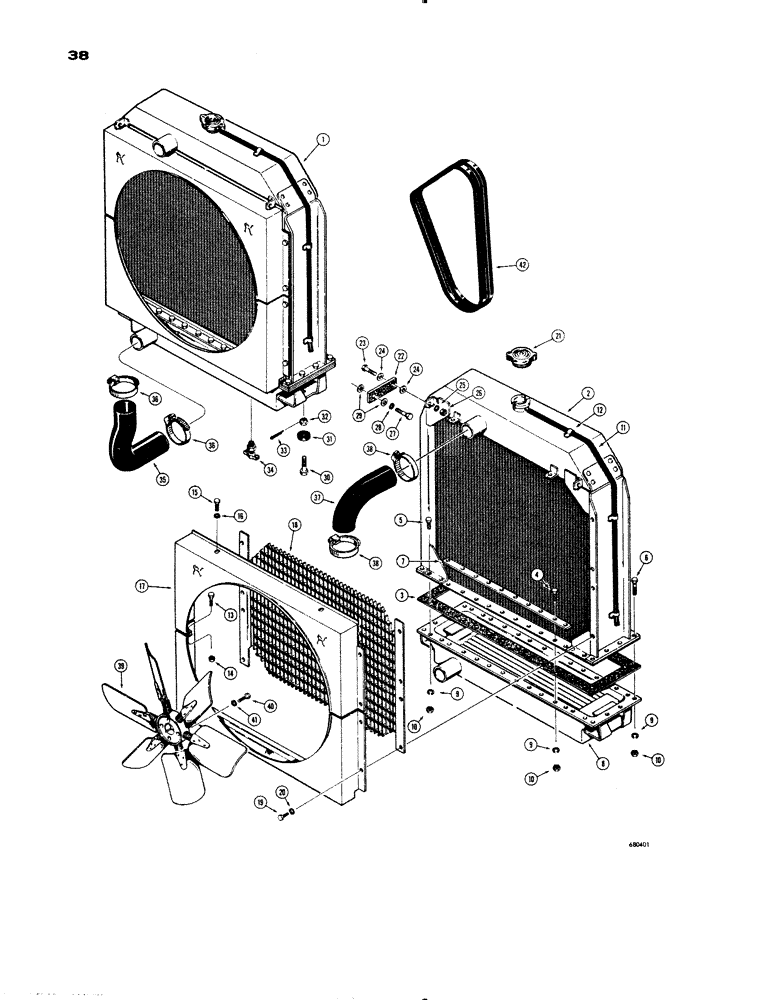

Запчасти Case 1150 (038) - RADIATOR, FAN AND HOSES (01) - ENGINE

1

D42961

X

RADIATOR - engine and basic tractor hydraulics cooling (Young #D232366) Order 1 - D44565 radiator and 1 - R19858 hose for service (See item 17A), Includes: Ref. 2 - 17

1шт.

2

D44080

TOP TANK AND CORE ASSEMBLY - radiator, Includes: Ref. 3

1шт.

3

D38230

GASKET

- top tank and oil cooler

1шт.

4

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

20шт.

5

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

6

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

8шт.

7

D38227

BAR - header

2шт.

8

D44027

SPARE PART

TANK - oil cooler

1шт.

When oil cooler tank is replaced, order D38230 gasket.

1шт.

9

92-5

LOCK WASHER,5/16"

med sect. 5/16"

36шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

36шт.

11

D38224

HOSE - overflow

1шт.

12

D42850

CLAMP - hose

3шт.

13

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

14

131-204

NUT,1/4"-20

NUT - hex, lock (1/4" - 20 NC)

2шт.

15

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

D44082

SHROUD - fan

1шт.

17a

REF

INSTRUCTION

RADIATOR - Perfex, engine and oil cooling (Not shown) See Figure 39A for proper radiator

1шт.

18

D42943

GUARD

SCREEN - Anti-Sand Blast

1шт.

Use D42943 Anti-Sand Blast screen with D12906 pusher fan and D41565 reversible fan only.

1шт.

19

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

21

D25826

CAP

- radiator

1шт.

22

D35108

STRAP

- radiator mounting

2шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

24

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

4шт.

25

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

2шт.

27

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

28

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

29

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

4шт.

30

F62016

SCREW

BOLT - special (Drilled)

2шт.

31

70198

WASHER

- vibration

2шт.

32

25-138

SLOTTED NUT,1/2"-20, G5

NUT - hex, slotted (1/2" - 20 NF)

2шт.

33

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

34

217-92

COCK

DRAIN COCK - radiator (1/4" NPT)

1шт.

35

R17766

HOSE,2.00" ID x 10.69", SAE 20R4 Class C D1 Or D2

Radiator, Outlet D42961 and D44565 Radiators 2.00" ID x 10.69", SAE 20R4 Class C D1 Or D2

1шт.

36

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

37

D35729

HOSE

- radiator, inlet (D42961 and D44565 radiator)

1шт.

38

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

39

D12906

FAN

- pusher (Standard) Not illustrated

1шт.

Use D42943 Anti-Sand Blast screen with D12906 pusher fan and D41565 reversible fan only.

1шт.

39

D12907

FAN

- suction (Optional) Not illustrated

1шт.

39

D41565

FAN

- reversible, optional

1шт.

Use D42943 Anti-Sand Blast screen with D12906 pusher fan and D41565 reversible fan only.

1шт.

40

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

41

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

42

D43913

SET OF BELTS,0.69" W x 54.62" L

SET OF 2 BELTS , Fan 0.69" W x 54.62" L

1шт.
