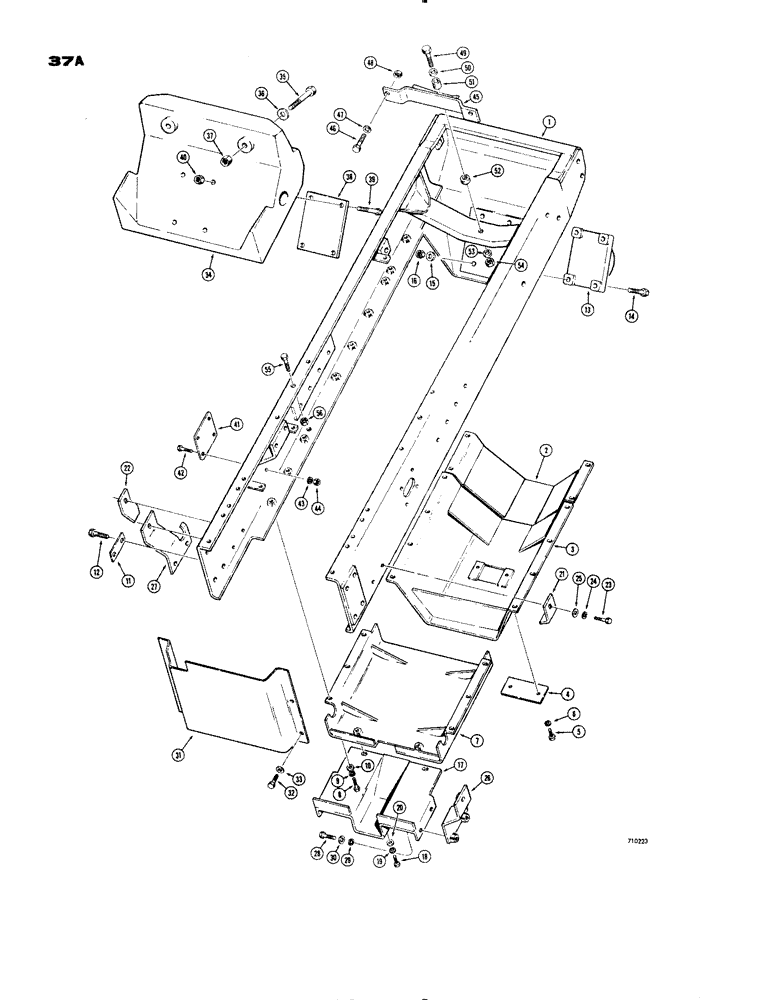

Запчасти Case 1150 (037A) - ENGINE FRAME AND RELATED PARTS, LATE PRODUCTION GUARDS (01) - ENGINE

1

D42935

FRAME - engine

1шт.

2

D36451

GUARD - radiator cleanout

1шт.

3

D36459

GUARD - crankcase, front

1шт.

4

R20471

COVER - access, front guard

1шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

7

D44299

GUARD

- torque converter

1шт.

8

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

18шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

18шт.

10

195-41

WASHER,5/8"

18шт.

11

72289

PLATE

LOCK PLATE - final drive bolts

4шт.

12

D30057

BOLT

- special

8шт.

13

71671

PLATE ASSY.

HOOK - pull, front

1шт.

14

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

15

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

16

25-1012

NUT,3/4"-10, G5

4шт.

17

D44317

GUARD

- undercarriage, rear

1шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

19

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

20

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

21

D44422

SUPPORT - undercarriage guard, R.H.

1шт.

22

D44423

SUPPORT - undercarriage guard, L.H.

1шт.

23

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

4шт.

24

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

25

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

26

D44420

PLATE

BRACKET - guard mounting, R.H.

1шт.

27

D44421

BRACKET

- guard mounting, L.H.

1шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

29

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

30

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

31

D36477

GUARD

- transmission rear

1шт.

32

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

33

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

34

D44418

COUNTERWEIGHT - front, 1000 lbs

1шт.

35

13-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

2шт.

36

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (1")

2шт.

37

25-1016

NUT,1"-8, G5

2шт.

38

74621

WEIGHT

PLATE - counterweight (Used when pull hook is not installed)

1шт.

39

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

(Used with counterweight plate only) Hex, 3/4"-10 x 4", G5

4шт.

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

(Used with pull hook only) Hex, 3/4"-10 x 4 1/2", G5

4шт.

40

25-1012

NUT,3/4"-10, G5

4шт.

41

R19420

PLATE - cover

1шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(4 per plate) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

43

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

44

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

1шт.

45

D36161

SUPPORT

MOUNT - engine, front

1шт.

46

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

47

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

2шт.

48

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock (3/4" - 10 NC)

2шт.

49

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

50

D31328

WASHER

- special, top

1шт.

51

D36157

BUSHING

SPACER - mount

1шт.

52

D31852

SPACER

WASHER - special, middle

1шт.

53

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, bottom

1шт.

54

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock (3/4" - 10 NC)

1шт.

55

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Rear engine mounting) Hex, 3/4"-10 x 3", G5

2шт.

56

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock (3/4" - 10 NC) Rear engine mounting

2шт.
