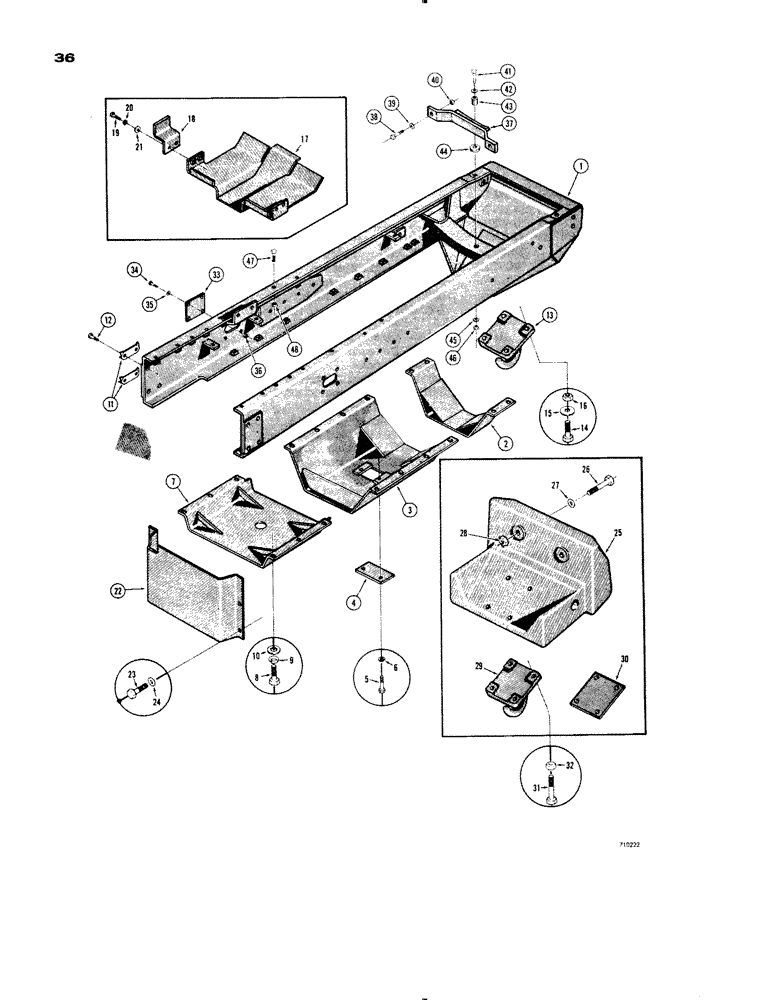

Запчасти Case 1150 (036) - ENGINE FRAME AND RELATED PARTS, EARLY PRODUCTION GUARDS (01) - ENGINE

1

D42935

FRAME - engine

1шт.

2

D36451

GUARD - radiator cleanout

1шт.

3

D36459

GUARD - crankcase front

1шт.

4

R20471

COVER - access, front guard

1шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

7

D36460

GUARD - torque converter

1шт.

8

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

18шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

18шт.

10

195-41

WASHER,5/8"

18шт.

11

72289

PLATE

LOCK PLATE - final drive bolts

4шт.

12

D30057

BOLT

- special

8шт.

13

71671

PLATE ASSY.

HOOK - front, pull

1шт.

14

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

15

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

16

25-1012

NUT,3/4"-10, G5

4шт.

R3672

PAN

GUARD - undercarriage, Includes: Ref. 17 - 21

1шт.

17

R19645

PAN

GUARD - undercarriage

1шт.

18

R19643

BRACKET

- mounting

2шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

20

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

21

195-33

WASHER,1/2"

- std. wrot () 1/2"

4шт.

22

D36477

GUARD

- transmission rear

1шт.

23

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

24

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

25

D44418

COUNTERWEIGHT - front, 1000 lbs.

1шт.

26

13-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

2шт.

27

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- std. wrought (1")

2шт.

28

25-1016

NUT,1"-8, G5

2шт.

29

71671

PLATE ASSY.

HOOK - front, pull (If used)

1шт.

30

74621

WEIGHT

PLATE - counterweight (If used)

1шт.

31

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

(Hook only) Hex, 3/4"-10 x 4 1/2", G5

4шт.

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

(Plate only) Hex, 3/4"-10 x 4", G5

4шт.

32

25-1012

NUT,3/4"-10, G5

4шт.

33

R19420

PLATE - cover

1шт.

34

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(4 per plate) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

35

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

36

25-106

NUT,3/8"-16, G5

- hex, (3/8" - 16 NC)

1шт.

37

D36161

SUPPORT

MOUNT - front, engine

1шт.

38

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

39

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

2шт.

40

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock (3/4" - 10 NC)

2шт.

41

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

42

D31328

WASHER

- special, top

1шт.

43

D36157

BUSHING

SPACER - mount

1шт.

44

D31852

SPACER

WASHER - special, middle

1шт.

45

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, bottom

1шт.

46

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock (3/4" - 10 NC)

1шт.

47

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

48

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock (3/4" - 10 NC)

2шт.
