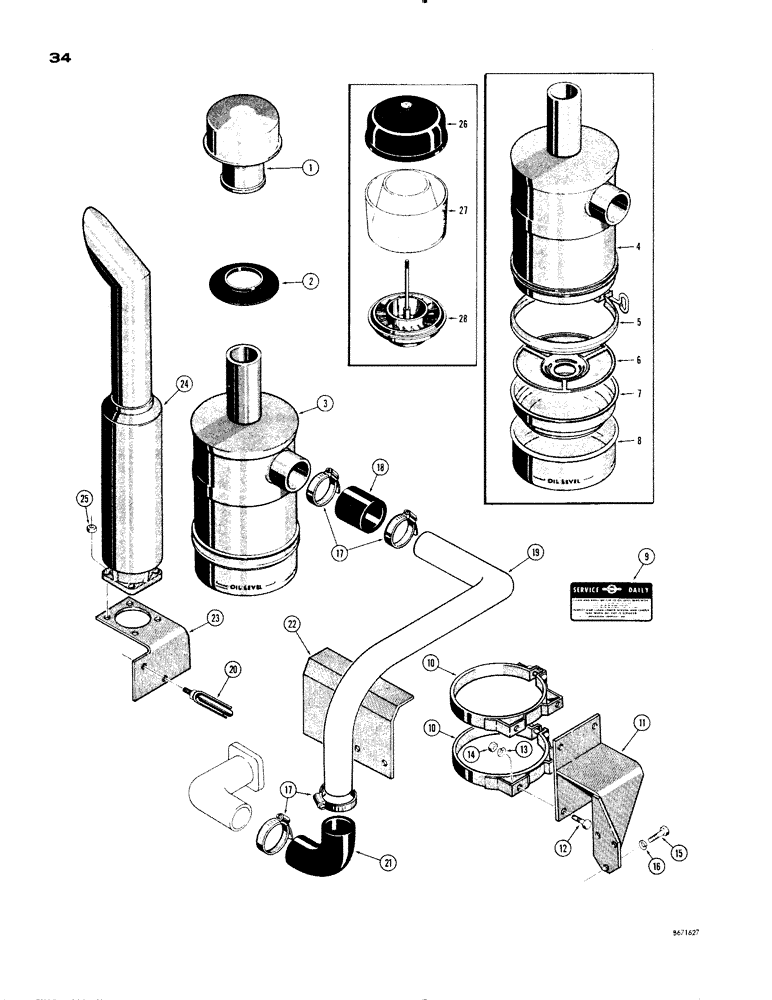

Запчасти Case 1150 (034) - MUFFLER AND OIL BATH TYPE AIR CLEANER (01) - ENGINE

1

A21433

CAP

- air cleaner

1шт.

2

R14780

GROMMET

- stack

1шт.

3

D39253

AIR CLEANER - oil bath type (Optional) See Figure 32 for standard air cleaner, Includes: Ref. 4 - 9

1шт.

See Figure 108 for special hoods used on tractors with optional oil bath type air cleaner.

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

5

R21391

CLAMP

- air cleaner

1шт.

6

A24178

SCREEN

- air cleaner

1шт.

7

D39486

CUP - inner

1шт.

8

D39487

CUP - outer

1шт.

9

NLS

NO LONGER SERVICED

DECAL - oil level (10812)

1шт.

10

70973

BRACKET

CLAMP - air cleaner

2шт.

11

D39248

BRACKET - air cleaner

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

13

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

4шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

17

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

4шт.

18

R19030

HOSE

- air, Serial Range: cleaner-tube

1шт.

19

D39250

TUBE - air, Serial Range: cleaner-manifold

1шт.

20

A19955

CLAMP

- tube

1шт.

21

D36262

LARGE HOSE

ELBOW - hose

1шт.

22

D36271

SHIELD - manifold heat

1шт.

23

D35768

SPLIT PIN/SAFETY PIN

BRACKET - clamp mounting

1шт.

24

D35766

MUFFLER

- exhaust

1шт.

25

131-906

NUT

- hex., Seez-Pruf (1/2" - 13 NC)

4шт.

A64589

PRECLEANER

PRE CLEANER - oil bath air cleaner (Optional), Includes: Ref. 26 - 28

1шт.

26

73187

COVER

- pre cleaner

1шт.

27

365413R1

BOWL

BODY - pre cleaner

1шт.

28

73185

SLEEVE

- pre cleaner

1шт.
