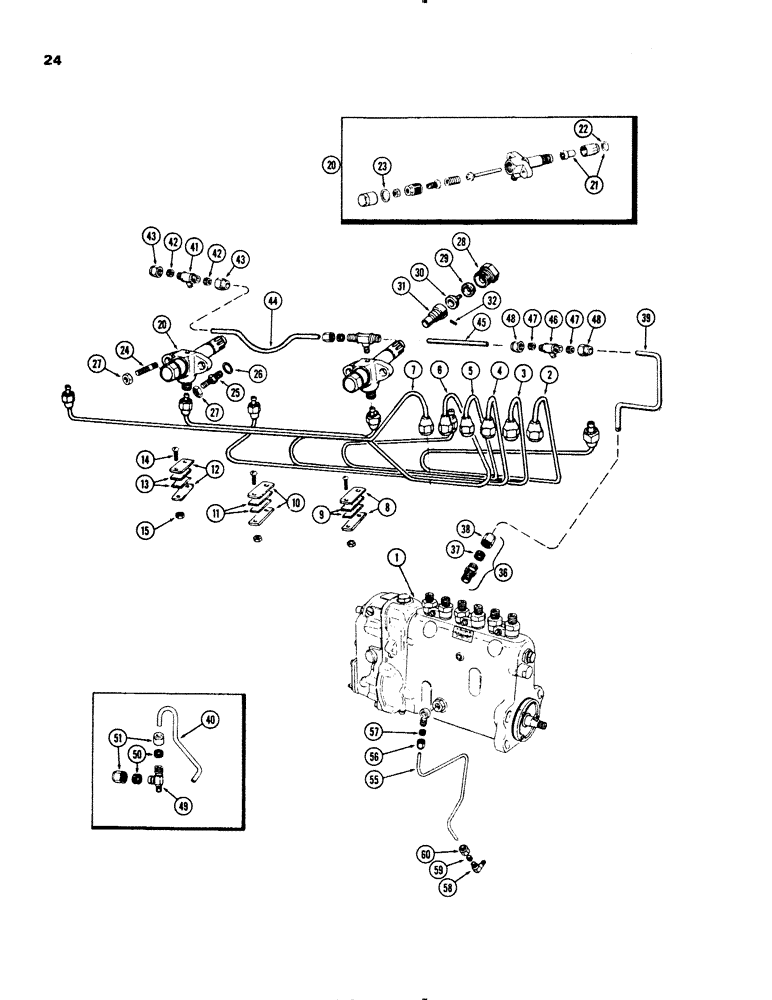

Запчасти Case 1150 (024) - FUEL INJECTION SYSTEM, (401) DIESEL ENGINE, USED PRIOR TO ENG. SN 2306516 (01) - ENGINE

1

A57526

PUMP

ASSY. - fuel (1850 RPM) (Repairs, P25B)

1шт.

2

A20501

TUBE

ASSY. - injector, (#1 cylinder)

1шт.

3

A20502

TUBE

ASSY. - injector, (#2 cylinder)

1шт.

4

A20503

TUBE

ASSY. - injector, (#3 cylinder)

1шт.

5

A20504

TUBE

ASSY. - injector, (#4 cylinder)

1шт.

6

A20505

TUBE

ASSY. - injector, (#5 cylinder)

1шт.

7

A20506

TUBE

ASSY. - injector, (#6 cylinder)

1шт.

8

A27978

CLAMP

- injector tube (5 tubes) (25/64" long)

2шт.

9

A27980

CUSHION

- tube clamp (5 tubes) (1-1/4 x 3/4 x 1/8" cork)

2шт.

10

A27977

CLAMP

- injector tube (3 tubes) (1-37/64" long)

2шт.

11

A27979

CUSHION

- tube clamp (3 tubes) (3/4 x 3/4 x 1/8" cork)

2шт.

12

A20508

CLAMP

- injector tube (2 tubes) (1-21/64" long)

2шт.

13

A20509

CUSHION

- tube clamp (2 tubes) (1/2 x 3/4 x 1/8" cork)

2шт.

14

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- #10 x 1" N.C. rd. hd.

6шт.

15

129-7

NUT,Hex, #10 - 24

- #10 N.C. hex

6шт.

20

A8013

NOZZLE INJECTION

INJECTOR ASSY. - fuel, Includes: Ref. 21 - 23

6шт.

21

A31159

NOZZLE INJECTION

NOZZLE ASSY. - fuel, injector, Includes: Ref. 22

1шт.

22

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle

1шт.

23

A31062

GASKET

- cap, adjusting screw

1шт.

24

A27929

STUD

- nozzle (3/8" N.C/N.F. x 2-3/16")

6шт.

IS A NSS PART, FURNISHED ONLY IN KIT R29966.

1шт.

25

A10678

STUD

- nozzle

6шт.

26

A10679

GASKET

-, Serial Range: stud-head

6шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

12шт.

28

A11813

PLUG

SCREW - powrcel clamp

6шт.

29

A11812

CLAMP

- powrcel

6шт.

30

A22975

CAP

- powrcel

6шт.

31

A22978

BODY

- powrcel

6шт.

32

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel

6шт.

36

A28098

VALVE

ASSY. - check (one way valve), Includes: Ref. 37 and 38

1шт.

37

222-102

SLEEVE,1/4" Tube

1шт.

38

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

39

A22186

TUBE

- leak-off, #1 cylinder to pump (used w/2 stage system & 222-72 tee)

1шт.

40

A34003

TUBE

- leak-off, #1 cylinder to pump (used w/3 stage system & 222-62 tee)

1шт.

41

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY . - leak-off, 1/4" tube x 1/8" P.T., Includes: Ref. 42 and 43

3шт.

42

222-102

SLEEVE,1/4" Tube

2шт.

43

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

44

A27981

TUBE

- leak-off (bent pipe)

3шт.

45

A20162

TUBE

- leak-off (straight pipe)

2шт.

46

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - leak-off, 1/4" tube, 1/8" P.T. (used w/2 stage system) (male branch tee), Includes: Ref. 47 and 48

1шт.

47

222-102

SLEEVE,1/4" Tube

2шт.

48

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

49

222-62

TEE,1/2"-24 Fem Run x 1/2"-24 Male x 1/8" NPT Br

ASSY. - leak-off, 1/4" tube x 1/8" P.T. (used w/3 stage system) (male run tee), Includes: Ref. 50 and 51

1шт.

50

222-102

SLEEVE,1/4" Tube

2шт.

51

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

55

A22640

TUBE

- oil, Serial Range: pump-block

1шт.

56

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

57

222-102

SLEEVE,1/4" Tube

1шт.

58

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - 90deg., 1/4" tube x 1/8" P.T., Includes: Ref. 59 and 60

1шт.

59

222-102

SLEEVE,1/4" Tube

1шт.

60

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
