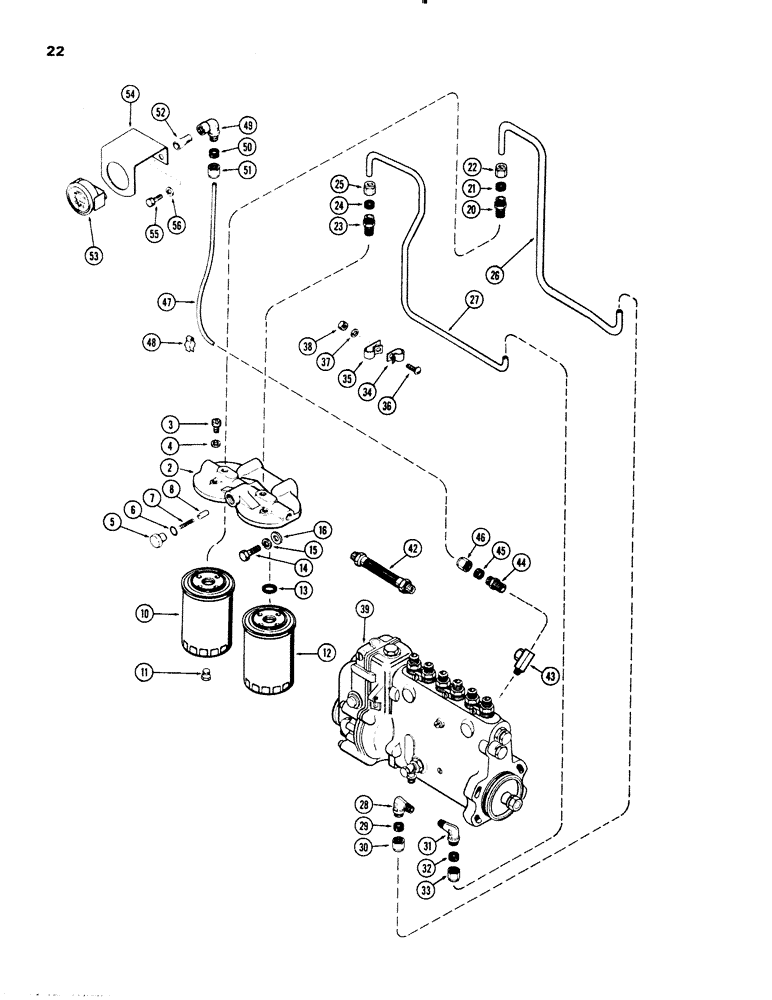

Запчасти Case 1150 (022) - FUEL INJECTION FILTER SYSTEM, (401) DIESEL ENGINE, 2 STAGE FILTERING SYSTEM (01) - ENGINE

A60032

HEAD

ASSY. - 1st & 2nd Stage Filter

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed (#10-32 x 5/16" fill, hd.)

2шт.

4

A20662

GASKET

WASHER - bleed screw (3/16 x 3/8 x 3/66" fiber)

2шт.

5

A24916

PLUG

- relief valve

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - valve plug (1/2 x 11/16 x 3/32")

1шт.

7

A24918

SPRING

- relief valve

1шт.

8

A24917

PLUNGER

- relief valve

1шт.

CASA41745

FUEL FILTER

FILTER KIT - (Set of 2)

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER ASSY.- 1st stage (Order A41745)

1шт.

11

221-1661

PLUG

- filter drain

1шт.

12

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 2nd stage (Order A41745)

1шт.

13

A42315

GASKET

- 2nd stage filter

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Filter Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.

20

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - 3/8" tube, 1/4" P.T. (1st stage)

1шт.

21

222-104

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

1шт.

22

222-114

NUT,5/8"-24

NUT - (for 3/8" tube)

1шт.

23

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 5/16" tube, 1/4" P.T. (2nd stage)

1шт.

24

222-103

SLEEVE,5/16" Tube

1шт.

25

222-113

TUBE NUT,9/16"-24

NUT - (for 5/16" tube)

1шт.

26

A57866

TUBE

- 1st stage filter to pump (3/8" O.D. tube)

1шт.

27

A57867

TUBE

- pump to 2nd stage filter (5/16" O.D. tube)

1шт.

28

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube, 1/4" P.T., (1st stage)

1шт.

29

222-104

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

1шт.

30

222-114

NUT,5/8"-24

NUT - (for 3/8" tube)

1шт.

31

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube, 1/4" P.T. (2nd stage)

1шт.

32

222-103

SLEEVE,5/16" Tube

1шт.

33

222-113

TUBE NUT,9/16"-24

NUT - (for 5/16" tube)

1шт.

34

A20688

CLIP

- 1st stage tube (for 3/8" O.D. tube)

1шт.

35

A27814

X

CLIP - 2nd stage tube (for 5/16" O.D. tube)

1шт.

36

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- clips (1/4" x 5/8" N.C. rd. hd)

2шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

38

25-104

NUT,1/4"-20, G5

2шт.

39

A57526

PUMP

ASSY. - injection (See Figure 24)

1шт.

42

A57865

HOSE

- 2nd stage to pump (15" long)

1шт.

43

A20539

FITTING

UNION - adapter, hose & fuel pressure line

1шт.

44

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR ASSY. - 1/8" tube, 1/8 P.T.

1шт.

45

222-100

TUBE NUT,1/8" Tube

SLEEVE - (for ) 1/8" Tube

1шт.

46

222-110

TUBE NUT,3/8"-24

NUT - (for 1/8" tube)

1шт.

47

A9364

TUBE

- adapter to pressure gauge

1шт.

48

A34112

CLIP - pressure line

1шт.

49

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/8" tube, 1/8" P.T.

1шт.

50

222-100

TUBE NUT,1/8" Tube

SLEEVE - (for ) 1/8" Tube

1шт.

51

222-110

TUBE NUT,3/8"-24

NUT - (for 1/8" tube)

1шт.

52

A28061

FITTING

SNUBBER - tube to pressure gauge

1шт.

53

A8101

GAUGE

- fuel pressure

1шт.

54

A57077

BRACKET

- fuel pressure gauge

1шт.

55

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Bracket Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

56

92-5

LOCK WASHER,5/16"

2шт.
