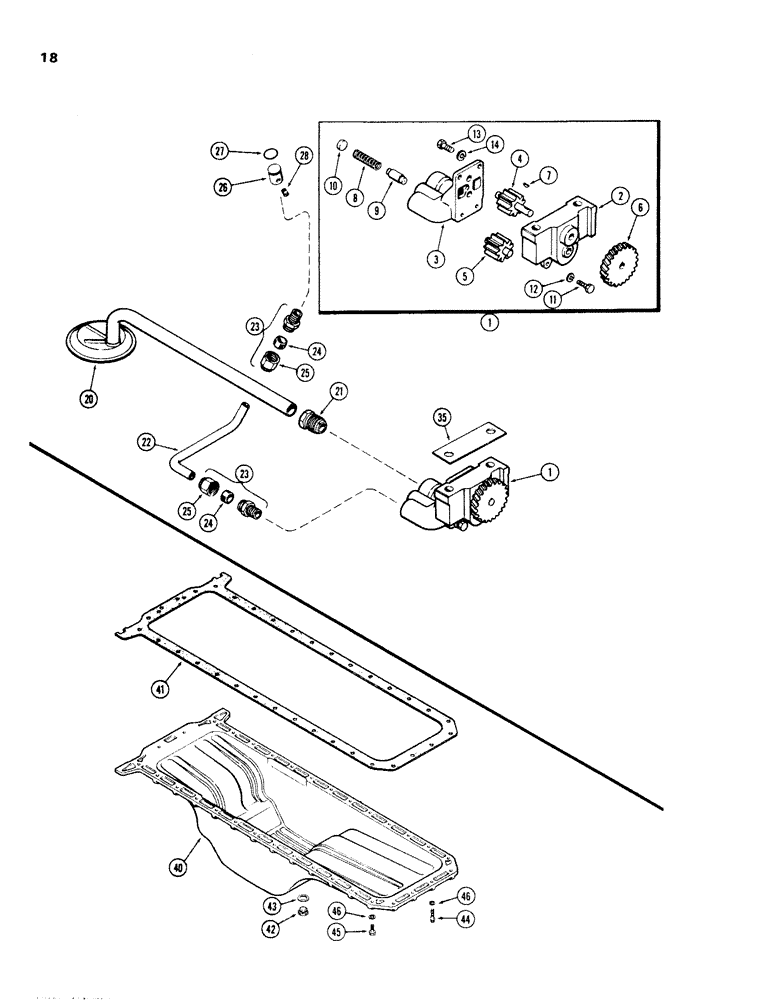

Запчасти Case 1150 (018) - OIL PUMP, (401) DIESEL ENGINE, USED PRIOR TO ENG. SN 2306516 (01) - ENGINE

1

A61810

PUMP

ASSY. - oil, Includes: Ref. 2 - 14

1шт.

2

A57487

BODY

- pump

1шт.

3

A57488

COVER

- pump body

1шт.

4

A34942

GEAR - pump drive

1шт.

5

A34945

GEAR - pump driven

1шт.

6

A34947

GEAR - pump drive, external

1шт.

7

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

1шт.

8

A34993

RING

SPRING - pressure relief valve

1шт.

9

A34992

PISTON

VALVE - pressure relief

1шт.

10

41-1011

PLUG,Cup, 11/16"

- cup, pump, 11/16"

1шт.

11

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

20

A57142

FILTER SCREEN

SCREEN ASSY. - oil

1шт.

21

222-510

TUBE NUT,1 1/4"-18

NUT - fitting, #81 x 1"

1шт.

22

A57388

TUBE

-, Serial Range: pump-filter

1шт.

23

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - tube, Includes: Ref. 24 and 25

2шт.

24

222-106

SLEEVE,5/8" Tube

- connector

1шт.

25

222-116

TUBE NUT,1"-18

NUT - connector

1шт.

26

A34964

PLUG

- cylinder block oil gallery hole

1шт.

27

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - plug (1-3/16 x 1-7/16 x 1/8")

1шт.

28

A22593

SET SCREW,1/4" - 18 x 7/8"

- set, oil gallery plug

1шт.

35

A57454

SHIM,.005" Thk

Pump to brg. cap .005" Thk

1шт.

35

A57455

SHIM,.010" Thk

Pump to brg. cap .010" Thk

1шт.

35

A57456

SHIM,.025" Thk

Pump to brg. cap .025" Thk

1шт.

40

A57140

CASE

PAN - oil, engine

1шт.

41

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order from Figure 20)

1шт.

42

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

43

A34827

GASKET

- drain plug, oil pan

1шт.

44

A34929

BOLT (SPREADER)

BOLT - pan to timing gear cover (3/8 x 1-1/8" N.C., 12 Pt. hd.), oil

2шт.

45

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 1 1/4", G5, Full Thd

30шт.

46

92-6

LOCK WASHER,3/8"

oil pan 3/8"

32шт.
