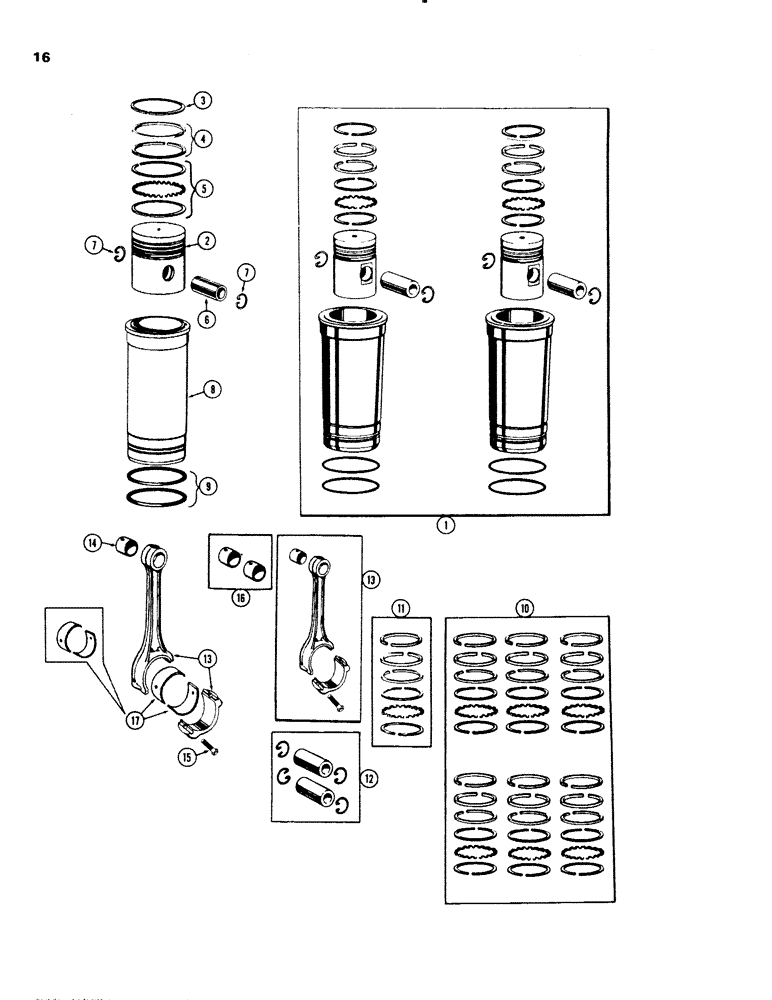

Запчасти Case 1150 (016) - PISTON ASSEMBLY AND CONNECTING RODS, (401) DIESEL ENGINE, USED PRIOR TO ENG. SN 2306516 (01) - ENGINE

1

A40479

SLEEVE

PISTON & SLEEVE ASSY.- (Set of 2), Includes: Ref. 2 - 9

3шт.

2

A24488

PISTON

- (4-1/8" bore, aluminum)

6шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref. 10)

6шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd & 3rd Groove) (Order ref. 10)

12шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (4th groove) (Order ref. 10)

6шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

6шт.

7

A21016

RING, SNAP

RING - piston pin retaining

12шт.

8

A23658

SLEEVE

- piston (cylinder liner)

6шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - sleeve

12шт.

10

A40438

RING

KIT - re-ring (Set of 6), Includes: Ref. 11

1шт.

11

A40364

RING, PISTON

RING KIT - re-ring (Set of 1)

6шт.

12

A24517

PIN

KIT - piston (Set of 2 pins & 4 ret. rings)

3шт.

13

A24424

ROD

ASSY. - connecting, Includes: Ref. 14 and 15

6шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - conn. rod (Order ref. 16)

6шт.

15

A62184

STEP BOLT

BOLT - conn. rod

12шт.

16

A21722

BUSHING

KIT - conn. rod (Set of 2)

3шт.

17

A20393

LINING

INSERT ASSY. - conn. rod brg. (Std.)

6шт.

17

A20569

JOURNAL

INSERT ASSY. - conn. rod brg. (-.002")

6шт.

17

A20571

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.010")

6шт.

17

A20573

KIT

INSERT ASSY. - conn. rod brg. (-.020")

6шт.

17

A20576

LINING

INSERT ASSY. - conn. rod brg. (-.030")

6шт.
