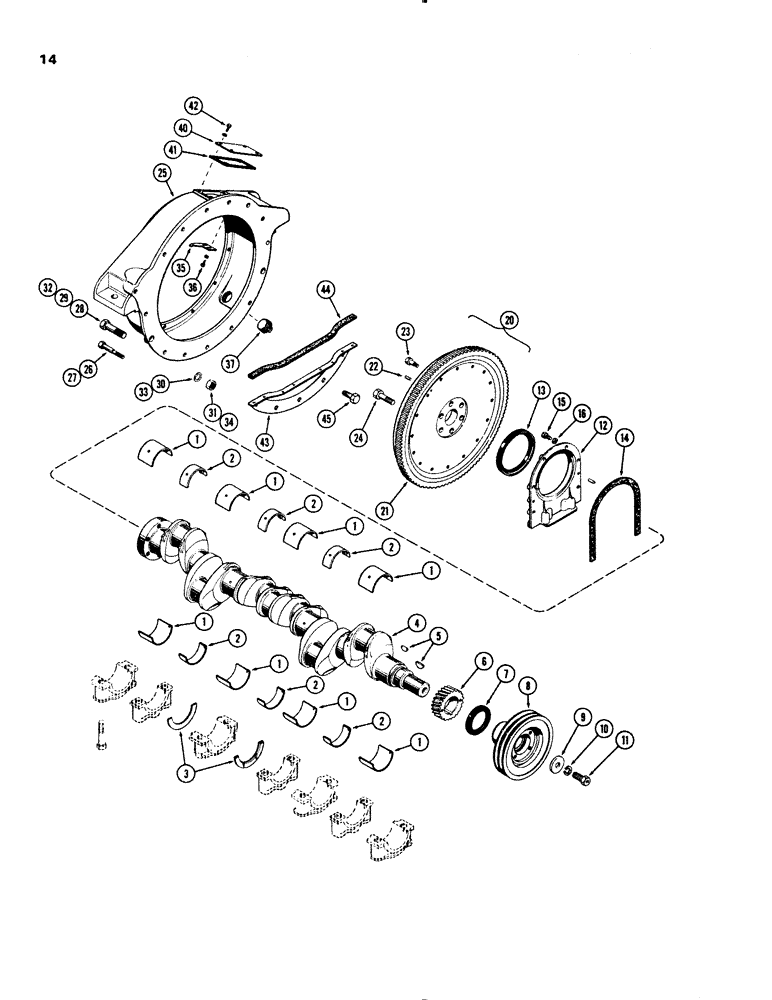

Запчасти Case 1150 (014) - CRANKSHAFT AND FLYWHEEL, (401) DIESEL ENGINE, USED PRIOR TO ENG. SN 2306516 (01) - ENGINE

1

A28687

LINING

LINER KIT - crankshaft brg. (wide) (Std.)

4шт.

1

A7182

KIT

LINER KIT - crankshaft brg. (wide) (-.002")

4шт.

1

A7188

BEARING LINER

LINER KIT - crankshaft brg. (wide) (-.010")

4шт.

1

A7194

KIT

LINER KIT - crankshaft brg. (wide) (-.020")

4шт.

1

A7200

KIT

LINER KIT - crankshaft brg. (wide) (-.030")

4шт.

2

A20394

LINING

LINER KIT - crankshaft brg. (narrow) (Std.)

3шт.

2

A20579

LINING

LINER KIT - crankshaft brg. (narrow) (-.002")

3шт.

2

A20582

LINING

LINER KIT - crankshaft brg. (narrow) (-.010")

3шт.

2

A20585

KIT

LINER KIT - crankshaft brg. (narrow) (-.020")

3шт.

2

A20588

KIT

LINER KIT - crankshaft brg. (narrow) (-.030")

3шт.

3

A27835

WASHER

- thrust, crankshaft

2шт.

3

A7204

WASHER

- thrust, camshaft (.006" oversize)

2шт.

4

A24944

CRANKSHAFT - engine

1шт.

5

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley to crankshaft #C, 5/16" x 1 1/8", HT

2шт.

6

A27837

GEAR

- crankshaft

1шт.

7

A62049

OIL SEAL

- crankshaft, front (2-5/8 x 3-5/8 x 1/2")

1шт.

8

A61163

PULLEY

- crankshaft & fan drive (7-3/8" dia. - 11/16" belt)

1шт.

9

A27903

WASHER

- drive pulley (21/32 x 2-1/8 x 1/4")

1шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

12

A57457

RETAINER

- rear crankshaft seal

1шт.

13

A62050

OIL SEAL

- retainer (4-3/4 x 5-3/4 x 1/2")

1шт.

14

A32830

GASKET

-, Serial Range: retainer-block

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

16

92-6

LOCK WASHER,3/8"

6шт.

20

A34210

FLYWHEEL ASSY. - engine, Includes: Ref. 21

1шт.

21

A27920

GEAR

- ring, flywheel

1шт.

22

A27840

PIN

- dowel, flywheel

1шт.

23

A11549

STEP BOLT

BOLT - dowel, flywheel mounting

2шт.

24

A11550

BOLT (SPREADER)

BOLT - flywheel mounting

4шт.

25

A33992

HOUSING - flywheel

1шт.

26

A32607

STEP BOLT

- long dowel, Serial Range: hsg.-block

1шт.

27

A32608

STEP BOLT

BOLT - short dowel, Serial Range: hsg.-block

1шт.

28

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.F. hex

6шт.

29

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

30

92-8

LOCK WASHER,1/2"

13шт.

31

25-118

NUT,1/2"-20, G5

- 1/2" N.C. hex

2шт.

32

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

33

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

34

25-1012

NUT,3/4"-10, G5

2шт.

35

A22586

INDICATOR

POINTER - flywheel timing

1шт.

36

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

37

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - pipe, 1-1/4" sq. hd.

1шт.

40

A22584

COVER

PLATE - cover, flywheel timing hole

1шт.

41

A22585

GASKET

- cover plate

1шт.

42

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

43

A57143

PLATE

SEAL PLATE ASSY. - dust

1шт.

44

A57144

GASKET

- dust seal

1шт.

45

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.
