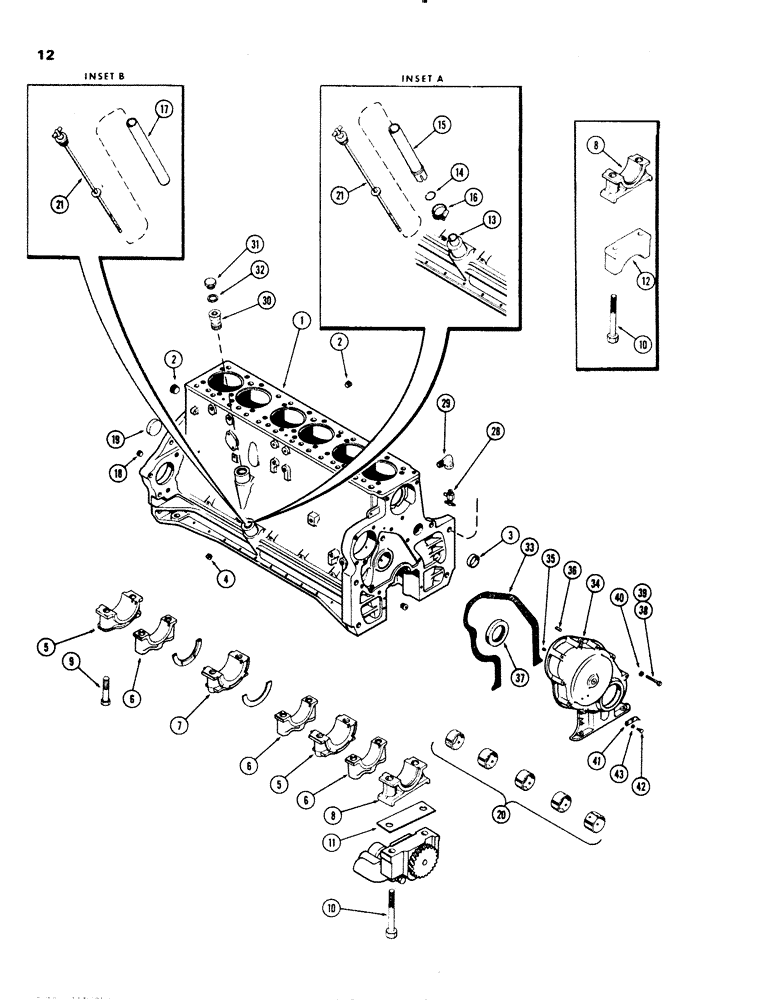

Запчасти Case 1150 (012) - CYLINDER BLOCK ASSEMBLY, (401) DIESEL ENGINE, USED PRIOR TO ENG. 2306516 (01) - ENGINE

A41234

BLOCK

ASSY. - cylinder, short (not illust.) (Incl. stripped block, conn. rods & brgs., camshaft, crankshaft, pistons & sleeves, rear seal & retainer)(Casting No. A34971), Includes: Ref. 1 - 21

1шт.

1

A41220

NO LONGER SERVICED

BLOCK ASSY. - stripped (Casting No. A34971), Includes: Ref. 2 - 20

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex, sckt. hd.

6шт.

3

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, front water gallery (1-3/4")

1шт.

4

221-41

PLUG

- pipe, 1/8" slotted hd.

5шт.

5

A24941

CAP

- bearing, crankshaft (wide)

2шт.

6

A24942

CYLINDER END CAP

CAP - bearing, crankshaft (narrow)

3шт.

7

A24943

CAP

- bearing, crankshaft (thrust)

1шт.

8

A34937

HOLDER

CAP - bearing, crankshaft (front main)

1шт.

9

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

SCREW - cap, bearing cap

12шт.

10

113-637

BOLT

- oil pump to brg. cap, 5/8 x 6" N.C. hex

2шт.

11

A57454

SHIM,.005" Thk

Oil pump to brg. cap .005" Thk

1шт.

11

A57455

SHIM,.010" Thk

Oil pump to brg. cap .010" Thk

1шт.

11

A57456

SHIM,.025" Thk

Oil pump to brg. cap .025" Thk

1шт.

12

A61235

KIT

SPACER - cam drive pump

1шт.

Loose oil pump gear and oil pump spacer included with this block are not used with front mtd. oil pump application.

1шт.

12a

A62871

ELEMENT

FILTER

1шт.

13

A34540

TUBE

SOCKET - oil level gauge (See Inset A)

1шт.

14

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - dipstick (See Inset A) (1-1/8 x 1-3/8 x 1/8")

1шт.

15

A57940

TUBE

- extension, (See Inset A) (Replaces A57523)

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - dipstick tube, 1-3/16" to 1-3/4"

1шт.

17

A61842

TUBE

SOCKET - oil level gauge (See Inset B)

1шт.

18

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1" ctsk. hd.

1шт.

19

A24361

PLUG

- rear camshaft hole

1шт.

20

A23544

BUSHING

KIT - bushing, camshaft (Set of 5)

1шт.

21

A22589

ELECTRICAL GAUGE

DIPSTICK - oil level, indicator

1шт.

25

A22683

CARRIER

- generator

1шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

27

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex

1шт.

28

A23656

COCK, DRAIN

VALVE - drain, cylinder block

1шт.

29

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- 90 deg. x 14"

1шт.

30

A34266

DRIVE

ASSY. - tachometer

1шт.

31

A22594

CAP

- tachometer drive (shipping purposes)

1шт.

32

A27968

RING

WASHER - cap, 57/64 x 1-1/8 x 1/16" (shipping purposes)

1шт.

33

A33018

GASKET

- timing gear cover

1шт.

34

A57403

COVER

ASSY. - timing gear, Includes: Ref. 35 - 37

1шт.

35

A27869

BUTTON - thrust

2шт.

36

A27840

PIN

- locating, timing cover

2шт.

37

A57342

SEAL

- front crankshaft

1шт.

38

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex

8шт.

39

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

40

92-6

LOCK WASHER,3/8"

10шт.

41

A21362

CLIP

POINTER - timing

1шт.

42

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

43

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int.-ext.

2шт.
