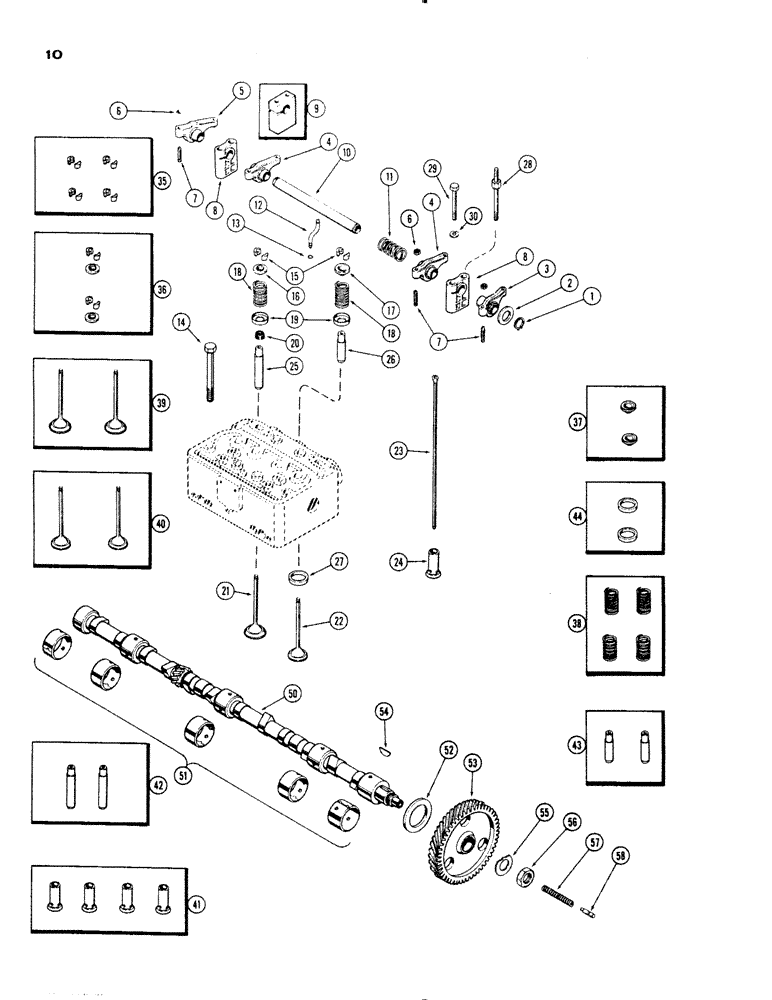

Запчасти Case 1150 (010) - VALVE MECHANISM AND CAMSHAFT, (401) DIESEL ENGINE, USED PRIOR TO ENG. SN. 2306516 (01) - ENGINE

1

B18206

SNAP RING,#87, Ext

RING - snap, , shaft end #87, Ext

6шт.

2

A27878

WASHER

- rocker arm

21шт.

3

A22324

ROCKER

ARM ASSY. - rocker, exhaust valve (#1, 3 & 5 cylinders), Includes: Ref. 6 and 7

3шт.

4

A22322

ROCKER

ARM ASSY . - rocker, intake valve, Includes: Ref. 6 and 7

6шт.

5

A22326

ROCKER

ARM ASSY. - rocker, exhaust valve (#2, 4 & 6 cylinders), Includes: Ref. 6 and 7

3шт.

6

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex

1шт.

7

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting

1шт.

8

A61128

BRACKET

- shaft, rocker arm (Replaces A27881)

6шт.

9

A27881

BRACKET

- shaft, rocker arm

6шт.

10

A57532

SHAFT

ASSY. - rocker arm, w/solid plug

3шт.

11

A27877

SPRING

- rocker arm shaft

3шт.

12

A27879

TUBE

- oil, rocker arm shaft

3шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16")

3шт.

14

A23355

BOLT

- mounting, cylinder, Serial Range: head-block

27шт.

15

NSS

NOT SOLD SEPARAT

LOCK - retainer, valve spring (Order ref. 35)

3шт.

16

NSS

NOT SOLD SEPARAT

RETAINER - intake valve (Order ref. 36)

3шт.

17

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 37)

3шт.

18

NSS

NOT SOLD SEPARAT

SPRING - intake & exhaust valve (Order ref. 38)

3шт.

19

A27866

SEAT

- spring, intake & exhaust valve

12шт.

29

A10726

SEAL

SHIELD - valve stem, intake

6шт.

21

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 39)

3шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 40)

3шт.

23

A21060

ROD

- push, valve & rocker arm

12шт.

24

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 41)

3шт.

25

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 42)

1шт.

26

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 43)

1шт.

27

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 44)

1шт.

28

A57458

STUD

- cylinder head cover & rocker bracket

6шт.

29

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

6шт.

30

92-7

LOCK WASHER,7/16"

6шт.

35

A40352

LOCK

KIT - valve springs (Set of 8)

3шт.

36

A21657

LOCK

RETAINER SET - intake valve (Set of 2 ret. & 4 locks)

3шт.

37

A57433

COIL

ROTO-CAP KIT - exhaust valve (Set of 2)(Replaces A24993)

3шт.

38

A21694

SPRING

KIT - intake & exhaust valve (Set of 4)

3шт.

39

A40351

KIT

VALVE KIT - intake

6шт.

40

A24770

VALVE

KIT - exhaust

6шт.

41

A21653

KIT

LIFTER KIT - push rod (Set of 4)

3шт.

42

A21671

GUIDE

KIT - intake valve (Set of 2)

1шт.

43

A21674

GUIDE

KIT - exhaust valve (Set of 2)

1шт.

44

A57484

INSERT

KIT - exhaust valve (Set of 2)(Replaces A21681)

1шт.

50

A60094

CAMSHAFT

- engine (Replaces A34968)

1шт.

51

A23544

BUSHING

KIT - camshaft (Set of 5)

1шт.

52

A21017

WASHER

- thrust, camshaft

1шт.

53

A22604

GEAR

- camshaft

1шт.

54

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

55

A26444

LOCK WASHER

- lock, camshaft nut

1шт.

56

A26445

NUT

- retainer, camshaft gear

1шт.

57

CASA27853

SPRING

- camshaft plunger

1шт.

58

A27852

PLUNGER

- thrust, camshaft

1шт.
