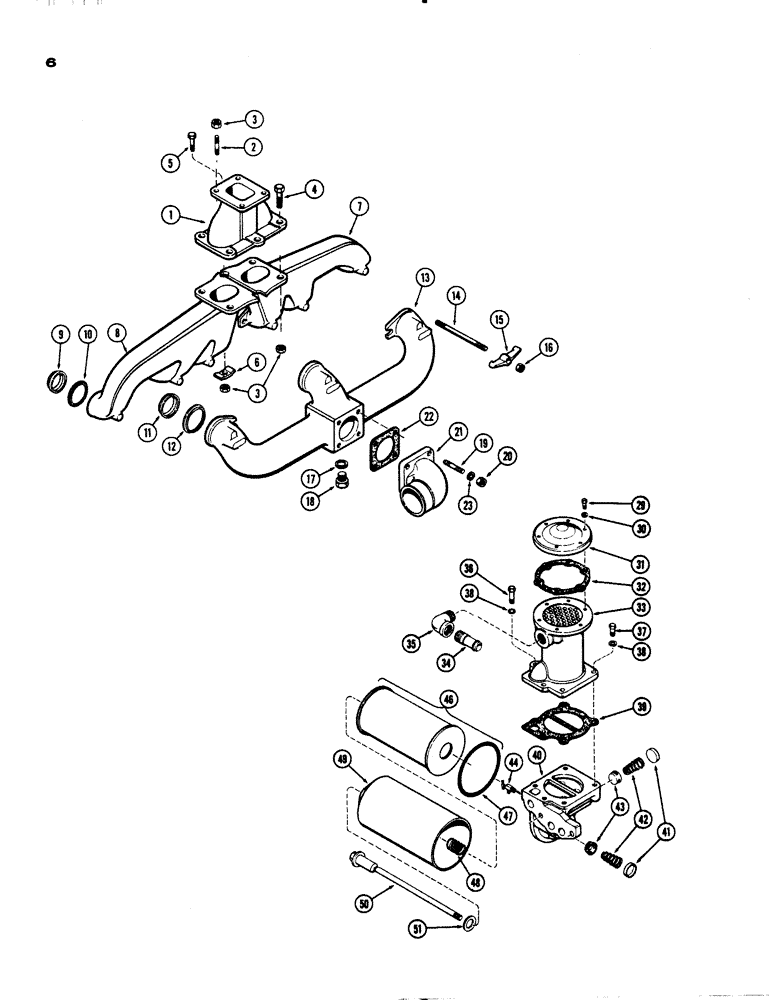

Запчасти Case 1150 (006) - MANIFOLDS, (401) DIESEL ENGINE, USED PRIOR TO ENG. SN 2306516, OIL COOLER & FILTER ASSY. (01) - ENGINE

1

A33995

EXTENSION

STACK - exhaust, manifolds

1шт.

2

A34821

STUD

- exhaust muffler (1/2" N.C. x 1-7/8")

4шт.

3

131-906

NUT

- 1/2" N.C. hex (Seez-Proof)

10шт.

4

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex

4шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

6

A57382

CLAMP

- exhaust, Serial Range: stack-manifold

2шт.

7

A24979

MANIFOLD

- exhaust, rear

1шт.

8

A24980

MANIFOLD

- exhaust, front

1шт.

9

A21648

CAP

FERRULE - exhaust manifolds

6шт.

10

A11889

GASKET

- exhaust manifold

6шт.

11

A21383

CAP

FERRULE - intake manifold

3шт.

12

A11888

MANIFOLD GASKET

- intake manifold

3шт.

13

A20913

MANIFOLD - intake

1шт.

14

A27911

STUD

- intake & exhaust manifolds (7/16"N.C./N.F. x 6")

6шт.

15

A24368

CLAMP

- intake & exhaust manifolds

6шт.

16

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

6шт.

17

A20916

MANIFOLD GASKET

GASKET - manifold plug

1шт.

18

A20917

PLUG

- intake manifold

1шт.

19

A29431

STUD

- intake manifold elbow (3/8" N.C. x 1-3/4")

4шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.C. hex

4шт.

21

A33996

FITTING

ELBOW - intake manifold

1шт.

22

A20915

GASKET

- intake elbow

1шт.

23

92-6

LOCK WASHER,3/8"

4шт.

NSS

NOT SOLD SEPARAT

COOLER & FILTER ASSY. oil, engine, Includes: Ref. 29 - 51

1шт.

29

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Oil cooler and filter assy. Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

30

92-5

LOCK WASHER,5/16"

oil cooler and filter assy. 5/16"

6шт.

31

A23030

CAP

- cooler, oil and filter assy.

1шт.

32

A21088

GASKET

- cap to cooler, oil and filter assy.

1шт.

33

A21086

COOLER ASSY.

COOLER - oil, filter assy.

1шт.

34

A16529

NIPPLE, LUBE

NIPPLE - oil cooler hose, filter assy.

1шт.

35

A221-1415

ELBOW - 3/4" P.T. x 90 deg. street, oil cooler and filter assy.

1шт.

36

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Oil cooler and filter assy. Hex, 3/8"-16 x 1 3/4", G5

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Oil cooler and filter assy Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

38

92-6

LOCK WASHER,3/8"

oil cooler and filter assy. 3/8"

5шт.

39

A21087

GASKET

- cooler mounting, oil and filter assy.

1шт.

40

A23473

BASE

ASSY. - cooler & filter, oil, Includes: Ref. 41 - 44

1шт.

41

41-1620

PLUG,Cup, 1 1/4", Stainless

- valve spring, relief, oil cooler and filter assy.

2шт.

42

A21091

VALVE SPRING

SPRING - relief valve, oil cooler and filter assy.

2шт.

43

A21090

VALVE

- relief, oil, cooler and filter assy.

2шт.

44

A23655

VALVE

- drain, base, oil cooler and filter assy.

1шт.

A20828

FILTER ASSY. - oil, Includes: Ref. 46 - 51, cooler

1шт.

46

A20822

ENGINE OIL FILTER

ELEMENT KIT - filter, Includes: Ref. 47 - 51, oil cooler

1шт.

47

A20429

GASKET

- filter shell to base, oil cooler assy.

1шт.

48

A20427

VALVE SPRING

SPRING - element retainer, oil cooler and filter assy.

1шт.

49

A20824

SHELL

- filter element, oil cooler and filter assy.

1шт.

50

A20825

PIPE

STAND PIPE - filter mounting, oil cooler and filter assy.

1шт.

51

A20426

GASKET

- washer, stand pipe, oil cooler and filter assy.

1шт.
