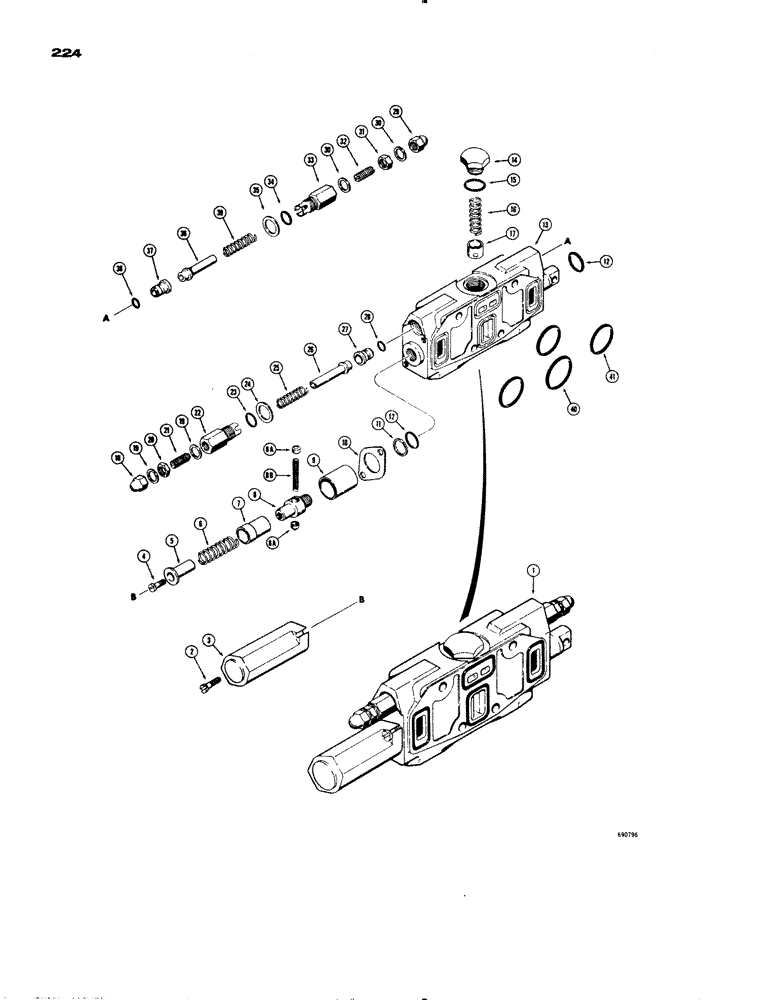

Запчасти Case 1150 (224) - D48841 LOADER TILT SECTION (07) - HYDRAULIC SYSTEM

1

D48841

TILT SECTION - loader control valve, Includes: Ref. 2 - 41

1шт.

2

71-514

SCREW,Slotted Fil Hd, 5/16"-18 x 7/8"

FHMS - 5/16" - 18 NC x 7/8"

2шт.

3

D32459

CAP

- valve

1шт.

4

D39711

SCREW - fillister head, special

1шт.

5

R20577

RETAINER - spring, inner

1шт.

6

D32453

SPRING

- centering

1шт.

7

D38604

RETAINER - spring, outer

1шт.

8

R20557

RETAINER

1шт.

8a

D30116

SPOOL

POPPET

2шт.

8b

D48845

SPRING - poppet

1шт.

9

D38607

SLEEVE CYLINDER

SLEEVE - retainer

1шт.

10

R20556

PLATE - retaining

1шт.

11

D32215

RING

- backup

1шт.

12

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - "O"ring, 7/8" x 1-1/8" O.D.

2шт.

13

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - tilt section

1шт.

14

39007

CAP

- check valve

1шт.

15

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O"ring, 1" I.D. x 1-3/8" O.D.

1шт.

16

R15308

VALVE SPRING

SPRING - check valve

1шт.

17

D45694

SPOOL

POPPET - check valve

1шт.

D39454

CARTRIDGE

- secondar relief, front (Not preset) Must be set to correct pressure when installed on valve., Includes: Ref. 18 - 28

1шт.

18

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

19

23150

WASHER

GASKET - copper

2шт.

20

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock (3/8" - 24 NF)

1шт.

21

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

23

D26872

O-RING

SEAL - "O"ring, 1/2" I.D. x 5/8" O.D

1шт.

24

D31450

WASHER

- gasket

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

D40189

PACKAGE

KIT - seat and poppet, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

27

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

28

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

D42866

VALVE

CARTRIDGE - secondary relief, rear (Not preset) Must be set to correct pressure when installed on valve, Includes: Ref. 29 - 39

1шт.

29

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

30

23150

WASHER

GASKET - copper

2шт.

31

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock (3/8" - 24 NF)

1шт.

32

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

34

D26872

O-RING

SEAL - "O"ring, 1/2" I.D. 5/8" O.D.

1шт.

35

D31450

WASHER

- gasket

1шт.

D42865

VALVE POPPET

KIT - seat and poppet

1шт.

36

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

37

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

38

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

39

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

40

D32127

O-RING

SEAL - "O"ring, 1-13/16" I.D. x 2" O.D.

1шт.

41

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O"ring, 1-9/16" I.D. x 1-3/4" O.D.

3шт.
