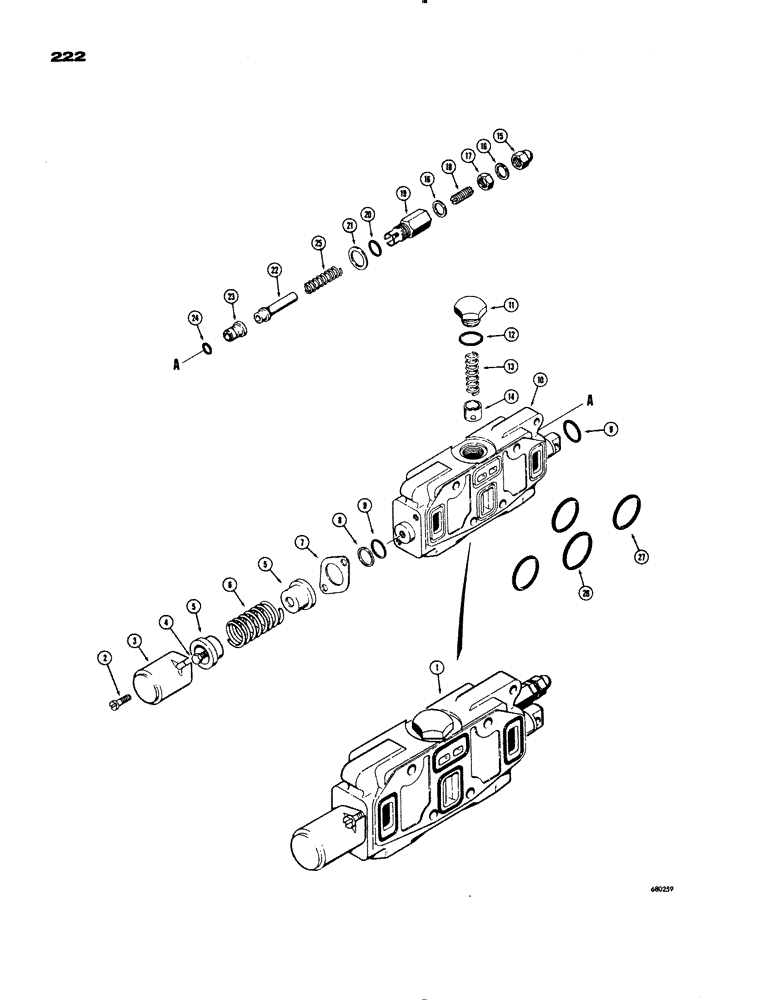

Запчасти Case 1150 (222) - D41533 RIPPER SECTION (07) - HYDRAULIC SYSTEM

1

D41533

VALVE

RIPPER SECTION - equipment control valve, Includes: Ref. 2 - 27

1шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

FHMS - 5/16" - 18 NC x 3/4"

2шт.

3

D32221

COVER

CAP - ripper section

1шт.

4

D32128

BOLT (SPREADER)

BOLT - stripper

1шт.

5

D32130

GUIDE

- spring

2шт.

6

D32129

SPRING

- centering

1шт.

7

R20556

PLATE - retaining

1шт.

8

D32215

RING

- backup

1шт.

9

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - 7/8" I.D. x 1-1/8" O.D.

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - ripper section

1шт.

11

39007

CAP

- check valve

1шт.

12

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O"ring, 1" I.D. x 1-3/8" O.D.

1шт.

13

R15308

VALVE SPRING

SPRING - check valve

1шт.

14

D45694

SPOOL

POPPET - check valve

1шт.

D42866

VALVE

CARTRIDGE - secondary relief (Not preset) Must be set to correct pressure when installed on valve, Includes: Ref. 15 - 25

1шт.

15

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

16

23150

WASHER

GASKET - copper

2шт.

17

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock (3/8" - 24 NF)

1шт.

18

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

20

D26872

O-RING

SEAL - "O"ring, 1/2" I.D. x 5/8" O.D.

1шт.

21

D31450

WASHER

- gasket

1шт.

D42865

VALVE POPPET

KIT - seat and poppet, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

24

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

26

D32127

O-RING

SEAL - "O"ring, 1-13/16" I.D. x 2" O.D.

1шт.

27

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O"ring, 1-9/16" I.D. x 1-3/4" O.D.

3шт.
