Запчасти Case 1150 (214) - VALVE SECTION (07) - HYDRAULIC SYSTEM

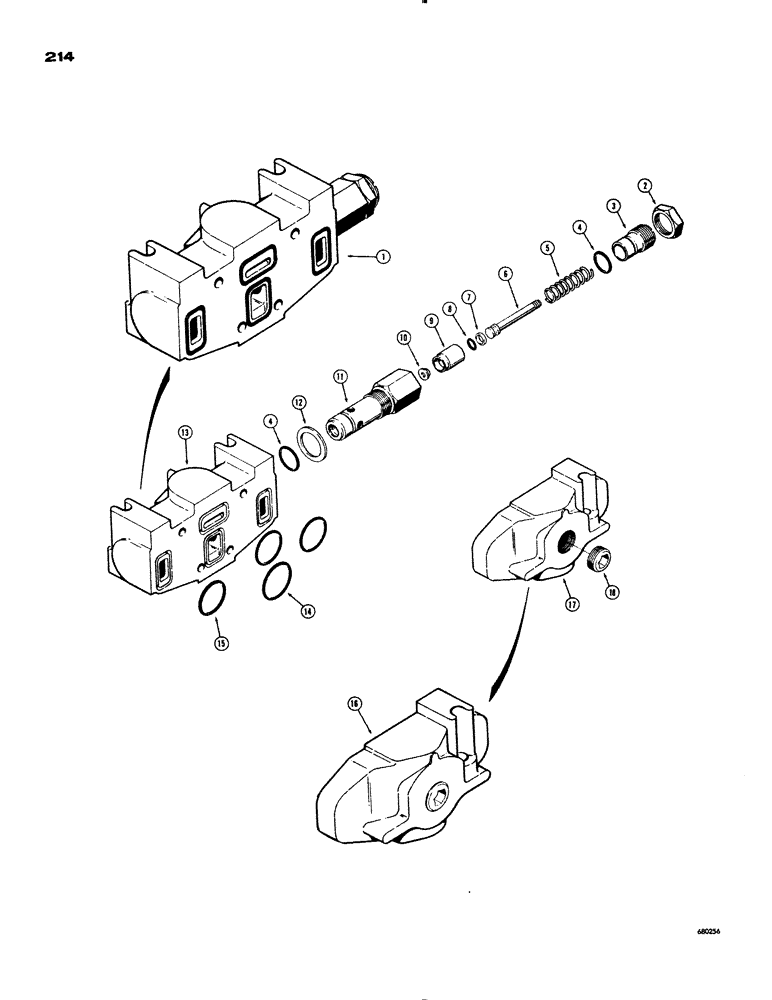

Схема запчастей Case 1150 - (214) - VALVE SECTION (07) - HYDRAULIC SYSTEM
14
5
15
3
17
10
8
13
11
6
12
9
7
18
4
2
4
16
1

Артикул

Название

Примечание

Количество

1

D32112

NO LONGER SERVICED

INLET SECTION - equipment control valve, Includes: Ref. 2 - 12

1шт.

D32126

FILTER

CARTRIDGE - relief

1шт.

2

R12507

LOCK NUT

- lock, adjusting screw

1шт.

3

R21364

SCREW

- spring adjusting

1шт.

4

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O"ring, 7/8" I.D. x 1-1/8" O.D

2шт.

5

D32476

SPRING

- compression

1шт.

6

R16125

PLUNGER

- displacement

1шт.

7

R12509

RING

- backup

1шт.

8

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O"ring, 3/8" I.D. x 9/16" O.D.

1шт.

9

R12510

SEAT

- floating

1шт.

10

R16123

WASHER, THRUST

SNUBBER - check valve

1шт.

11

D39700

KIT

SHELL ASSEMBLY - cartridge

1шт.

12

23146

WASHER

- gasket

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - inlet section

1шт.

14

D32127

O-RING

SEAL - "O"ring, 1-13/16" I.D. x 2" O.D., inlet

1шт.

15

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O"ring, 1-9/16" I.D. x 1-3/4" O.D., inlet

3шт.

16

D38360

VALVE

OUTLET SECTION - equipment control valve, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - outlet section

1шт.

18

221-846

PLUG,Hex Soc, 1"-11 1/2

- pipe, hex, socket head (1" NPT)

1шт.

Выбрано товаров: 19
