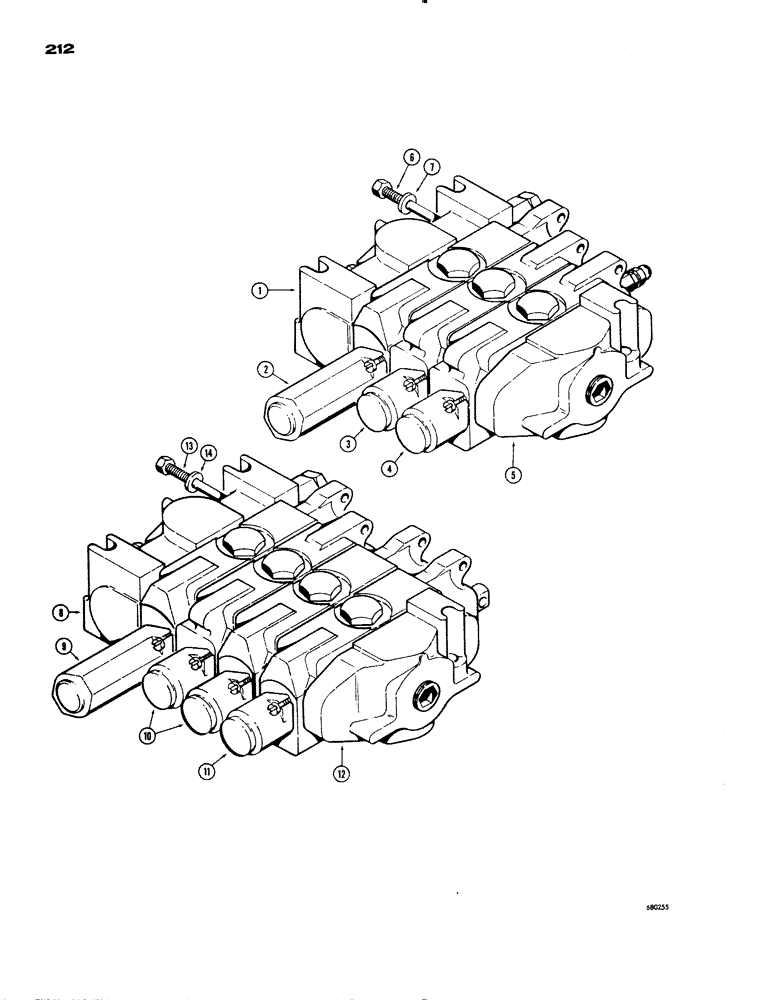

Запчасти Case 1150 (212) - DOZER CONTROL VALVE (07) - HYDRAULIC SYSTEM

D41536

VALVE

- dozer control, 3 spool, Includes: Ref. 1 - 7

1шт.

1

D32112

NO LONGER SERVICED

INLET SECTION - dozer control valve (Parts list Figure 214)

1шт.

2

D38092

LIFT SECTION - dozer control valve (Parts list Figure 220) CS & S No. HP30

1шт.

2

D52443

VALVE

LIFT SECTION - dozer control valve (Parts list Figure 220) CS & S No. SY 1030

1шт.

3

D32123

KNIFE SECTION

ANGLING OR TILT SECTION - dozer control valve (Parts list Figure 220)

1шт.

4

D41533

VALVE

RIPPER SECTION - dozer control valve (Parts list Figure 222)

1шт.

5

D38360

VALVE

OUTLET SECTION - dozer control valve (Parts list Figure 214)

1шт.

6

R20429

STUD

ASSEMBLY - valve

4шт.

7

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

D42607

VALVE - dozer control, 4 spool, Includes: Ref. 8 - 14

1шт.

8

D32112

NO LONGER SERVICED

INLET SECTION - dozer control valve (Parts list Figure 214)

1шт.

9

D38092

LIFT SECTION - dozer control valve (Parts list Figure 220) CS & S No. HP 1030, D42607

1шт.

9

D52443

VALVE

LIFT SECTION - dozer control valve (Parts list Figure 220) CS & S No. SY 1030, D42607

1шт.

10

D32123

KNIFE SECTION

TILT, ANGLING OR PULL BEHIND SECTION - dozer control valve (Parts list Figure 220)

2шт.

11

D41533

VALVE

RIPPER SECTION - dozer control valve (Parts list Figure 222)

1шт.

12

D38360

VALVE

OUTLET SECTION - dozer control valve (Parts list Figure 214

1шт.

13

D36476

STUD

ASSEMBLY - valve

4шт.

14

195-33

WASHER,1/2"

- plain () 1/2"

4шт.
