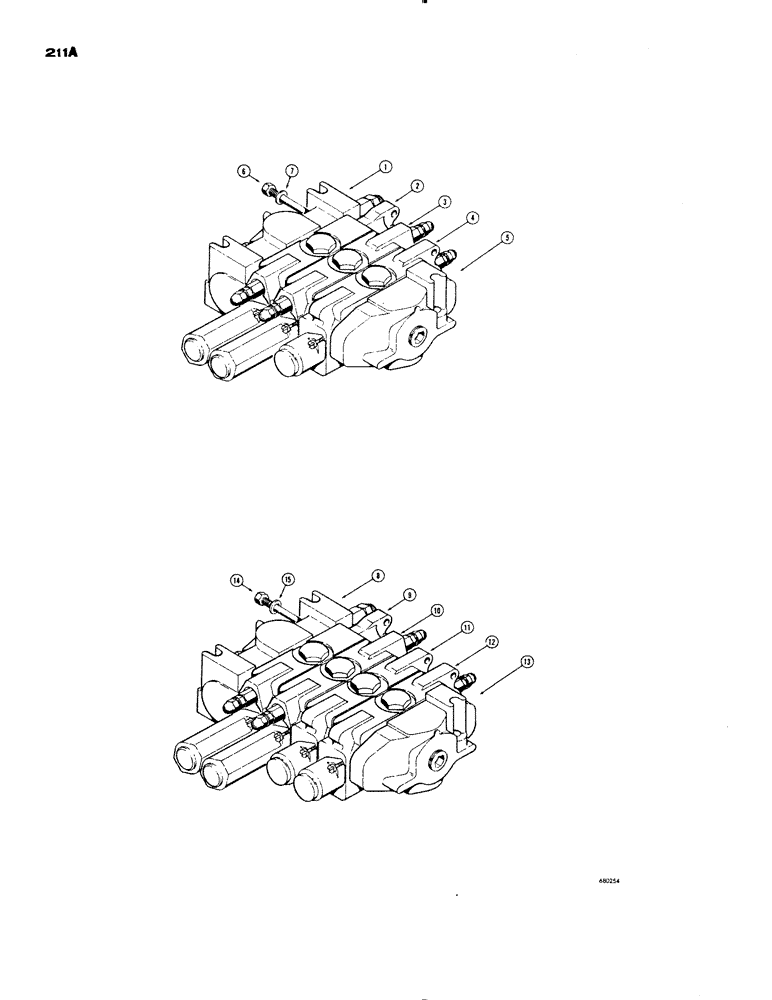

Запчасти Case 1150 (211A) - LOADER CONTROL VALVES, USED AS SERVICE REPLACEMENTS (07) - HYDRAULIC SYSTEM

D49928

LOCK VALVE

VALVE - loader control, 3 spool, Includes: Ref. 1 - 7

1шт.

1

D32112

NO LONGER SERVICED

INLET SECTION - loader control valve (Parts list Figure 214)

1шт.

2

D38365

KNIFE SECTION

LIFT SECTION - loader control valve (Parts list Figure 216)

1шт.

3

D49980

X

TILT SECTION - loader control valve (Part list page 227)

1шт.

4

D41533

VALVE

BUCKET CLAM ON RIPPER SECTION - loader control valve (Parts list Figure 222)

1шт.

5

D38360

VALVE

OUTLET SECTION - loader control valve (Parts list Figure 214)

1шт.

6

R20429

STUD

ASSEMBLY - valve

4шт.

7

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

D49929

VALVE - loader control, 4 spool, Includes: Ref. 8 - 15

1шт.

D52035

HYDRAULIC VALVE

VALVE - loader control, 4 spool, Includes: Ref. 8 - 15

1шт.

8

D32112

NO LONGER SERVICED

INLET SECTION - loader control valve (Parts list Figure 214)

1шт.

9

D38365

KNIFE SECTION

LIFT SECTION - loader control valve (Parts list Figure 216)

1шт.

10

D49980

X

TILT SECTION - loader control valve (Parts list Figure 226)

1шт.

11

D32123

KNIFE SECTION

BUCKET CLAM SECTION - D49929 loader control valve (Parts Figure 220) CS & S No. DA59

1шт.

11

D41533

VALVE

BUCKET CLAM SECTION - D52035 loader control valve (Parts list Figure 222) CS & S No. XDA 1384

1шт.

12

D41533

VALVE

RIPPER SECTION - loader control valve (Parts list Figure 222)

1шт.

13

D38360

VALVE

OUTLET SECTION - loader control valve (Parts list Figure 214)

1шт.

14

D36476

STUD

ASSEMBLY - valve, loader control

4шт.

15

195-33

WASHER,1/2"

- plain () 1/2"

4шт.
