Запчасти Case 1150 (210) - LOADER CONTROL VALVES (07) - HYDRAULIC SYSTEM

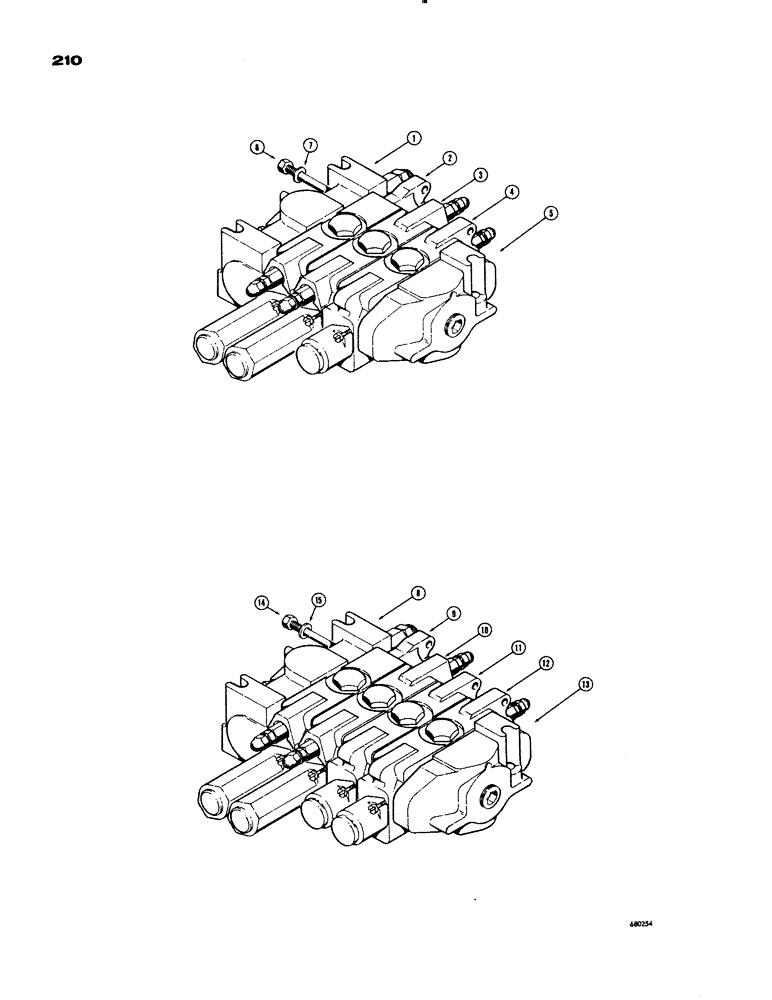

Схема запчастей Case 1150 - (210) - LOADER CONTROL VALVES (07) - HYDRAULIC SYSTEM
8
14
6
13
3
5
11
10
4
2
1
15
7
9
12

№

Артикул

Название

Примечание

Количество

D41534

VALVE - loader control, 3 spool (When stock is exhausted, use D49928 valve - parts list Figure 211A), Includes: Ref. 1 - 7

1шт.

1

D32112

NO LONGER SERVICED

INLET SECTION - loader control valve (Parts list Figure 214)

1шт.

2

D38365

KNIFE SECTION

LIFT SECTION - loader control valve (Parts list Figure 216)

1шт.

3

D39453

TILT SECTION - loader control valve (Parts list Figure 218) Original equipment, CS and S No. LW. 1030.

1шт.

3

D48841

TILT SECTION - loader control valve (Parts list Figure 224) CS & S No. LW 1030-1

1шт.

3

D49980

X

TILT SECTION - loader control valve (Parts list Figure 211A) CS & S No. LW 1030-2

1шт.

4

D41533

VALVE

BUCKET CLAM OR RIPPER SECTION - loader control valve (Parts list Figure 222)

1шт.

5

D38360

VALVE

OUTLET SECTON - loader control valve (Parts list Figure 214)

1шт.

6

R20429

STUD

ASSEMBLY - valve, loader control

4шт.

7

195-33

WASHER,1/2"

- plain (), D41534 loader control valve 1/2"

4шт.

D41535

LOCK VALVE

VALVE - loader control, 4 spool (When stock is exhausted, use D49929 valve - parts list Figure 210), Includes: Ref. 8 - 15

1шт.

8

D32112

NO LONGER SERVICED

INLET SECTION - loader control valve (Parts list Figure 214)

1шт.

9

D38365

KNIFE SECTION

LIFT SECTION - loader control valve (Parts list Figure 216)

1шт.

10

D39453

TILT SECTION - loader control valve (Parts list Figure 218) Original equipment, CS & S No. LW 1030

1шт.

10

D48841

TILT SECTION - loader control valve (Parts list Figure 224) CS & S No. LW 1030-1

1шт.

10

D49980

X

TILT SECTION - loader control valve (Parts list Figure 211A) CS & S No. LW 1030-2

1шт.

11

D32123

KNIFE SECTION

BUCKET CLAM SECTION - loader control valve (Parts list Figure 220)

1шт.

12

D41533

VALVE

RIPPER SECTION - loader control valve (Parts list Figure 222)

1шт.

13

D38360

VALVE

OUTLET SECTION - loader control valve (Parts list Figure 214)

1шт.

14

D36476

STUD

ASSEMBLY - valve

4шт.

15

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

Выбрано товаров: 21
