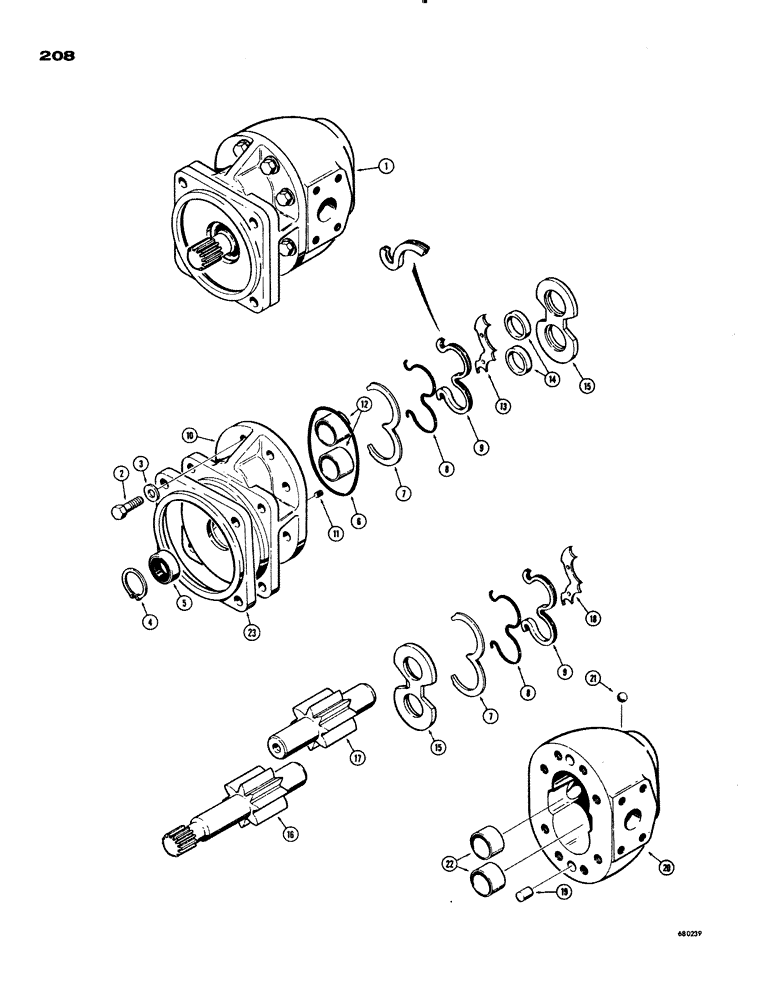

Запчасти Case 1150 (208) - D43382 DOZER PUMP (07) - HYDRAULIC SYSTEM

1

D43382

HYDRAULIC PUMP

PUMP - hydraulic, 49 G.P.M. at 2000 R.P.M. at 2000 P.S.I. (Tyrone #20300C-HZ), Includes: Ref. 2 - 23

1шт.

2

113-405

X

HHCS - 1/2" - 13 NC x 1-1/4"

8шт.

3

D41413

WASHER

- special

8шт.

D41406

GASKET KIT

KIT - pump seal, rebuild, Includes: Ref. 4 - 9

1шт.

4

D41419

RING

- snap

1шт.

5

D41418

SEAL

- drive shaft

1шт.

6

D43797

SEAL

- "O"ring, cover

1шт.

7

D44102

RING

- retaining

2шт.

8

D44103

SEAL

- "O"ring, strip

2шт.

9

D44099

RING

- backup

2шт.

D41405

NO LONGER SERVICED

COVER ASSEMBLY - pump, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

11

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex, socket head (1/8" NPT)

1шт.

12

D52489

BUSHING

- cover (Replaced D42855)

2шт.

13

D44101

PLATE

- isolation, top

1шт.

14

D43796

SPACER

RING - steel

2шт.

15

D42856

PLATE

- pressure

2шт.

D43030

GEAR

SHAFT AND GEAR SET - drive and driven, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR - drive

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

18

D44100

PLATE

- isolation, bottom

1шт.

19

D41414

PIN

DOWEL -, Serial Range: body-cover

2шт.

D44104

BODY

ASSEMBLY - pump

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - pump, Includes: Ref. 20 - 22

1шт.

21

211-5

BALL,3/16" Dia

- steel, . 3/16" Dia

1шт.

22

D52489

BUSHING

- body (Replaced D42855)

2шт.

23

D44127

PLATE

- adapter

1шт.
