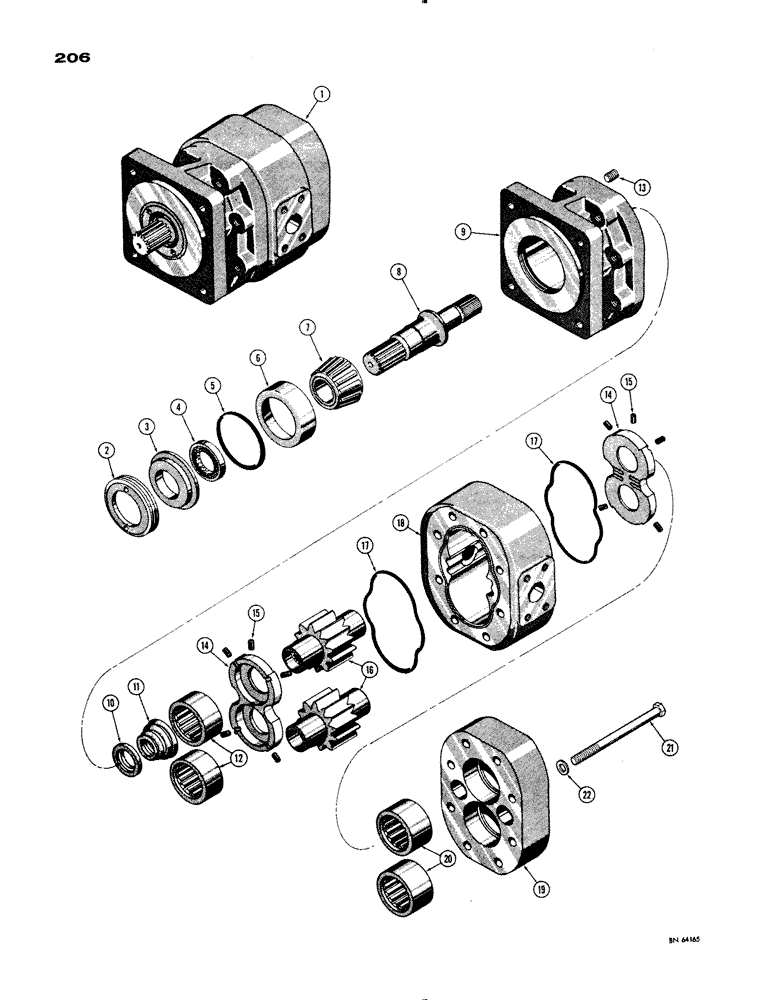

Запчасти Case 1150 (206) - D43363 LOADER PUMP (07) - HYDRAULIC SYSTEM

1

D43363

PUMP

- hydraulic, 52 G.P.M. at 1850 R.P.M. at 1650 PSI (Commercial Shearing #C-P37X-154), Includes: Ref. 2 - 22

1шт.

2

A16792

NUT

RING - retainer

1шт.

3

A16791

RETAINER

- seal

1шт.

4

A16796

SEAL

- oil

1шт.

5

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

6

A16794

BEARING CUP

CUP - tapered roller bearing

1шт.

7

A16795

ROLLER BEARING,1.375" ID x 1.125"

CONE - tapered roller bearing

1шт.

8

A16799

SHAFT

- pump drive

1шт.

D29623

COVER

ASSEMBLY - shaft end, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

COVER - shaft

1шт.

10

A16789

BUSHING

- shaft

1шт.

11

A16790

SPRING

1шт.

12

A16793

NEEDLE BEARING

BEARING - roller

2шт.

13

D48900

PLUG

SCREW - set, hex socket (7/16" - 20 NF x 3/8")

1шт.

14

A16800

PLATE

- thrust

2шт.

15

D35672

SEAL

- pocket, strip (Cut to proper length as required for service)

1шт.

16

D44128

GEAR

S - matched set (Drive and driven)

1шт.

17

L30686

GASKET

SEAL - "O"ring

2шт.

18

D45247

HOUSING

- gear

1шт.

D29550

COVER

ASSEMBLY - port end, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

COVER - port

1шт.

20

A16793

NEEDLE BEARING

BEARING - roller

2шт.

21

113-455

HHCS - 1/2" - 13 NC x 6-1/2"

8шт.

22

D30694

WASHER - special

8шт.
