(205E) - CYLINDER PACKING KITS

Запчасти Case 1150 (205E) - CYLINDER PACKING KITS (07) - HYDRAULIC SYSTEM

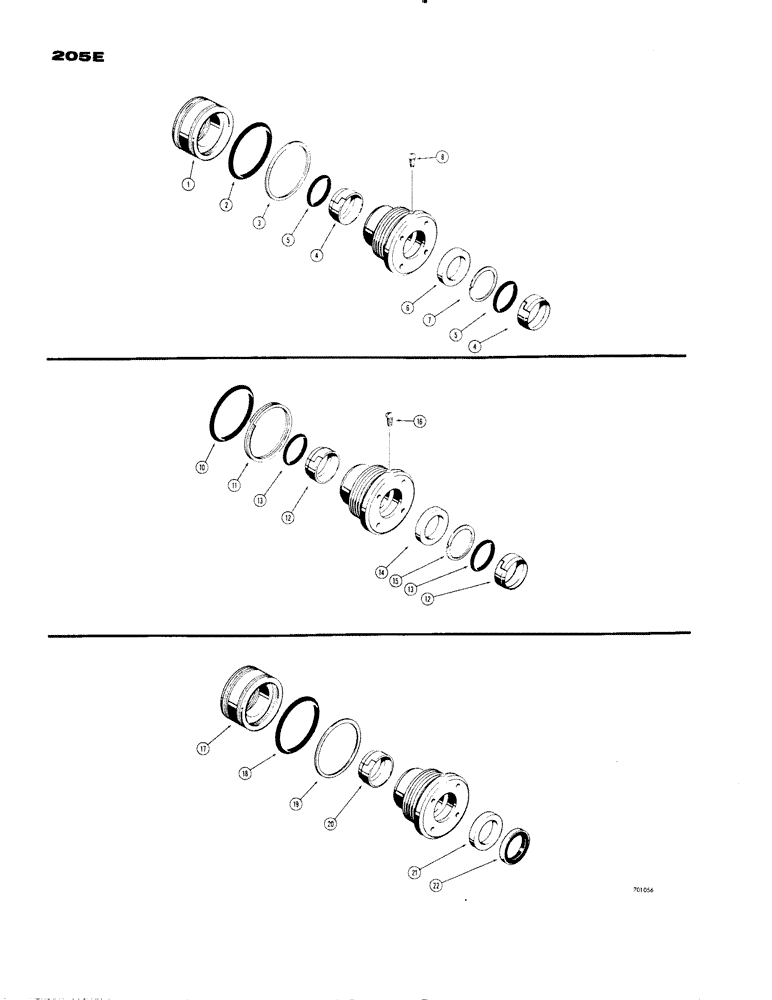

Схема запчастей Case 1150 - (205E) - CYLINDER PACKING KITS (07) - HYDRAULIC SYSTEM
4
11
5
19
18
3
21
8
12
20
1
6
10
13
12
15
22
13
16
14
7
17
2
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D44109

KIT

- packing, cylinder, Includes: Ref. 1 - 6, used in loader tilt cyilinder with 5" cylinder tube and 2-1/4" dia. piston rod

1шт.

1

D39360

WIPER

- rod

1шт.

2

D38939

PISTON

PACKING - piston rod

1шт.

3

D38940

RING

- backup, piston packing

1шт.

4

D42453

RING

- backup, gland seal

1шт.

5

D36183

O-RING,5.109" ID x 5.387" OD

SEAL - "O"ring, gland

1шт.

6

D47206

PACKING

- piston, chevron

2шт.

D44117

KIT

- cylinder packing, Includes: Ref. 1 - 7, used in loader lift cylinders with 5-1/2" cylinder tube and 2-1/2" dia. piston rod

1шт.

1

D47207

GASKET KIT

PACKING - piston, chevron

2шт.

2

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

3

D42454

RING

- backup, gland seal

1шт.

4

D36172

WASHER

RING - backup, piston packing

1шт.

5

D36108

PACKING

- piston rod

1шт.

6

D43162

WIPER

- rod, step type

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - rod, U-type

1шт.
