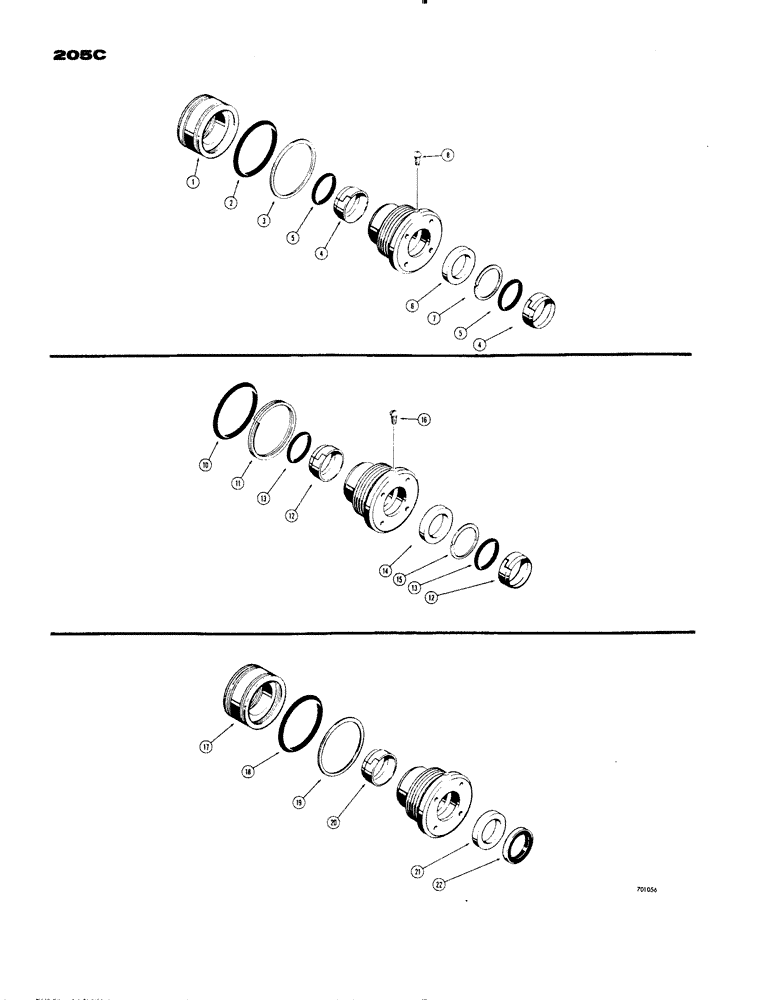

Запчасти Case 1150 (205C) - CYLINDER PACKING KITS, USED IN RIPPER CYLINDER WITH, 4" CYLINDER TUBE & 2" DIA. PISTON ROD (07) - HYDRAULIC SYSTEM

D37358

GLAND

KIT - cylinder packing (When stock is exhausted, order D42876 kit for service - plus D36964 packing if total piston packing is required., Includes: Ref. 1 - 9

1шт.

1

D36964

PACKING

- piston

1шт.

2

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

3

D27382

RING

- backup, gland seal

1шт.

4

D27380

SCRAPER RING

WIPER - rod

2шт.

5

D26155

SEAL - "O"ring, wiper (If used)

2шт.

6

D36971

RING

SEAL - rod

1шт.

7

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

9

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, , Not shown (Not used on this model) 1 1/4"-12, GB

1шт.

D42876

GLAND

KIT - gland packing, Includes: Ref. 10 - 16

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

11

D27382

RING

- backup, gland seal

1шт.

12

D27380

SCRAPER RING

WIPER - rod

2шт.

13

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used)

2шт.

14

D36971

RING

SEAL - rod

1шт.

15

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

16

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

G32614

SEAL KIT

KIT - cylinder packing, Includes: Ref. 17 - 22

1шт.

17

D36964

PACKING

- piston, chevron

2шт.

18

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

19

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland seal

1шт.

20

D27380

SCRAPER RING

WIPER - rod, inner

1шт.

21

D36971

RING

SEAL - rod

1шт.

22

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod, outer

1шт.
