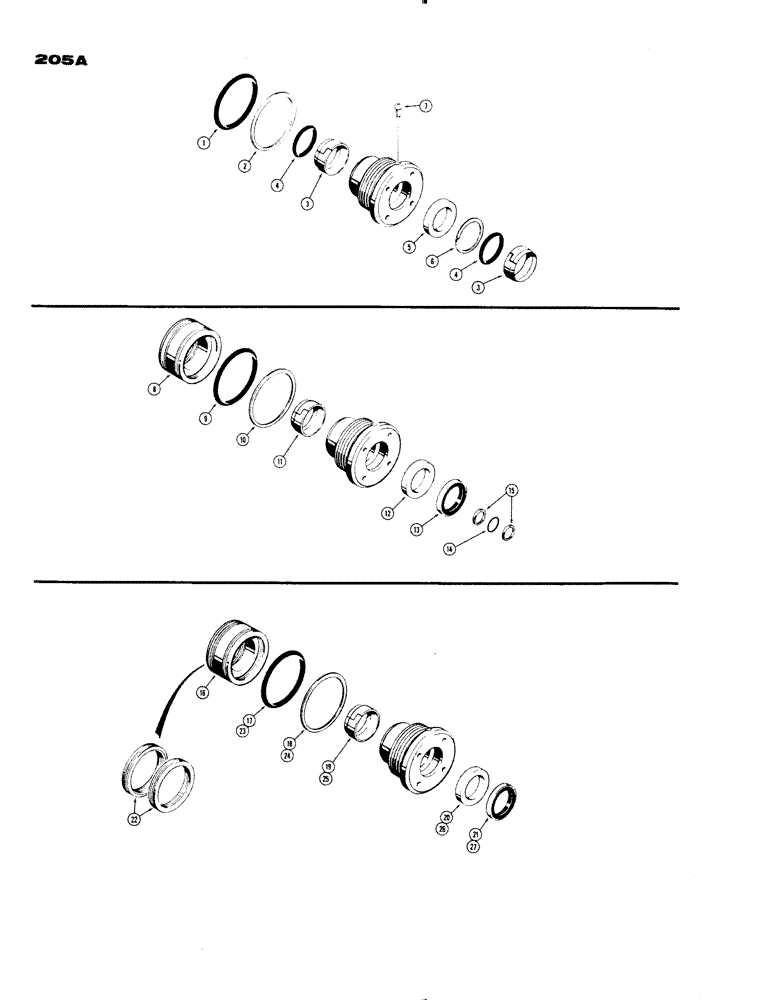

Запчасти Case 1150 (205A) - CYLINDER PACKING KITS, USED IN DOZER LIFT & TILT CYLINDERS W/ 3-1/2" CYLINDER TUBE (07) - HYDRAULIC SYSTEM

D42873

GASKET KIT

KIT - gland packing, Includes: Ref. 1 - 7

1шт.

1

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

2

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

3

D27432

SHIM

- rod

2шт.

4

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper

2шт.

5

D36970

CUP

SEAL - rod

1шт.

6

D28499

RING

- backup, rod seal

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

G32627

CYLINDER

KIT - packing, cylinder, Includes: Ref. 8 - 15

1шт.

8

D36963

PACKING

- piston

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland seal

1шт.

11

D27432

SHIM

- rod, inner

1шт.

12

D36970

CUP

SEAL - rod

1шт.

13

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

14

A7892

BEARING, CUP

SEAL - "O"ring

1шт.

15

G32626

RING

- backup

2шт.

G32291

CYLINDER

KIT - cylinder packing, Includes: Ref. 16 - 21

1шт.

16

D36963

PACKING

- piston

1шт.

17

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

18

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland seal

1шт.

19

D27432

SHIM

- rod, inner

1шт.

20

D36970

CUP

SEAL - rod

1шт.

21

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

G32298

SEAL

KIT - cylinder packing, Includes: Ref. 22 - 27

1шт.

22

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, chevron

2шт.

23

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

24

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland seal

1шт.

25

D27432

SHIM

- rod, inner

1шт.

26

D36970

CUP

SEAL - rod, G32298

1шт.

27

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.
