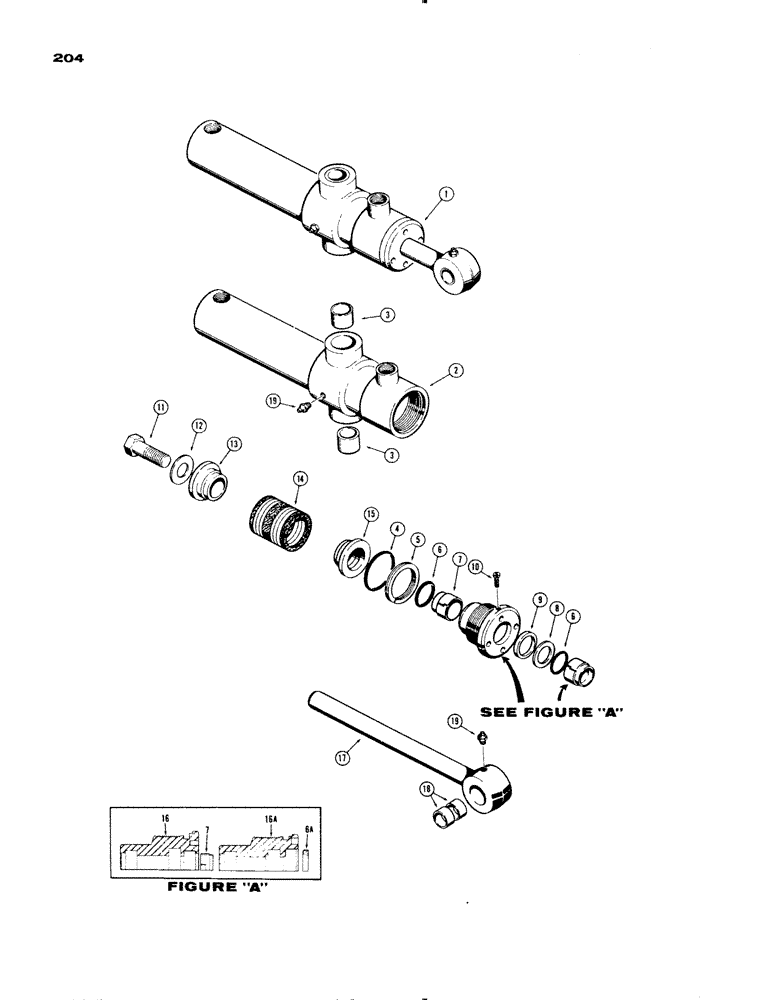

Запчасти Case 1150 (204) - RIPPER CYLINDERS (07) - HYDRAULIC SYSTEM

1

D36345

CYLINDER - hydraulic, ripper (4" I.D. x 13" stroke), Includes: Ref. 2 - 19, uses split snap in outer rod wiper

1шт.

This cylinder uses D37358 Gland Packing Kit. For Kit components, see Figure 205C.

1шт.

2

D36433

TUBE

- cylinder, Includes: Ref. 3

1шт.

3

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tube

2шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

5

D27382

RING

- backup, gland seal

1шт.

6

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring, wiper (Used with D27386 gland only)

2шт.

7

D27380

SCRAPER RING

WIPER - rod

2шт.

8

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

9

D36971

RING

SEAL - piston rod

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

11

D31642

BOLT

- special

1шт.

12

G32351

WASHER

- bolt (Replaced D95033)

1шт.

13

D46930

PISTON

- split, bolt end

1шт.

14

D36964

PACKING

- piston

1шт.

15

D46424

PISTON

- split, eye end

1шт.

16

D27386

HEAD

GLAND - packing (When stock is exhausted, use D45071 gland for service)

1шт.

16a

G32737

GLAND

- packing (Replaced D45071)

1шт.

17

D36428

PISTON ROD

ROD - piston (2" dia.), Includes: Ref. 18

1шт.

18

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- rod

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

1

G32585

HYDRAULIC CYLINDER

CYLINDER - hydraulic, ripper (4" I.D. x 13" stroke), Includes: Ref. 18, uses press in outer rod wiper

1шт.

This cylinder uses G32614 Cylinder Packing Kit. For Kit components see Figure 205C.

1шт.

2

D36433

TUBE

- cylinder, Includes: Ref. 3

1шт.

3

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tube

2шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

5

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland seal

1шт.

6

NOT REQUIRED

1шт.

6a

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod, outer

1шт.

7

D27380

SCRAPER RING

WIPER - rod, inner

1шт.

8

NOT REQUIRED

1шт.

9

D36971

RING

SEAL - piston rod

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

11

D31642

BOLT

- special

1шт.

12

G32351

WASHER

- bolt

1шт.

13

D46930

PISTON

- split, bolt end

1шт.

14

D36964

PACKING

- piston

1шт.

14b

G33239

PACKING

1шт.

15

D48424

PISTON - split, eye end

1шт.

16a

G32737

GLAND

- packing (Replaced G32113)

1шт.

16b

G32739

GLAND

1шт.

17

D36428

PISTON ROD

ROD - piston (2" dia.), Includes: Ref. 18

1шт.

18

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- rod

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.
