Запчасти Case 1150 (202) - DOZER LIFT CYLINDERS (07) - HYDRAULIC SYSTEM

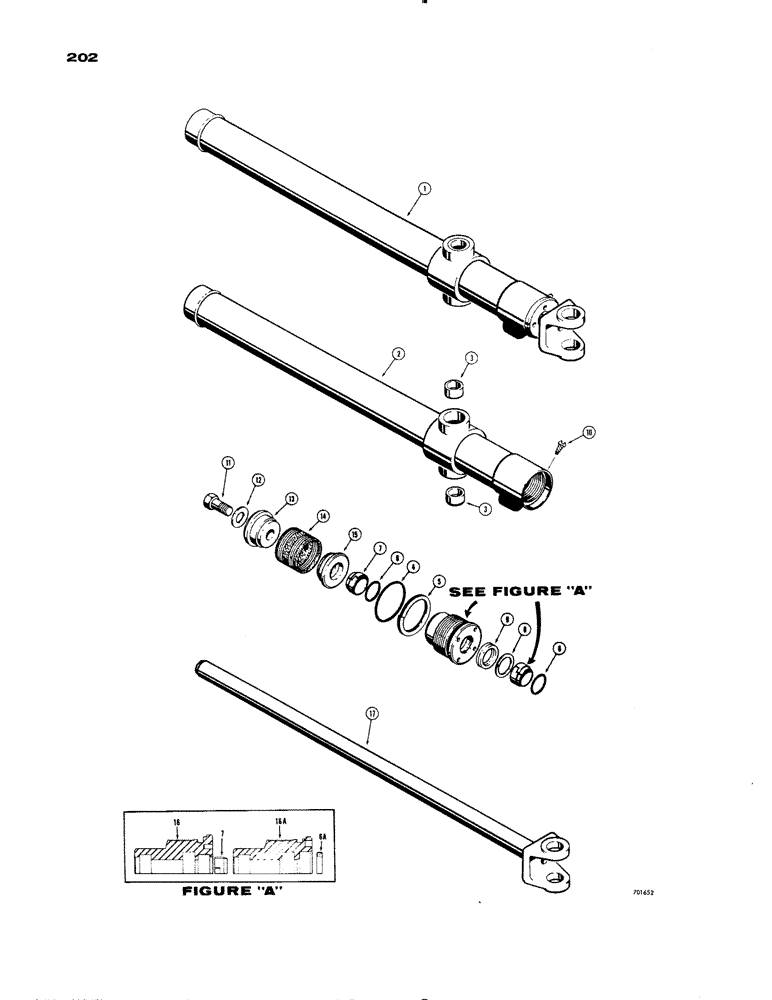

Схема запчастей Case 1150 - (202) - DOZER LIFT CYLINDERS (07) - HYDRAULIC SYSTEM
1
16a
15
6a
11
7
4
17
12
10
14
2
7
5
13
3
3
16

Артикул

Название

Примечание

Количество

1

D40162

CYLINDER

- dozer lift (3-1/2" I.D. x 31-1/2" stroke), Includes: Ref. 2 - 17, uses split snap in outer rod wiper

2шт.

This cylinder uses D42873 Gland Packing Kit. For Kit components, see Figure 205A.

1шт.

2

D40161

TUBE

- cylinder (Used in D40162 cylinder), Includes: Ref. 3

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube

2шт.

4

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

5

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup

1шт.

6

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper (Used with D27431 gland only)

2шт.

7

D27432

SHIM

- rod

2шт.

8

D28499

RING

- backup

1шт.

9

D36970

CUP

PACKING - piston rod

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

11

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

- Special, Rod (Replaces D32861) Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

12

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- bolt

1шт.

13

D28367

PISTON

- split, bolt end

1шт.

14

D36963

PACKING

- piston

1шт.

15

D28369

PISTON

- split, yoke end

1шт.

16

D27431

GLAND

- packing (When stock is exhausted, use D45069 gland for service)

1шт.

D45069

GLAND

- packing

1шт.

17

D36240

PISTON ROD

ROD - piston (1-3/4" dia.)

1шт.

1

G32600

CYLINDER

- lift (3-1/2" I.D. x 31-1/2" stroke), Includes: Ref. 2 - 17, uses press in outer rod wiper

1шт.

This cylinder uses G32291 Cylinder Packing Kit. For Kit components, see Figure 205A.

1шт.

2

D40161

TUBE

- cylinder, uses press in outer rod wiper

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tubes, uses press in outer rod wiper

2шт.

4

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland, uses press in outer rod wiper

1шт.

Included in G32739 Gland Assembly.

1шт.

5

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, uses press in outer rod wiper

1шт.

Included in G32739 Gland Assembly.

1шт.

6

NOT REQUIRED

1шт.

6a

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer, uses press in outer rod wiper

1шт.

Included in G32739 Gland Assembly.

1шт.

7

D27432

SHIM

- rod, inner, uses press in outer rod wiper

1шт.

Included in G32739 Gland Assembly.

1шт.

8

NOT REQUIRED

1шт.

9

D36970

CUP

PACKING - piston rod, uses press in outer rod wiper

1шт.

Included in G32739 Gland Assembly.

1шт.

10

137-1031

SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper

1шт.

11

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

- Special, Rod (Replaces D32861), Uses press in outer rod wiper Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

12

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special, uses press in outer rod wiper

1шт.

13

D28367

PISTON

- split, bolt end, uses press in outer rod wiper

1шт.

14

D36963

PACKING

- piston, uses press in outer rod wiper

1шт.

15

D28369

PISTON

- split, yoke end, uses press in outer rod wiper

1шт.

16a

NSS

NOT SOLD SEPARAT

GLAND - packing (Use G32743 gland assembly for service), uses press in outer rod wiper

1шт.

Included in G32739 Gland Assembly.

1шт.

17

D36240

PISTON ROD

ROD - piston (1-3/4" dia.), uses press in outer rod wiper

1шт.
