Запчасти Case 1150 (198) - TILT CYLINDERS (POWER ANGLE TILT DOZER) (07) - HYDRAULIC SYSTEM

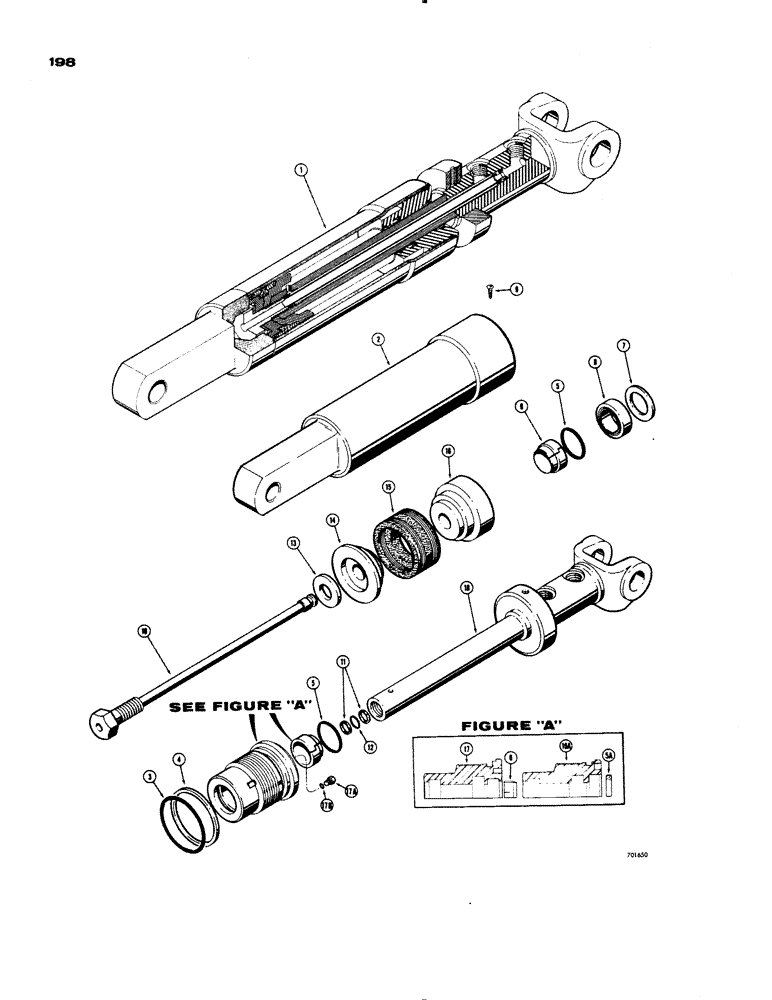

Схема запчастей Case 1150 - (198) - TILT CYLINDERS (POWER ANGLE TILT DOZER) (07) - HYDRAULIC SYSTEM
6
12
3
8
15
2
5
17a
13
17b
11
1
17
14
5
5a
7
4
10
6
9

Артикул

Название

Примечание

Количество

1

D46828

CYLINDER

- tilt (3-1/2" I.D. x 6" stroke) Std. track dozer, Includes: Ref. 2 - 18, uses split snap in outer rod wiper

2шт.

This cylinder uses D42873 Gland Packing Kit. For Kit components, see Figure 205A.

1шт.

1

D44194

NO LONGER SERVICED

CYLINDER - tilt (3-1/2" I.D. x 6" stroke) Wide track dozer, Includes: Ref. 2 - 18, uses split snap in outer rod wiper

2шт.

This cylinder uses D42873 Gland Packing Kit. For Kit components, see Figure 205A.

1шт.

2

D46827

CYLINDER

TUBE - cylinder (Used with D46828 cylinder only)

1шт.

2

D44195

TUBE - cylinder (Used with D44194 cylinder only)

1шт.

3

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

4

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup

1шт.

5

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used)

2шт.

6

D27432

SHIM

- rod

2шт.

7

D28499

RING

- backup, piston packing

1шт.

8

D36970

CUP

PACKING - piston rod

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

10

D42525

TUBE

- hydraulic, piston rod (Inner)

1шт.

11

D34938

BACK-UP RING,0.827" OD

- backup

2шт.

12

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special

1шт.

14

D28367

PISTON

- split, closed end

1шт.

15

D36963

PACKING

- piston

1шт.

16

D42528

PISTON

- split, yoke end

1шт.

17

G32739

GLAND

- packing

1шт.

17a

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

- bleeder, Includes: Ref. 17B

1шт.

17b

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

18

D42520

PISTON ROD

ROD - piston (1-3/4" dia.)

1шт.

1

G32623

HYDRAULIC CYLINDER

CYLINDER - tilt (3-1/2" I.D. x 6" stroke) Standard track dozer, Includes: Ref. 2 - 18, uses press in outer rod wiper

2шт.

This cylinder uses G32627 Cylinder Packing Kit. For Kit components, see Figure 205A.

1шт.

1

G32624

CYLINDER

- tilt (3-1/2" I.D. x 6" stroke) Wide track dozer, Includes: Ref. 2 - 18, uses press in outer rod wiper

2шт.

This cylinder uses G32627 Cylinder Packing Kit. For Kit components, see Figure 205A.

1шт.

2

D46827

CYLINDER

TUBE - cylinder (Used with G32623 cylinder only)

1шт.

2

D50200

TUBE

- cylinder (Used with G32624 cylinder only)

1шт.

3

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

Included in G32739 Gland Assembly.

1шт.

4

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Included in G32739 Gland Assembly.

1шт.

5

NOT REQUIRED

1шт.

5a

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

2шт.

Included in G32739 Gland Assembly.

1шт.

6

D27432

SHIM

- rod, inner

1шт.

Included in G32739 Gland Assembly.

1шт.

7

NOT REQUIRED

1шт.

8

D36970

CUP

PACKING - piston rod

1шт.

Included in G32739 Gland Assembly.

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

10

D42525

TUBE

- hydraulic, piston rod (Inner)

1шт.

11

G32626

RING

- backup

2шт.

12

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special

1шт.

14

D28367

PISTON

- split, closed end

1шт.

15

D36963

PACKING

- piston

1шт.

16

D42528

PISTON

- split, yoke end

1шт.

16a

NSS

NOT SOLD SEPARAT

GLAND - packing (Use G32739 gland assembly for service)

1шт.

Included in G32739 Gland Assembly.

1шт.

17a

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

- bleeder

1шт.

17b

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

18

D42520

PISTON ROD

ROD - piston (1-3/4" dia.)

1шт.
