Запчасти Case 1150 (190) - LOADER LIFT CYLINDERS (07) - HYDRAULIC SYSTEM

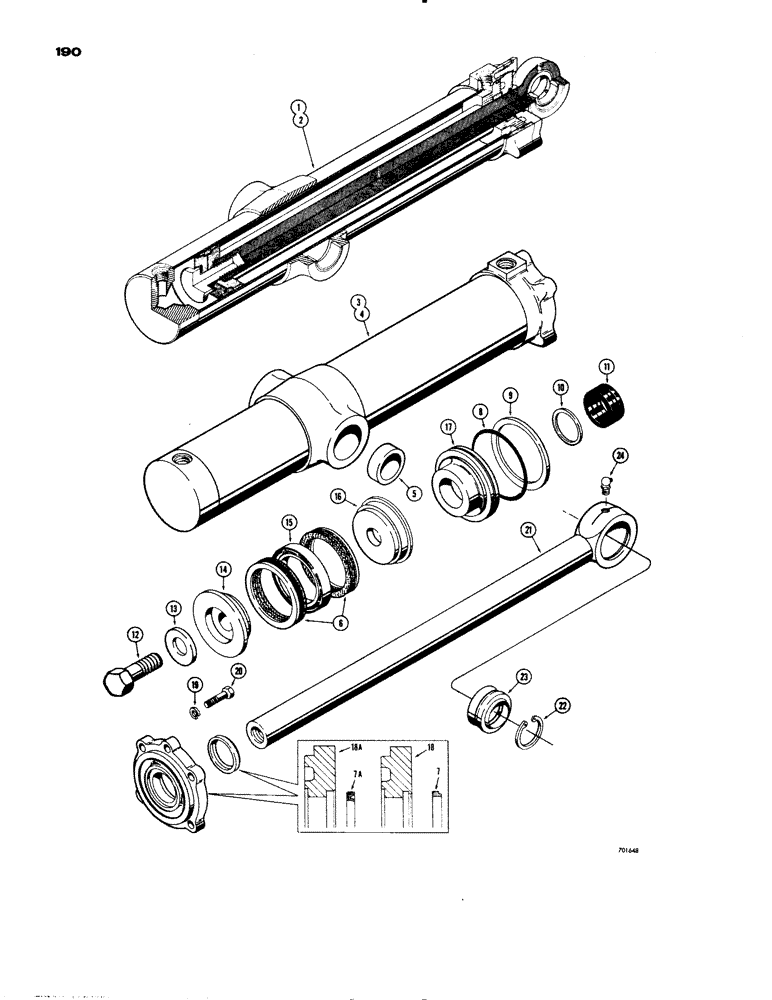

Схема запчастей Case 1150 - (190) - LOADER LIFT CYLINDERS (07) - HYDRAULIC SYSTEM
3
18
14
19
20
8
4
10
2
15
16
24
17
1
5
13
22
21
18a
12
7
23
11
7a
9
6

Артикул

Название

Примечание

Количество

1

D43353

CYLINDER

- loader lift, R.H. (5-1/2" I.D. x 30-1/2" stroke) When stock is exhausted, use D49529 cylinder., Includes: Ref. 3 - 24

1шт.

This cylinder uses D44117 Gland Packing Kit. For kit components, see Figure 205E.

1шт.

1

G33814

CYLINDER

- loader lift, R.H. (5-1/2" I.D. x 30-1/2" stroke) (Replaced D49529), Includes: Ref. 3 - 24

1шт.

This cylinder uses D44117 Gland Packing Kit. For kit components, see Figure 205E.

1шт.

2

D43352

CYLINDER

- loader lift, L.H. (5-1/2" I.D. x 30-1/2" stroke) When stock is exhausted, use D49528 cylinder., Includes: Ref. 3 - 24

1шт.

This cylinder uses D44117 Gland Packing Kit. For kit components, see Figure 205E.

1шт.

2

G33815

CYLINDER BLOCK

CYLINDER - loader lift, L.H. (5-1/2" I.D. x 30-1/2" stroke) (Replaced D49528), Includes: Ref. 3 - 24

1шт.

This cylinder uses D44117 Gland Packing Kit. For kit components, see Figure 205E.

1шт.

3

D36153

TUBE - cylinder, R.H., Includes: Ref. 5

1шт.

4

D36154

TUBE

- cylinder, L.H., Includes: Ref. 5

1шт.

5

D33635

BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L

- tube

2шт.

6

D47207

GASKET KIT

PACKING - piston

2шт.

7

D43162

WIPER

- rod, step type (Used with D24431 cap)

1шт.

7a

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - rod, U-type (Used with D49510 cap)

1шт.

8

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D42454

RING

- backup

1шт.

10

D36172

WASHER

RING - backup, piston packing

1шт.

11

D36108

PACKING

- piston rod

1шт.

12

D36104

BOLT

- special, rod

1шт.

13

D36478

WASHER

- bolt

1шт.

14

D36110

PISTON

- split, bolt end

1шт.

15

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING - piston packing

1шт.

16

D36109

PISTON

- split, rod end

1шт.

17

D43225

PACKING

GLAND - packing

1шт.

18

D43226

CAP

- cylinder end (See illustration for identification) When stock is exhausted, use D49510 cap and D95146 wiper

1шт.

18a

D49510

CAP

- cylinder end (See illustration for identification)

1шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

20

114-621

BOLT

HHCS - 5/8" - 18 NF x 1-3/4"

5шт.

21

D36146

ROD

- piston (2-1/2" dia.), Includes: Ref. 22 and 23

1шт.

22

NLS

NO LONGER SERVICED

3.156", Int, #315

2шт.

23

D23601

HOUSING

BUSHING - self-aligning

1шт.

24

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

Выбрано товаров: 32
