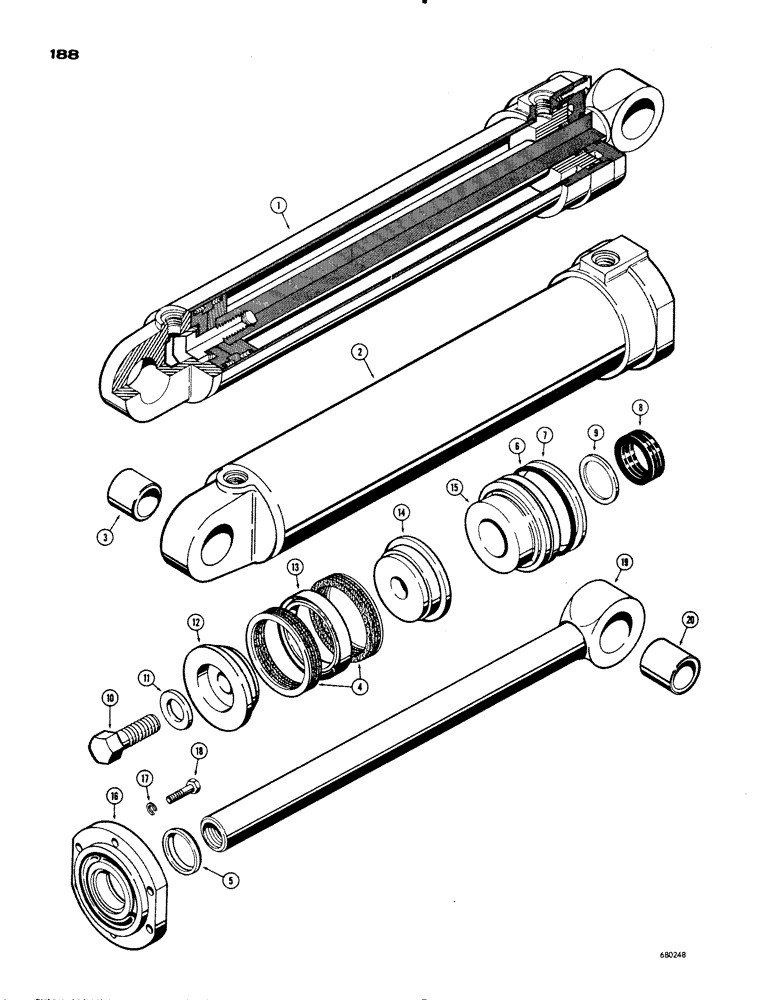

Запчасти Case 1150 (188) - LOADER TILT CYLINDERS, USES PRESS IN "STEP" TYPE OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D49177

CYLINDER

- hydraulic loader tilt (5" I.D. x 23-1/2" stroke), Includes: Ref. 2 - 20

2шт.

This cylinder uses D44109 Gland Packing Kit. For kit components see Figure 205E.

1шт.

2

D36319

TUBE

- cylinder, Includes: Ref. 3

1шт.

3

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- tube

1шт.

4

D47206

PACKING

- piston

2шт.

5

D39360

WIPER

- rod

1шт.

6

D36183

O-RING,5.109" ID x 5.387" OD

SEAL - "O"ring, gland

1шт.

7

D42453

RING

- backup

1шт.

8

D38939

PISTON

PACKING - piston rod

1шт.

9

D38940

RING

- backup, piston packing

1шт.

10

D43746

SCREW,Hex, 1 1/4" - 12 x 3.50", Gr 8

BOLT - special, rod

1шт.

11

D95033

WASHER

- bolt

1шт.

12

D46932

PISTON

- split, bolt end

1шт.

13

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - bronze, piston packing

1шт.

14

D46426

PISTON

- split, rod end

1шт.

15

D43157

GLAND

- packing

1шт.

16

D43156

CAP - cylinder end

1шт.

17

92-8

LOCK WASHER,1/2"

6шт.

18

114-424

X

HHCS - 1/2" - 20 NF x 1-3/4"

6шт.

19

D43152

ROD

- piston (2-1/4" dia), Includes: Ref. 20

1шт.

20

D43223

BUSHING

- rod

1шт.
