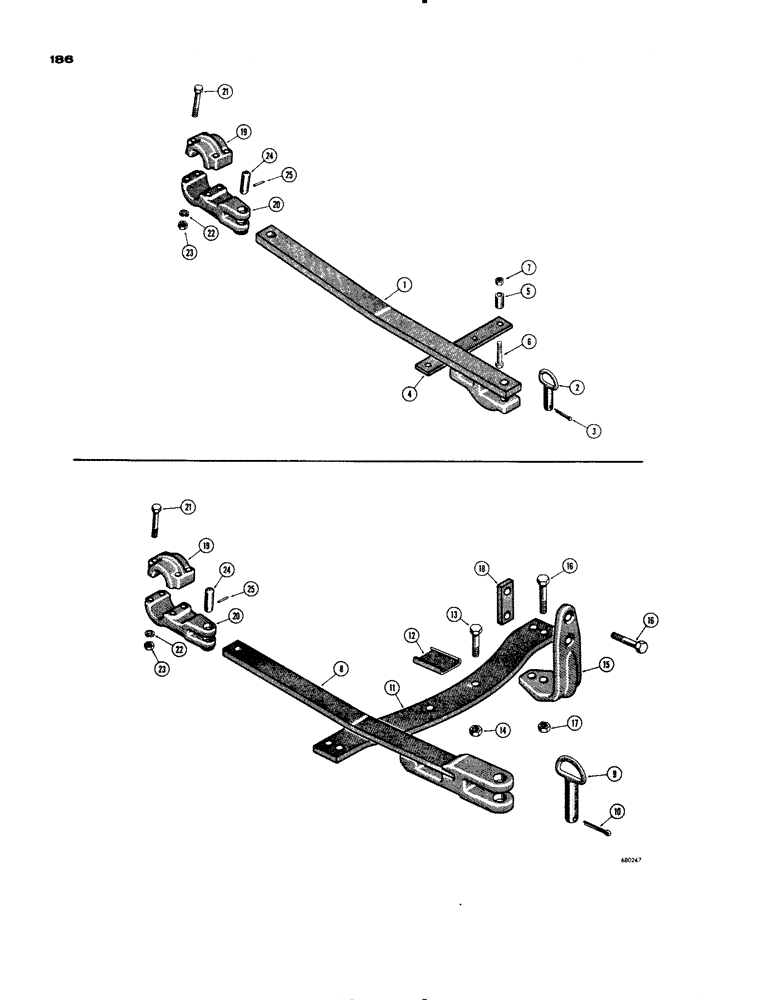

Запчасти Case 1150 (186) - DRAWBARS, STANDARD DRAWBAR (FOR USE ON MODELS WITH RIPPER) (07) - HYDRAULIC SYSTEM

1

74608

DRAWBAR - standard

1шт.

2

R24105

DRAWBAR

PIN - drawbar

1шт.

3

132-152

PIN

- cotter, 1/4" dia. x 1-3/4"

1шт.

4

74602

GUIDE

- drawbar

1шт.

5

D33701

SPACER

- drawbar

2шт.

6

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

7

25-1012

NUT,3/4"-10, G5

2шт.

8

D30060

DRAWBAR, SWINGING

DRAWBAR - heavy duty, for use on dozer, loader and drawbar models with counterweights

1шт.

9

R18049

PIN

- drawbar, heavy duty, for use on dozer, loader and drawbar models with counterweights

1шт.

10

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), , Heavy duty drawbar, for use on dozer, loader and drawbar models with counterweights 3/8" x 2 1/2"

1шт.

11

R18045

GUIDE

- drawbar, heavy duty, for use on dozer, loader and drawbar models with counterweights

1шт.

12

R18132

PLATE

- wear, heavy duty drawbar, for use on dozer, loader and drawbar models with counterweights

1шт.

13

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Heavy duty drawbar, for use on dozer, loader and drawbar models with counterweights Hex, 3/4"-10 x 2", G5

2шт.

14

25-1012

NUT,3/4"-10, G5

Heavy duty drawbar, for use on dozer, loader and drawbar models with counterweights 3/4"-10, G5

2шт.

15

R18044

SUPPORT

- drawbar guide, heavy duty, for use on dozer, loader and drawbar models with counterweights

2шт.

16

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Heavy duty drawbar, for use on dozer, loader and drawbar models with counterweights Hex, 3/4"-10 x 3", G5

8шт.

17

25-1012

NUT,3/4"-10, G5

Heavy duty drawbar, for use on dozer, loader and drawbar models with counterweights 3/4"-10, G5

4шт.

8

R18043

DRAWBAR

- heavy duty, for use on dozer and drawbar without ripper

1шт.

9

R18049

PIN

- drawbar heavy duty, for use on dozer and drawbar without ripper

1шт.

10

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), , Heavy duty drawbar, for use on dozer and drawbar without ripper 3/8" x 2 1/2"

1шт.

11

R18045

GUIDE

- drawbar, heavy duty, for use on dozer and drawbar without ripper

1шт.

12

R18132

PLATE

- wear, heavy duty drawbar, for use on dozer and drawbar without ripper

1шт.

13

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Heavy duty drawbar, for use on dozer and drawbar without ripper Hex, 3/4"-10 x 2", G5

2шт.

14

25-1012

NUT,3/4"-10, G5

Heavy duty drawbar, for use on dozer and drawbar without ripper 3/4"-10, G5

2шт.

15

R18044

SUPPORT

- drawbar guide, heavy duty, for use on dozer and drawbar without ripper

2шт.

16

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Heavy duty drawbar, for use on dozer and drawbar without ripper Hex, 3/4"-10 x 3", G5

8шт.

17

25-1012

NUT,3/4"-10, G5

Heavy duty drawbar, for use on dozer and drawbar without ripper 3/4"-10, G5

4шт.

18

R14501

BUSHING

SPACER - drawbar guide support, heavy duty, for use on dozer and drawbar without ripper

2шт.

19

R17587

CAP

- drawbar attaching bracket

1шт.

20

R17588

BRACKET

- drawbar attaching

1шт.

21

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

HHCS - 5/8" - 11 NC x 4-1/2"

4шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

23

25-1010

NUT,5/8"-11, G5

4шт.

24

70992

PIN

- drawbar mounting

1шт.

25

49869

PIN

- lock, 3/8" dia. x 2"

1шт.
