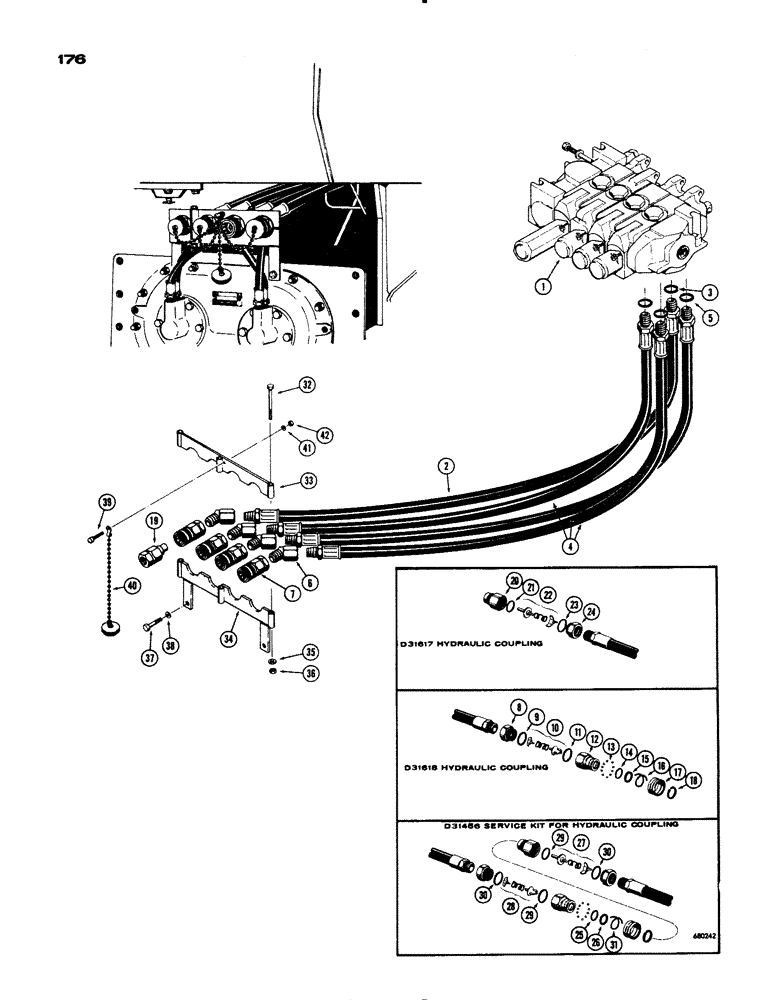

Запчасти Case 1150 (176) - DUAL PULL BEHIND HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D42607

VALVE - dozer control (Parts list Figure 212)

1шт.

2

D39543

HOSE

- valve to L.H. coupling (41" long), Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D39542

HOSE - valve to center and R.H. hoses (40" long), Includes: Ref. 5

3шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

6

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

- street, 45 deg.

4шт.

7

D31618

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female, Includes: Ref. 8 - 18

4шт.

8

D31975

FITTING

- end

1шт.

9

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting

1шт.

10

D35659

LOCK VALVE

VALVE ASSEMBLY - female coupling

1шт.

11

D31984

SEAL

- valve

1шт.

12

D31976

BODY - female coupling

1шт.

13

D31982

KIT

BALL KIT - includes 10 balls

1шт.

D42469

SEAL

KIT - seal, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - "O" ring

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

16

D31979

VALVE SPRING

SPRING - sleeve

1шт.

17

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining

1шт.

18

D31981

RING

- retaining

1шт.

19

D31617

COUPLING, BREAK AWAY

COUPLING - quick disconnnect, male, Includes: Ref. 20 - 24

4шт.

20

D31971

BODY

- male coupling

1шт.

21

D31984

SEAL

- valve

1шт.

22

D35658

VALVE

ASSEMBLY - male coupling

1шт.

23

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting

1шт.

24

D31975

FITTING

- end

1шт.

D31456

KIT

- repair, hydraulic coupling, Includes: Ref. 25 - 31

1шт.

D42469

SEAL

KIT - seal, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - "O" ring

1шт.

26

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

27

D35658

VALVE

ASSEMBLY - male coupling

1шт.

28

D35659

LOCK VALVE

VALVE ASSEMBLY - female coupling

1шт.

29

D31984

SEAL

- valve

2шт.

30

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting

2шт.

31

D31979

VALVE SPRING

SPRING - valve

1шт.

32

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

HHCS - 5/16" - 18 NC x 3-3/4"

3шт.

33

D39533

CLAMP

- hose, upper

1шт.

34

D39972

CLAMP - hose, lower

1шт.

35

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

3шт.

36

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC)

3шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

169-80

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

- machine, fillister head (#8-32 NC x 3/4")

1шт.

40

D39924

PLUG

CAP - dust, dual pull behind

4шт.

41

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

42

129-6

NUT,#8-32

1шт.
