Запчасти Case 1150 (170) - DOZER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

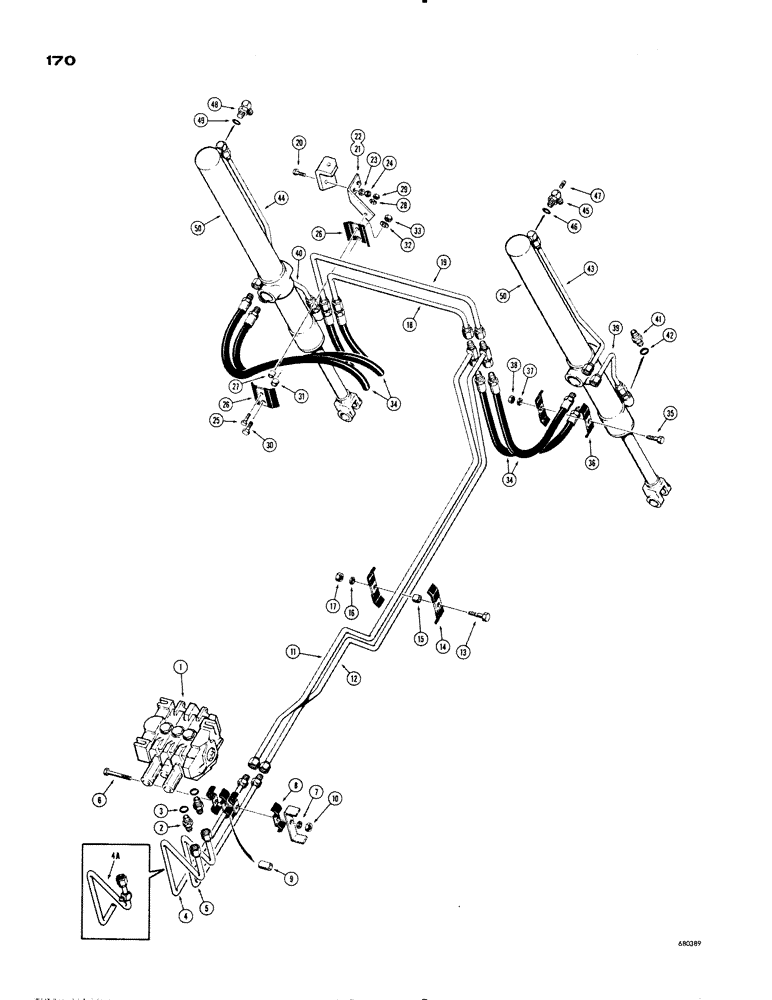

Схема запчастей Case 1150 - (170) - DOZER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM
50
11
10
23
7
18
27
45
33
20
41
26
21
49
15
19
2
32
28
3
37
6
25
26
5
31
16
24
22
9
48
35
50
13
46
4a
34
38
1
40
44
8
43
30
42
39
47
4
12
14
36
29
34
17

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - equipment control (See Figures 182 and 184 for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D36017

TUBE

- valve to cylinder, rod end

1шт.

4a

D45271

TUBE

- valve to cylinder, rod end (Power Angle Tilt Dozers), Serial Range: 7108999-7109298

1шт.

5

D36019

TUBE

- valve to cylinder, closed end

1шт.

6

13-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

HHCS - 5/16" - 18 NC x 4"

1шт.

7

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

8

R15257

CLAMP

- tube

4шт.

9

D34089

SPACER

- clamp

1шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC)

1шт.

11

D39409

TUBE

- valve to cylinder, rod end

1шт.

12

D39506

TUBE

- valve to cylinder, closed end

1шт.

13

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

14

D33316

CLAMP

- tube

2шт.

15

D36040

BUSHING

SPACER - clamp

1шт.

16

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

17

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

18

D44061

TUBE

- valve to L.H. cylinder, rod end

1шт.

19

D44060

TUBE

- valve to L.H. cylinder, closed end

1шт.

20

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

21

D38474

BRACKET - tube clamp, R.H.

1шт.

22

D38473

BRACKET - tube clamp, L.H.

1шт.

23

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

24

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC)

4шт.

25

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

26

R21853

CLAMP

- tube

4шт.

27

D33552

BUSHING

SPACER - clamp

2шт.

28

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

29

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC)

2шт.

30

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

31

D35228

SPACER

- clamp

2шт.

32

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

33

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

34

D38485

HOSE,12.7mm ID x 571.5mm L, SAE 100R2

- valve to cylinder (22-1/2" long)

4шт.

35

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

36

D33316

CLAMP

- hose

4шт.

37

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

38

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC)

2шт.

39

D40158

TUBE

- valve to R.H. cylinder, rod end

1шт.

40

D40159

TUBE

- valve to L.H. cylinder, rod end

1шт.

41

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 42

2шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

43

D40155

TUBE

- valve to R.H. Cylinder, closed end

1шт.

44

D40156

TUBE

- valve to L.H. cylinder, closed end

1шт.

45

R19576

FITTING

ELBOW - 90deg. special, adjustable (5/8" JIC x 5/8" JIC), Includes: Ref. 46

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

47

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT)

1шт.

48

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 deg., Incl. Ref. 49

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

50

REF

INSTRUCTION

CYLINDER - dozer lift (See Figure 202 for cylinders)

2шт.
