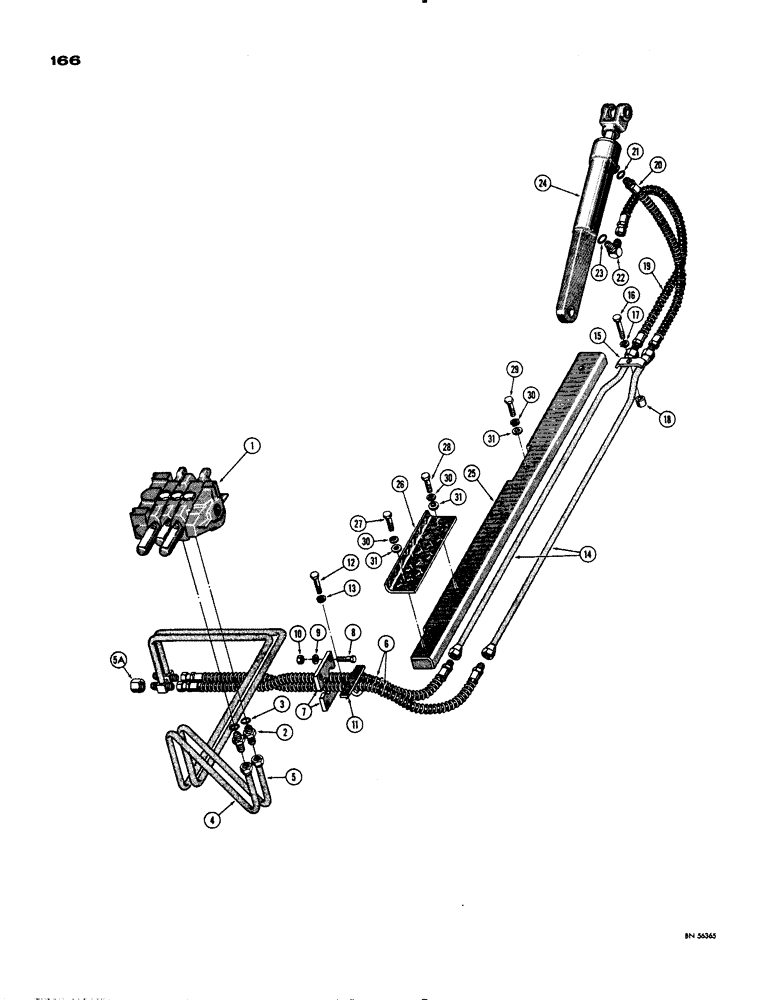

Запчасти Case 1150 (166) - POWER TILT DOZER HYDRAULICS, POWER TILT HYDRAULICS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE - equipment control (See Figures 182 and 184 for proper valve)
1шт.
2
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
ADAPTER - straight male, Incl. Ref. 3
2шт.
3
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
4
D36028
TUBE - valve to cylinder, rear port
1шт.
5
D36030
TUBE - valve to cylinder, front port
1шт.
5a
218-756
CAP,37 Degree, 7/8"-14
Hydraulic fitting 37º, 7/8"-14
2шт.
6
R21784
HOSE
- valve, cylinder (60" long)
2шт.
7
R19592
CLAMP - hose
2шт.
8
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
4шт.
9
95-6
WASHER,3/8"
- standard wrot () 3/8"
4шт.
10
131-6
LOCK NUT,3/8"-16, GC
NUT - hex, lock (3/8" - 16 NC)
4шт.
11
D40386
GUIDE - hose
1шт.
12
13-1016
BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd
1шт.
14
R22560
TUBE
-, Serial Range: valve-cylinder
2шт.
15
D33316
CLAMP
- tube
1шт.
16
14-520
BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5
1шт.
17
92-5
LOCK WASHER,5/16"
1шт.
18
D33552
BUSHING
SPACER - clamp
1шт.
19
D28683
FLEXIBLE HOSE
HOSE - valve to cylinder, rear port (29-1/4" long), Includes: Ref. 21
1шт.
20
D38625
HOSE ASSY.
HOSE - valve to cylinder, front port (23" long), Includes: Ref. 21
1шт.
21
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring, Includes: Ref. 23
1шт.
22
R20839
FITTING
ELBOW - 90 deg. special
1шт.
23
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
24
REF
INSTRUCTION
CYLINDER - power tilt (See Figure 200 for cylinders)
1шт.
25
R22482
GUARD - tube
1шт.
26
74751
PLATE - step
1шт.
27
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS - 1/2" - 20 NF x 1-1/2"
1шт.
28
14-832
BOLT,Hex, 1/2" - 20 x 2", Gr 5
HHCS - 1/2" - 20 NF x 2"
1шт.
29
14-828
BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5
HHCS- 1/2" - 20 NF x 1-3/4"
2шт.
30
92-8
LOCK WASHER,1/2"
4шт.
31
95-8
WASHER,1/2"
- standard wrot 1/2"
4шт.
